Quick Details
-
Type:
-
TIMING BELT
-
Material:
-
Rubber
-
Place of Origin:
-
China
-
Brand Name:
-
Mitsuboshi
-
Top width:
-
16mm-100mm
-
Height:
-
6mm-26mm
-
Color:
-
Black
-
Cord:
-
Fiberglass
-
Application:
-
Agriculture/industrial
-
Top rubber:
-
CR
-
Bottom:
-
CR
-
Feature:
-
High Transmission Efficiency
-
Length:
-
550-3550mm
Quick Details
-
Warranty:
-
1 year
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
-
Standard or Nonstandard:
-
Standard
-
Type:
-
TIMING BELT
-
Material:
-
Rubber
-
Place of Origin:
-
China
-
Brand Name:
-
Mitsuboshi
-
Top width:
-
16mm-100mm
-
Height:
-
6mm-26mm
-
Color:
-
Black
-
Cord:
-
Fiberglass
-
Application:
-
Agriculture/industrial
-
Top rubber:
-
CR
-
Bottom:
-
CR
-
Feature:
-
High Transmission Efficiency
-
Length:
-
550-3550mm
Product Description

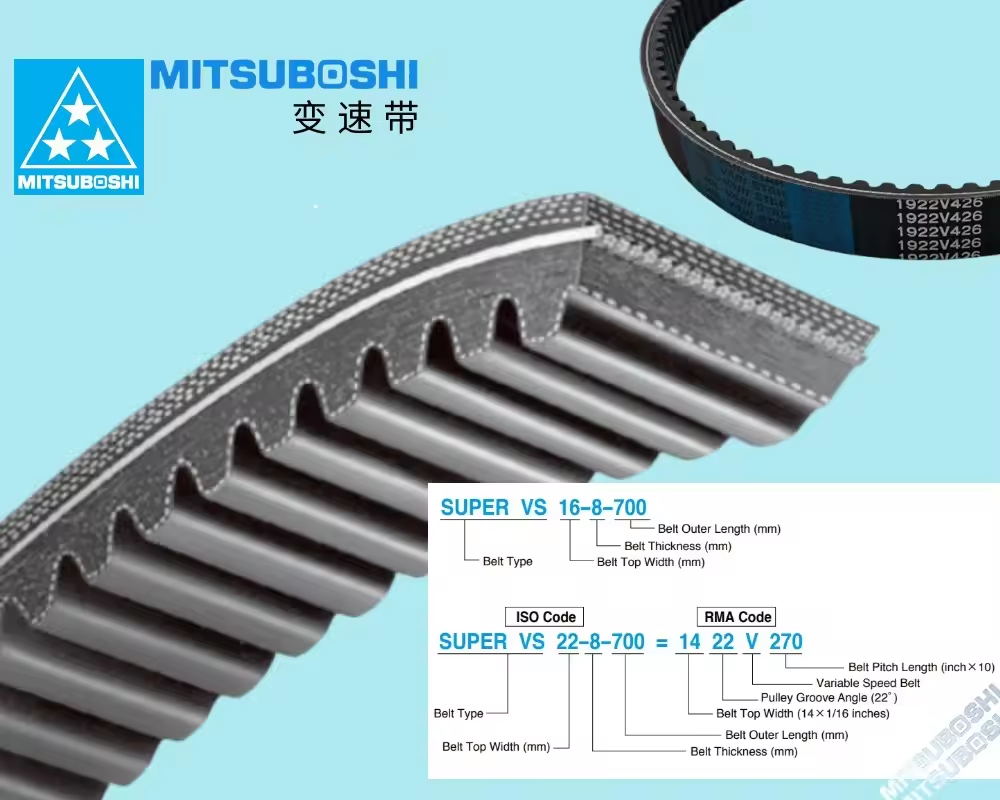

Mitsuboshi Variable Speed Belt
1022V247
A special raw edge cogged type V-belt used for transmissions, a continuously variable transmission belt with excellent lateral pressure resistance and flexibility. It can smoothly follow changes in speed, resulting in superior acceleration. In addition to general industrial applications, they are also used in motorcycles, scooters, and other vehicles equipped with automatic transmission functions.
![](https://cdn.bestsuppliers.com/seo_products_img/unibelting/d6936e625b0c374096d94eefc5490876.jpg!/rotate/180)
Specification
![](https://cdn.bestsuppliers.com/seo_products_img/unibelting/74daf70d89c43bdea2e6cf2eb89b2880.jpg!/rotate/180)
Type
|
Top width(mm)
|
Height(mm)
|
Angle
|
VS17
|
17
|
8.5
|
30°
|
VS18
|
18
|
8.5
|
30°
|
VS19
|
19
|
10
|
30°
|
VS20
|
20
|
10
|
30°
|
Limit Deviation
|
+/-0.6
|
+/-0.6
|
+/-1°
|
Type
|
Top width(b)
|
Pitch width(bp)
|
Height(h)
|
W16
|
17
|
16
|
6
|
W20
|
21
|
20
|
7
|
W25
|
33
|
31.5
|
10
|
W31.5
|
42
|
40
|
13
|
W40
|
52
|
50
|
16
|
W50
|
52
|
50
|
16
|
W63
|
65
|
63
|
20
|
W80
|
83
|
80
|
26
|
W100
|
104
|
100
|
32
|
Type
|
Top width(b)
|
Height(h)
|
Angle(a)
|
1022V
|
16
|
6
|
22°
|
1422V
|
22
|
8
|
22°
|
1922V
|
30
|
11
|
22°
|
2322V
|
36.5
|
12
|
22°
|
2926V
|
46
|
14
|
26°
|
4430V
|
70
|
17
|
30°
|
4836V
|
76
|
22
|
36°
|
6236V
|
100
|
26
|
36°
|
![](https://cdn.bestsuppliers.com/seo_products_img/unibelting/571042e645253f299b9ed4b94f92a9f8.jpg!/rotate/180)
![](https://cdn.bestsuppliers.com/seo_products_img/unibelting/ad89bc430e14323e80097f019ddbafc3.jpg!/rotate/180)
SUPPLY CHARACTERISTICS
1. If tooth form requires absolutely the same, is to open a new mode.
2. Mold limitation ,is not suitable for many kinds of little batch production.
3. Single specification minimum order quantity, at least for one sleeve of the number of nature
Products Display
Why Choose Us
PROPERTIES AND ADVANTAGES
Super strong tensile members
High horsepower capacity
High grade engineered rubber
Longer service life
Fewer tension loss
Temperature range from-50℃to+120℃
Static conductive to ISO1813
Oil,heat,ozone,and abrasion resistant
APPLICATIONS
Motorcycles
Power equipment
Exercise equipment,medical equipment
Automobiles
Farm equipment,harvester
Super strong tensile members
High horsepower capacity
High grade engineered rubber
Longer service life
Fewer tension loss
Temperature range from-50℃to+120℃
Static conductive to ISO1813
Oil,heat,ozone,and abrasion resistant
APPLICATIONS
Motorcycles
Power equipment
Exercise equipment,medical equipment
Automobiles
Farm equipment,harvester
