Quick Details
-
Maximum overall effiency:
-
66%
-
Maximum effiency:
-
more than 85%
-
Static thrust in lbs:
-
140
-
Volts:
-
24
-
Maximum propeller speed:
-
1300rpm
-
Max AMP draw:
-
80/40
-
Total weight in kg:
-
11.0
-
Product Name:
-
trolling boat motor
Quick Details
-
Dimensions (L x W x H) (mm):
-
Requests
-
Input power:
-
1830
-
Propulsion power:
-
1208
-
Maximum overall effiency:
-
66%
-
Maximum effiency:
-
more than 85%
-
Static thrust in lbs:
-
140
-
Volts:
-
24
-
Maximum propeller speed:
-
1300rpm
-
Max AMP draw:
-
80/40
-
Total weight in kg:
-
11.0
-
Product Name:
-
trolling boat motor

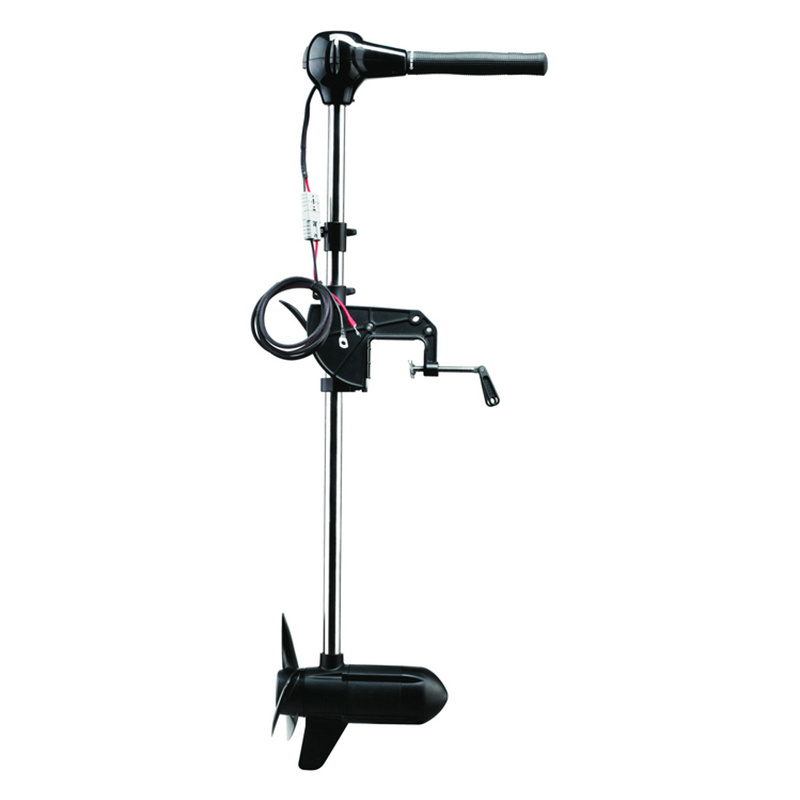

Trolling Motor
PRODUCT TECHNICAL DATA
Input power in watts: 1830
Propulsion power in watts: 1208
Comparable petrol outboards(propulsive power): 5HP
Comparable petrol outboards(thrust): 6HP
Maximum overall effiency in %: 66
Maximum effiency in %: more than 85
Static thrust in lbs: 140
Volts: 24/48
Max AMP draw: 66
Maximum propeller speed in rpm: 1300
Speeds,FWD/REV: variable
Total weight in kg: 11.0
Shaft length in crr: 100/Customizable
Control:Tilt/Fxtend Tiller
Battery gauge: Yes
Temperature protection (110℃,power down to 50%): Yes
Low voltage protection (119.2V,power down to 50%): Yes
Stall protection: Yes
Start protection: Yes
Reverse connection protection: Yes
Q:1.What kind of motors you can provide?
A: Ningbo EMP DC Motor Dynamics Co., Ltd. is a wholly owned foreign venture in China dealing with the design development and manufacture of DC motors of both brushed and brushless. Our products include permanent magnet motors in metric & NEMA frames (brushed and brushless), gear motors and controllers.
Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your detailed requirements and annual quantity, we'll see what offer we can provide.
Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 35-40 days and this time can be shorter or longer based on different model, period and quantity.
Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q:5. Can I get some samples?
A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.
