High Heating Efficiency Ceramic Emitter Infrared Heater with Long Lifetime

High Performance Ceramic Emitter Infrared Heater

Heater for vacuum forming are working under temperature 300°C to 700°C (572°F - 1292°F) producing infrared wavelengths in the range of 2 to 10 micron, which is in the most suitable distance for plastics and many other materials absorb, which makes infrared ceramic heater the most efficient infrared radiant emitter on the market.

A range of aluminized steel reflectors are also available to ensure that most of the radiation generated is reflected forward on to the target area.

Our Infrared Heaters are designed to produce maximum output in form of heat energy. They are constructed by a firmly burnt-in heating coil. The heater incorporates highly heatproof resistance wire that provides safety against any damage.
Longer service life is achieved since the resistance of the heaters is made to remain constant over the whole temperature range. The glaze used in this heater has excellent radiation properties therefore the radiation efficiency is also very high.

Construction and material of Ceramic Emitter Infrared Heater

Insulator: High thermal shock resistance ceramic material

Resistance wire: High quality Ni80Cr20

Glaze Layer: good radiation metal oxide materials with moderate additives to increase radiation intensity and enhance the suitability of the glaze.

Features of heater for Ceramic Emitter Infrared Heater

1.     Radiation feature: The monochromatic radiation rate of our infrared ceramic heater reaches 90%, and the reverse radiation rate is larger than 83%.

2.     Thermal response time: Less than 20 minutes from the room temperature to the set temperature

3.     Durability: The surface keeps smooth after five times heating and cooling exchanges.

4.     The radiation surface temperature uniformity: ≤15%

5.     Power error: ≤5%

6.     Cold insulation resistance: 500V mega meter >2m

7.     Thermal insulation resistance: 500V megameter >0.5m

8.     The service life of >3000 hours

Applications of Ceramic Emitter Infrared Heater

In Thermoforming & Vacuum Forming Machines

In PVC Pipe Belling / Socketing Machines

In Hot Stamping Machines

As Heat Therapy Equipment

In Shrink Packaging

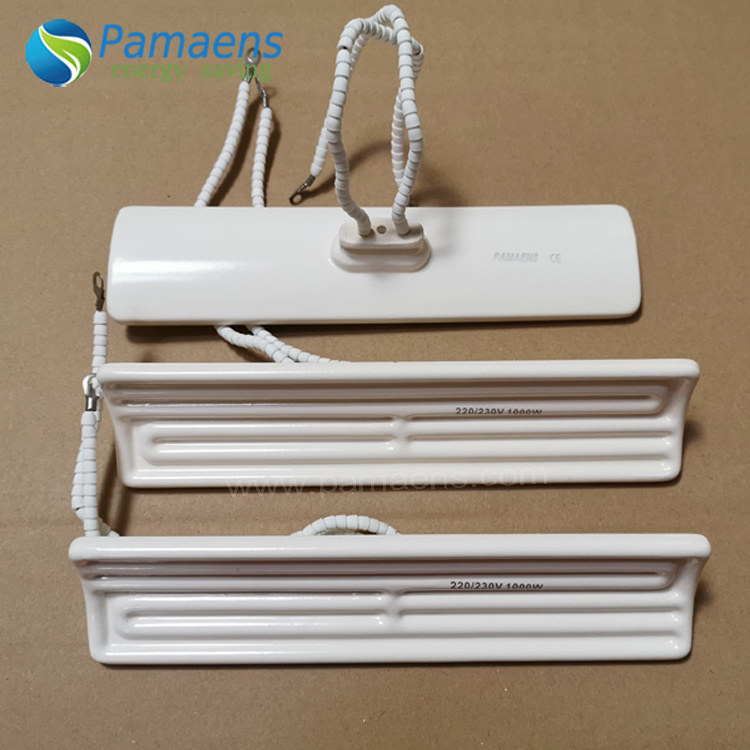

Products Showcase of Ceramic Emitter Infrared Heater

PACKAGE:

Standard export carton packing with separate blister inner package.

DELIVERY TIME:

3-15 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
