Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
panchao
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
5001000 KG
-
After-sales Service Provided:
-
Online support
-
Name:
-
IQF Machine Fruit Quick Freezing Equipment Freezer
-
Cooling system:
-
Liquid Nitrogen
-
Material:
-
Stainless Steel
-
Function:
-
Air Blast Quick Freezer
-
Temperature Control:
-
Automatic Control
-
Capacity:
-
100-5000kg/h
-
Quick freezer type:
-
Nitrogen blast
-
Certification:
-
ISO9001:2008
-
Application:
-
Lab, Medical, animal farm, chemical
Quick Details
-
Voltage:
-
380V/220V
-
Power:
-
450-1200W
-
Cooling Capacity:
-
Strong and blast
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
panchao
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
5001000 KG
-
After-sales Service Provided:
-
Online support
-
Name:
-
IQF Machine Fruit Quick Freezing Equipment Freezer
-
Cooling system:
-
Liquid Nitrogen
-
Material:
-
Stainless Steel
-
Function:
-
Air Blast Quick Freezer
-
Temperature Control:
-
Automatic Control
-
Capacity:
-
100-5000kg/h
-
Quick freezer type:
-
Nitrogen blast
-
Certification:
-
ISO9001:2008
-
Application:
-
Lab, Medical, animal farm, chemical
| IQF Machine Fruit Quick Freezing Equipment Freezer | |
|
IQF Machine Fruit Quick Freezing Equipment Freezer |
Drawing of Tunnel Nitrogen Freezer Machinery:
|
1. mesh belts for transmission A. The mesh belt is made of USU304 stainless steel, which is strong and durable and has a long service life. B. Mesh belt drive: The speed of the mesh belt is steplessly adjusted by imported frequency converters, and the freezing time is adjustable from 6 to 60 minutes, which can be adapted to the processing of various frozen products. |
|
2. Evaporator A. The aluminum tube is sleeved with a whole aluminum gold fin, using advanced tube expansion technology, high heat exchange efficiency, its cold output is 15% higher than that of ordinary evaporators, and the temperature drops quickly. B. The fins are large pieces of aluminum gold, which are fast and clean, easy to clean, and have no sanitary corners. C. The height of the air inlet surface of the evaporator is enlarged, the air inlet area is large, and frost is not easy to form on the evaporator. D. The evaporator is designed with large oncoming sheet pitch and variable sheet pitch, and the sheet pitch on the side of the air inlet side is increased to extend the working time. E. The evaporator has undergone multiple pressure tests of 22kgf/cm2. |
|
3. Fan system A. It is equipped with a special three-proof motor for cold storage at low temperature, which can continuously and normally run at -600C. It is equipped with imported bearings (filled with low-temperature grease) and has a long service life. B. Special axial flow fan for low-temperature quick-knitting, with large air volume and low energy consumption design, and reasonable matching with the evaporator, which is conducive to the rapid freezing of frozen products. C. The new type of air guide device makes the low-temperature cold air evenly distributed and improves the freezing efficiency. |
|
4. Insulation library board A. The double-sided stainless steel plate of the library board, the surface is treated with ribs, has the characteristics of high strength, good heat preservation, and beautiful appearance. B. Rigid polyurethane heat preservation, good heat preservation performance, no frosting at -450C low temperature, no pretense. The foaming density is 42kg/m3. |
|
5. Electric control box A. Stainless steel shell electric box, with automatic display of inlet and outlet temperature. B. Electrical components are generally Chint or imported LG, and the freezer motor is equipped with a frequency converter and frequency conversion speed regulation. C. Large PLC LCD screen, clear operation and intelligent temperature control. |

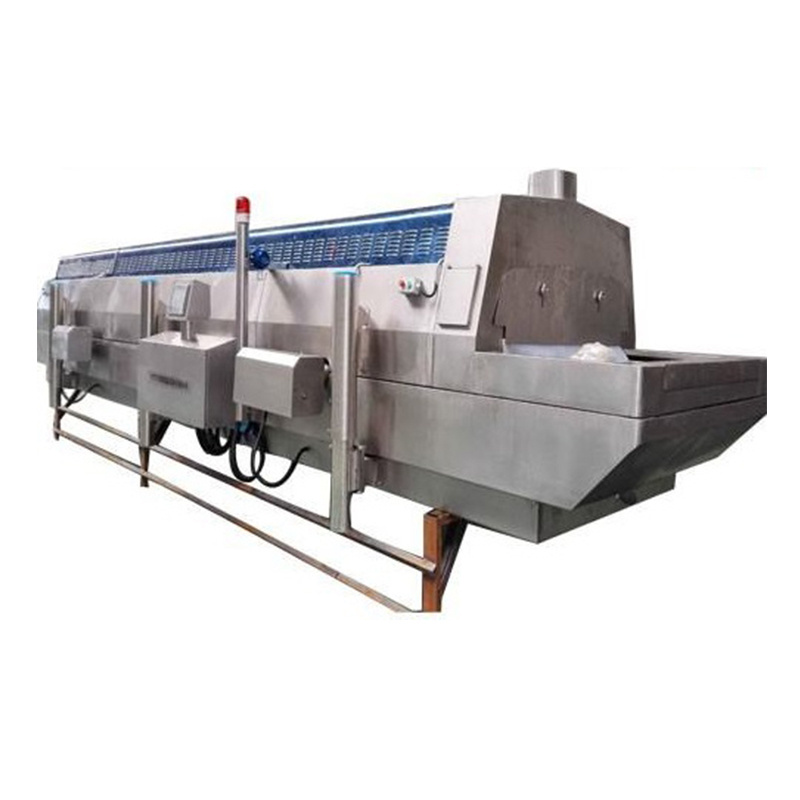

IQF Machine Fruit Quick Freezing Equipment Freezer
|
Tunnel Nitrogen Freezer Machinery |
|||
|
Model |
Dimension ( L*W*H ) |
Net belt size ( L/W ) |
Freezing min |
|
ZDYT-YDS-0.8/6 |
6.5*1.72*2.1 |
6/0.8 |
3-20 |
|
ZDYT-YDS-0.8/9 |
9.5*1.72*2.1 |
9/0.8 |
3-40 |
|
ZDYT-YDS-0.8/14 |
14.5*1.72*2.1 |
14/0.8 |
3-65 |
|
ZDYT-YDS-1.25/6 |
6.5*2.17*2.1 |
6/1.25 |
3-20 |
|
ZDYT-YDS-1.25/9 |
9.5*2.17*2.1 |
9/1.25 |
3-40 |
|
ZDYT-YDS-1.25/14 |
14.5*2.17*2.1 |
14/1.25 |
3-65 |
|
General specification data |
|||
|
Inlet height |
900mm |
||
|
Maximum height of frozen products |
100mm |
||
|
Voltage |
380V/220V |
||
|
Gas Vent pipe |
300mm |
||
1.
We provide you the friendly English User manual or operating videos for free.
2.
24 hours technical support by email or calling.
3.
Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.
Free training to make sure you master the operating of our products.
5.
Once sent, we will track the product for you every two days until you get the product. When you receive the goods, test and give me feedback. If you have any questions about this issue, please contact us and we will provide you with a solution.
IQF Machine Fruit Quick Freezing Equipment Freezer
FAQ
1.What is the minimum order quantity (MOQ) of your products?
MOQ;1 pieces
2.How about warranty of your product?
Warranty of our product is 12 months.
3.Do you accept OEM order?
Yes,of course,our factory can make a custom for you.
4.What about your terms of delivery and delivery day?
EXW,FOB,CFR,CIF,DDU.
Normally your order will be sent within 3 days;and for customer order products
in great quantity,7to 15 days.Generally 20-30 days for customer OEM products.
5.How about terms of payment?
T/T 30% as deposit,and 70% before delivery.We'll show you the products and packages
before you pay the balance.
6.What is your terms of packing?
Generally,we pack our goods in neutral white boxes and brown cartons.If you
have legally registered patent,we can pack the goods in your branded boxes after
getting your authorization letters.
7.What is your sample policy?
We can send you the sample for you testing before placing the final order.
8.Do you test all your goods before delivery?
Yes,we have 100% test before delivery.
