Quick Details
-
Features:
-
6 Axes
-
Warranty:
-
1 year
-
Dimension(L*W*H):
-
1820*960*950
-
Power:
-
1500
-
Voltage:
-
380
-
Weight (KG):
-
150 KG
-
Marketing Type:
-
New Product 2022
-
Product name:
-
Manipulator
-
Color:
-
Blue
-
Number of Axes:
-
6-axis
-
Key Selling Points:
-
High-accuracy
-
Usage:
-
Welding
-
Feature:
-
Easy Operation
-
Advantage:
-
High Speed Stability
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
YASKAWA
-
Application:
-
WELDING
-
Features:
-
6 Axes
-
Warranty:
-
1 year
-
Dimension(L*W*H):
-
1820*960*950
-
Power:
-
1500
-
Voltage:
-
380
-
Weight (KG):
-
150 KG
-
Marketing Type:
-
New Product 2022
-
Product name:
-
Manipulator
-
Color:
-
Blue
-
Number of Axes:
-
6-axis
-
Key Selling Points:
-
High-accuracy
-
Usage:
-
Welding
-
Feature:
-
Easy Operation
-
Advantage:
-
High Speed Stability
Overview

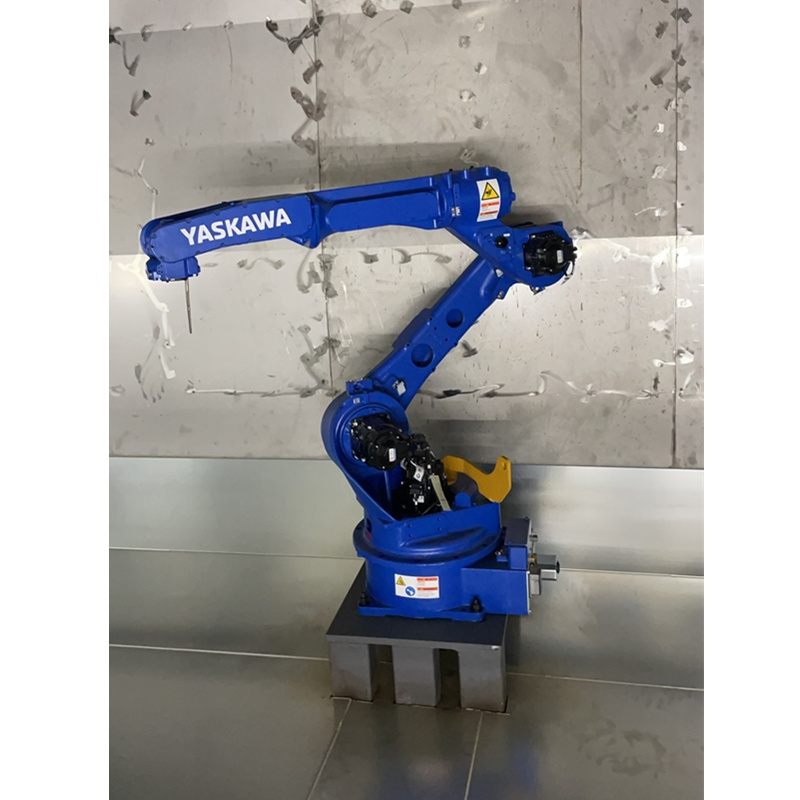

The six-axis MOTOMAN AR1440 robot provides high performance to achieve optimal results in extremely difficult conditions.
With a high payload of up to 12 kg and a wide working range of 1,440 mm this robot supports welding of bulky workpieces and mounting a broad variety of heavy welding and cutting equipment.
Technical Details
|
NUMBER OF AXES
|
6
|
|
PAYLOAD
|
12 kg
|
|
MAX. WORKING RANGE
|
1,440 mm
|
|
REPEATABILITY
|
0.02 mm
|
|
WEIGHT
|
150 kg
|
|
POWER SUPPLY
|
1.5 kVA
|
|
S AXIS
|
260 °/sec
|
|
L AXIS
|
230 °/sec
|
|
U AXIS
|
260 °/sec
|
|
R AXIS
|
470 °/sec
|
|
B AXIS
|
470 °/sec
|
|
T AXIS
|
700 °/sec
|
|
MOUNTING OPTIONS
|
Ceiling, Wall, Floor
|
Product Description
|
Product model
|
AR1440
|
|
color
|
|
