Quick Details
-
Product name:
-
Metallic Gaskets
-
Standard:
-
ASTM/DIN/JIS/BS
-
Certificate:
-
ISO 9001
-
Material:
-
stainless steel
-
Color:
-
sliver/blue/GI
-
Specification:
-
1/2" to 36"
-
MOQ:
-
1 Piece
-
Type:
-
Spiral Wound Gasket
-
Hardness:
-
90BHN, 120BHN, 160BHN, 230 BHN
-
Packing:
-
Wooden Pallet
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
KM
-
Model Number:
-
KM-21
-
Product name:
-
Metallic Gaskets
-
Standard:
-
ASTM/DIN/JIS/BS
-
Certificate:
-
ISO 9001
-
Material:
-
stainless steel
-
Color:
-
sliver/blue/GI
-
Specification:
-
1/2" to 36"
-
MOQ:
-
1 Piece
-
Type:
-
Spiral Wound Gasket
-
Hardness:
-
90BHN, 120BHN, 160BHN, 230 BHN
-
Packing:
-
Wooden Pallet

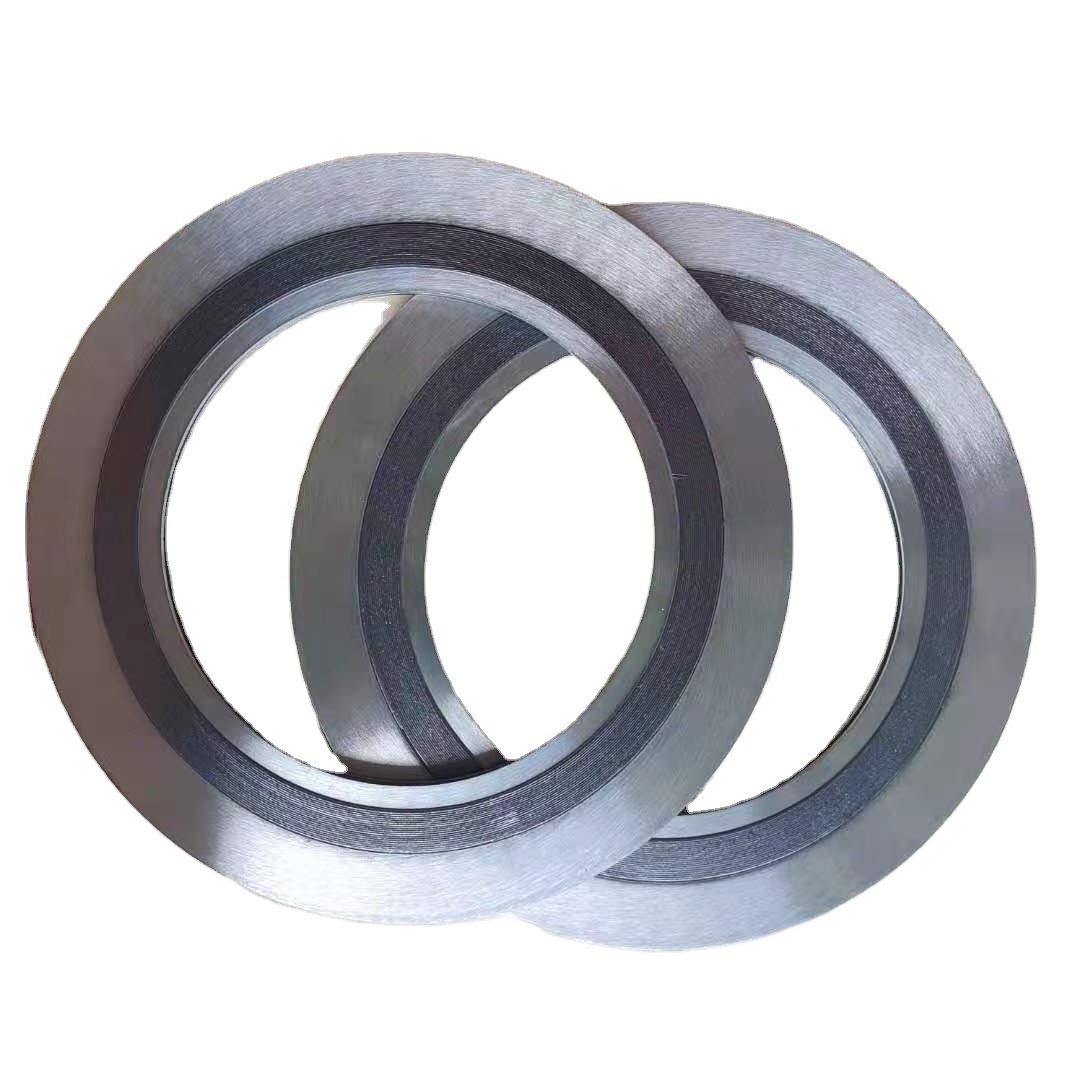

Spiral Wound Gaskets
Spiral Wound Gaskets Specification
Standards : ASME B16.20
Size : 1/2 NB - 24 NB
Gasket Thickness : 3.2mm, 4.5mm, 6.4mm,7.3mm
Pressure - ASME B16.20 150, 300, 400, 600, 900, 1500, 2500
Outer and Inner ring Material : Carbon Steel, Stainless Steel 304/316, Monel, Nickel, Titanium, Inconel 600/625, etc.
Temperature Range: -400°F to +875°F
Maximum Pressure: 2000 PSI
High Pressure: 4500 PSI
Manufactured Standards: ASME B 16.20, ASME B 16.5, BS1560, ASME B 16.47 A (B), BS EN 1092, DIN, JIS, and NF, etc.
Value Added Services : Hot Rolling, Cold Rolling, Galvanizing, Heat Treatment, Tempering, Electro Polishing, Threading, Sand Blasting, Soldering
