Quick Details
-
Voltage:
-
DEPENDS
-
Power:
-
Depends
-
Weight:
-
1500 KG
-
Dimension(L*W*H):
-
L 3900mm
-
Application:
-
Steam Heating Sterilizer Machine Food Sterilization Steam Retort
-
After-sales Service Provided:
-
Overseas Service Provided
-
Keywords:
-
Steam Air Retort
-
Product name:
-
Autoclave For Food Sterilizer
-
Function:
-
High Temperature High Pressure Sterilizing
-
Sterilizing way:
-
Steam and Air Sterilization
-
Material:
-
Stainless Steel SUS304
-
Working temperature:
-
110-135 Degree Centigrade
-
Control system:
-
PLC+ Touch Screen
-
Heating Method:
-
Steam boiler
Quick Details
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
SHN
-
Brand Name:
-
DTS
-
Voltage:
-
DEPENDS
-
Power:
-
Depends
-
Weight:
-
1500 KG
-
Dimension(L*W*H):
-
L 3900mm
-
Application:
-
Steam Heating Sterilizer Machine Food Sterilization Steam Retort
-
After-sales Service Provided:
-
Overseas Service Provided
-
Keywords:
-
Steam Air Retort
-
Product name:
-
Autoclave For Food Sterilizer
-
Function:
-
High Temperature High Pressure Sterilizing
-
Sterilizing way:
-
Steam and Air Sterilization
-
Material:
-
Stainless Steel SUS304
-
Working temperature:
-
110-135 Degree Centigrade
-
Control system:
-
PLC+ Touch Screen
-
Heating Method:
-
Steam boiler
Short Description:

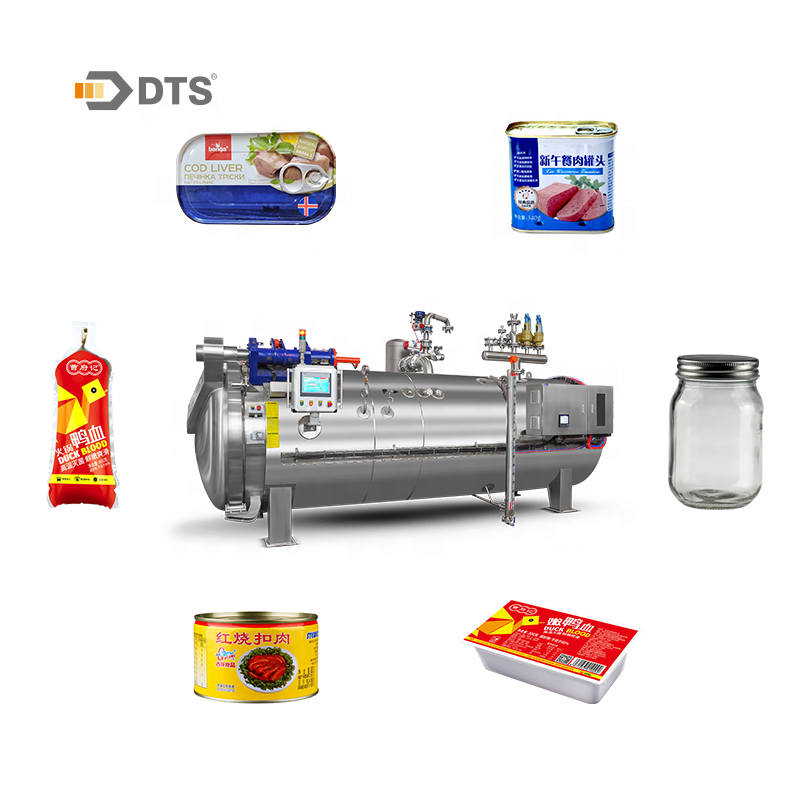

By adding a fan on the basis of steam sterilization, the heating medium and the packaged food are in direct contact and forced convection, and the presence of air in the sterilizer is allowed. The pressure can be controlled independently of the temperature. The sterilizer can set multiple stages according to different products of different packages.
Product Description
Advantage
1.Accurate temperature control, excellent heat distribution
The temperature control module developed by DTS has up to 12 stages of temperature control, and the step or linearity can be selected according to different product and process recipe heating modes, so that the repeatability and stability between batches of products are maximized well, the temperature can be controlled within ±0.3℃.
No need to heat other media (such as hot water), the heating rate is very fast.
2.Perfect pressure control, suitable for a variety of packaging forms
The pressure control module developed by DTS continuously adjusts the pressure throughout the whole process to adapt the internal pressure changes of the product packaging, so that the degree of deformation of the product packaging is minimized, regardless of the rigid container of tin cans, aluminum cans or plastic bottles, plastic boxes or flexible containers can be easily satisfied, and the pressure can be controlled within ±0.05Bar.
3.Compliant with FDA/USDA certificate
DTS has experienced thermal verification experts and is a member of IFTPS in the United States. It fully cooperates with FDA-approved third-party thermal verification agencies. The experience of many North American customers has made DTS familiar with FDA/USDA regulatory requirements and cutting-edge sterilization technology.
4.Energy saving and environmental protection
The steam is directly heated, no exhaust is needed, and the minimum steam loss.
Low noise, create a quiet and comfortable working environment.
Pruoduction Process
Product Application
Production Application:
1.Dairy products: tin cans; plastic bottles, cups; flexible packaging bags
2.Vegetables and fruits (mushrooms, vegetables, beans): tin cans; flexible packaging bags; Tetra Recart
3.Meat, poultry: tin cans; aluminum cans; flexible packaging bags
4.Fish and seafood: tin cans; aluminum cans; flexible packaging bags
5.Baby food: tin cans; flexible packaging bags
6.Ready-to-eat meals: pouch sauces; pouch rice; plastic trays; aluminum foil trays
7.Pet food: tin can; aluminum tray; plastic tray; flexible packaging bag;
