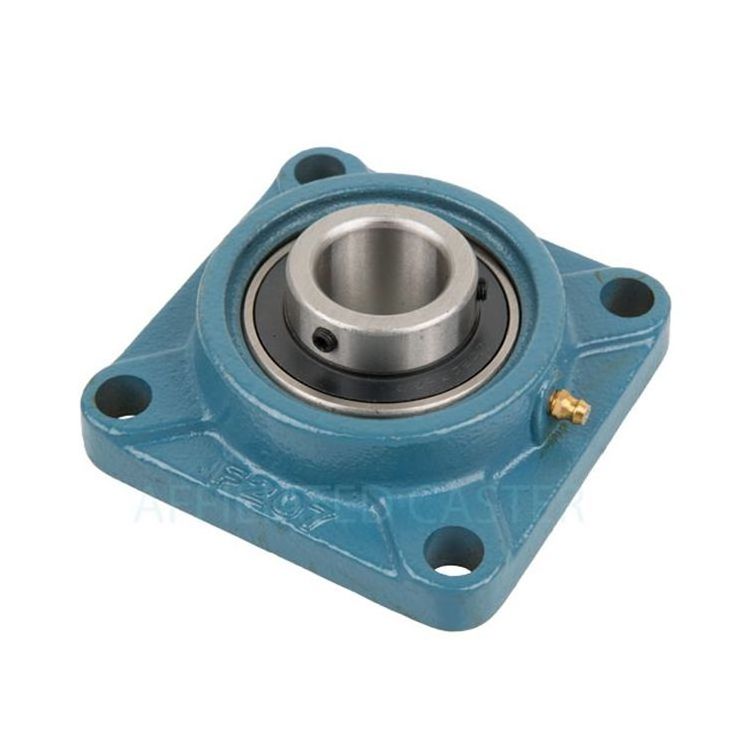

UCF211 Bearing UC211 Insert Ball Bearing With Housing F211 Bearing units UCF211 Bearing housing unit
FOB Reference Price:
Get Latest Price
≥1 Sets
US $12
≥1000 Sets
US $11
Free Inquiry
Customized Request
Contact us For product pricing, customization, or other inquiries:
Contact Us
Product Details
{{item.text}}
Quick Details
Place of Origin:
Shandong, China
UCF211 Bearing Material:
Chrome Steel GCR15 and Casting Iron
Certification:
ISO9001:2008
Housing material:
Cast Iron HT200 for F211 Housing
UC211 Insert Ball Bearing Brand:
SAIFAN Brand or OEM for UCF211 Bearing
Bearing Precision:
ABEC1, ABEC3, ABEC5
Model:
Pillow Block Bearing UC211
Hardness:
60-65HRC for UC211 Insert Ball Bearing
Housing F211 Service:
OEM & ODM
Application:
Agricultural Machinery
Delivery Time:
3-5 days for Housing F211
Quick Details
Applicable Industries:
Farms
Brand Name:
SAIFAN OR OEM
Model Number:
UCF211
Place of Origin:
Shandong, China
UCF211 Bearing Material:
Chrome Steel GCR15 and Casting Iron
Certification:
ISO9001:2008
Housing material:
Cast Iron HT200 for F211 Housing
UC211 Insert Ball Bearing Brand:
SAIFAN Brand or OEM for UCF211 Bearing
Bearing Precision:
ABEC1, ABEC3, ABEC5
Model:
Pillow Block Bearing UC211
Hardness:
60-65HRC for UC211 Insert Ball Bearing
Housing F211 Service:
OEM & ODM
Application:
Agricultural Machinery
Delivery Time:
3-5 days for Housing F211
UCF211 Bearing UC211 Insert Ball Bearing With Housing F211 Bearing units UCF211 Bearing housing unit
UCF211 Bearing Details
Brand
UCF211 Pillow Block Bearing
F204
Item
UCF211 Bearing UC211 Insert Ball Bearing With Housing F211 Bearing units UCF211 Bearing housing unit
Ball Bearing seals
ZZ 2RS
Material
GCr15 steel,carbon steel,stainless steel etc.
Precision
P0,P2,P5,P6,P4
Clearance
C0,C2,C3,C4,C5
Bore size
0-200 mm
outer diameter
0-400mm
Cage type
brass;steel plate,nylon,aluminium alloy etc.
Seal type
open,sealed(ZZ,RS,2RS)
Bearings Feature
Long-life with high quality
Low-nosie with strict controlling the quality of SaiFan bearing
High-load by the advanced high-technical design
Competitive price, which has the most valuable
OEM service offered, to meet the customers'requirements
Application
gearbox,auto,reduction box,engine machinery,mining machinery,bicycles,etc Insert Bearing Units With Housing
Bearing Package
Pallet,wooden case,commercial packaging or as customers' requirement.
Price terms
FOB,CFR,CIF,EXW
delivery time
3-5 days acccording the quantity
UC211 Insert Ball Bearing Photos
1.Specifications :
Saifan Pillow Block Bearing
UCF or NP Series Plummer / Pillow Housings:
Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits:
Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
2.Application :
Economical housed bearing solution
Light and heavy industrial use Pillow Block Bearing
Agricultural and Automotive Pillow Block Bearing
Conveyor and Fan assemblies Pillow Block Bearing
Fabricated machine assembly Pillow Block Bearing
Great value quality parts dispatched the same day
3.Features :
1. With tight set screw insert class UC bearing Pillow Block Bearing ;
2. Insert UK type bearing with conical hole;
Pillow block bearing is deep groove ball bearing grease seal type bearing with different shapes and combination of high precision components products.Bearing assembly can pass a few bolts to install directly on the body of the mechanical device, with the heart function, can be the supplement of the grease, etc., is a kind of installation is very simple products.
Pillow block bearingUSES: outer spherical bearing is suitable for the required equipment and parts of simple situation, such as used for agricultural machinery, transportation systems or on construction machinery
4.Housing F211 Related Pillow Block Bearing Catalogue:
UCF211 Bearing UC211 Insert Ball Bearing With Housing F211
Model NO.
Length(mm)
Width(mm)
Thickness(mm)
Weight(kg)
UCF201 Bearing
127
38
60.7
0.760
UCF202 Bearing
127
38
60.7
0.740
UCF203 Bearing
127
38
60.7
0.720
UCF204 Bearing
127
38
64
0.700
UCF205 Bearing
140
38
69.5
0.760
UCF206 Bearing
160
44
82
1.250
UCF207 Bearing
167
48
92
1.550
UCF208 Bearing
180
52
98
1.900
UCF209 Bearing
189
54
106
2.200
UCF210 Bearing
204
57
112
2.750
UCF211 Bearing
217
60
125
3.300
UCF212 Bearing
238
66
137
4.700
UCF213 Bearing
262
70
149
5.600
UCF214 Bearing
266
72
155
6.600
UCF215 Bearing
274
74
162
7.300
UCF216 Bearing
292
78
174
9.000
UCF217 Bearing
310
83
186
10.80
UCF218 Bearing
326
88
198
13.00
UCF220 Bearing
380
95
225
16.00
UCF305 Bearing
175
45
85
1.400
UCF306 Bearing
180
50
95
1.800
UCF307 Bearing
210
56
106
2.800
UCF308 Bearing
220
60
116
3.080
UCF309 Bearing
245
67
129
4.100
UCF310 Bearing
275
75
143
6.000
UCF311 Bearing
310
80
154
7.400
UCF312 Bearing
330
85
165
9.400
UCF313 Bearing
340
90
176
10.000
UCF314 Bearing
360
90
187
12.000
UCF315 Bearing
380
100
198
14.000
UCF316 Bearing
400
110
210
18.000
UCF317 Bearing
420
110
220
20.000
UCF318 Bearing
430
110
220
24.000
UCF319 Bearing
470
120
250
26.500
UCF320 Bearing
490
120
275
34.300
UCF321 Bearing
490
120
280
36.600
UCF322 Bearing
520
140
300
42.500
UCF324 Bearing
570
140
320
53.500
UCF326 Bearing
600
140
355
72.100
UCF328 Bearing
620
140
390
89.100
SaiFan Advantage
SOLUTION
– At the beginning, we will have a communication with our customers on their demand, then our engineers will work out an optimum solution based on the customers’ demand and condition.
PRODUCTION
– Running in accordance with ISO 9001 quality system, the advanced production equipments, sophisticated processing technology, strict quality management system, skilled workers and innovative technical team, make our bearings in continuous quality improvement & technology development.
QUALITY CONTROL
(Q/C)
- In accordance with ISO standards, we have professional Q/C staff, precision testing instruments and internal inspection system, the quality control is implemented in every process from material receiving to products packaging to ensure our bearings quality.
PACKAGE
– Standardized export packing and environment-protected packing material are used for our bearings, the custom boxes, labels, barcodes etc. can also be provided according to our customer’s request.
LOGISTIC
– Normally, our bearings will be sent to the customers by ocean transportation due to its heavy weight, airfreight, express is also available if our customers need.
WARRANTY
– We warrant our bearings to be free from defects in material and workmanship for a 12 months period from the shipping date, this warranty is voided by non-recommended use, improper installation or physical damage.
About US
High Quality Bearings, Choose Saifan.
Jinan Saifan Bearing Co., Ltd is a professional bearing manufacture located in Jinan, Shandong.
We are established in year 2005 and we have 10 years experience in bearing manufacture.
We mainly produce wheel hub bearings, ball bearings, roller bearings etc.
Our Workshop
Production
Saifan Exhibition
Express & Payment
FAQ
Q:What’s your after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.
Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and sizes in different brands, we also customize circuit board & packaging box as per your requirements.
Q:What’s the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q:How long is the lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.
Q:Do you offer free samples?
A: Yes we offer free samples to distributors and wholesalers, however customers should bear freight.
We DO NOT offer free samples to end users.
Q:How to place orders?
A: 1. Email us the model, brand and quantity, consignee information, shipping way
and payment terms;
