Quick Details
-
Brand Name:
-
DARHMMY
-
Material:
-
Advanced PVC
-
Product name:
-

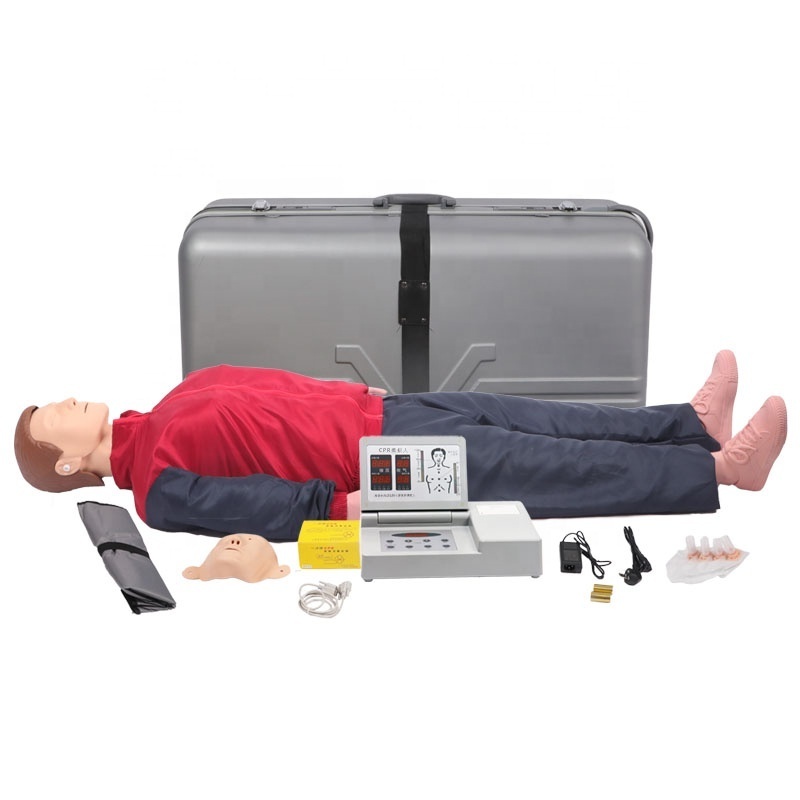

Multi CPR training manikin
-
Certificate:
-
ISO
-
Usage:
-
CPR Training
-
OEM:
-
LOGO
-
Application:
-
Medical School Teaching
-
Packing:
-
Carton Box
-
Function:
-
Educational Models
-
Color:
-
-
Categories:
-
Medical Training Manikin
Quick Details
-
Type:
-
Manikin
-
Model Number:
-
BOU/CPR490
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
DARHMMY
-
Material:
-
Advanced PVC
-
Product name:
-
Multi CPR training manikin
-
Certificate:
-
ISO
-
Usage:
-
CPR Training
-
OEM:
-
LOGO
-
Application:
-
Medical School Teaching
-
Packing:
-
Carton Box
-
Function:
-
Educational Models
-
Color:
-
-
Categories:
-
Medical Training Manikin
Products Description
Executive Standard: American Heart Association (AHA) 2020 Guidelines for International Cardiopulmonary Resuscitation(CPR)&Cardiovascular First Aid (ECC)
Features:
■ The simulated human has obvious anatomical features, real hand feeling, uniform skin color, realistic shape and beautiful
appearance.
■ Simulated vital signs:
• In the initial state, the pupil of the simulated human LCD dilates and the carotid artery has no pulsation.
• During compression, simulate the passive pulsation of human carotid artery, and the pulsation frequency is consistent with the
compression frequency.
• After successful rescue, the simulated human LCD pupil returned to normal and the carotid artery started to beat autonomously.
• LCD pupil zoom and carotid pulsation can be turned on and off by the switch.
■ Artificial respiration and external cardiac compression are available. The standard airway can be opened, and the airway
indicator light turns on.
■ Two operation modes: CPR training and mode assessment are available.
• Mode 1: CPR training, including pressing and blowing training.
• Mode 2: mode assessment: within the set time, according to the 2020 International Cardiopulmonary Resuscitation Standard,
correctly press and blow the air at a ratio of 30:2 to complete 5 cycles.
appearance.
■ Simulated vital signs:
• In the initial state, the pupil of the simulated human LCD dilates and the carotid artery has no pulsation.
• During compression, simulate the passive pulsation of human carotid artery, and the pulsation frequency is consistent with the
compression frequency.
• After successful rescue, the simulated human LCD pupil returned to normal and the carotid artery started to beat autonomously.
• LCD pupil zoom and carotid pulsation can be turned on and off by the switch.
■ Artificial respiration and external cardiac compression are available. The standard airway can be opened, and the airway
indicator light turns on.
■ Two operation modes: CPR training and mode assessment are available.
• Mode 1: CPR training, including pressing and blowing training.
• Mode 2: mode assessment: within the set time, according to the 2020 International Cardiopulmonary Resuscitation Standard,
correctly press and blow the air at a ratio of 30:2 to complete 5 cycles.
Functions Of Controller Display Screen:
■ Electronic monitoring: the electronic indicator light displays the open and pressed parts of the monitoring airway. The correct
and wrong counts of artificial respiration and chest compressions.
■ Voice prompt: Chinese voice prompt throughout the training and assessment can be turned on and off, and the volume can be
adjusted.
■ Barcode display air blowing volume: the correct air blowing volume is 500~600ml-1000ml:
• When the air blowing volume is too small, the bar code is yellow.
• When the air blowing volume is appropriate, the barcode is green.
• When the air blowing volume is too large, the barcode is red.
• The tidal volume blown in is too fast or too large, resulting in the indication of gas entering the stomach; Digital counting
display; Error language prompt;
■ The bar code displays the pressing depth, and the correct pressing depth is 5-6cm:
• When the pressing depth is too small, the barcode is yellow.
• When the pressing depth is appropriate, the barcode is green.
• When the pressing depth is too large, the barcode is red.
■ The correct rate of operation can be set automatically.
■ You can set the operation time by yourself, in seconds.
■ Operating frequency: the 2020 standard is 100-120 times/minute, and the value can also be set by yourself.
■ Power supply status: 220V power supply is adopted, and 12V power supply is output after voltage stabilization by voltage
regulator. (Lithium battery can be added for direct use without external power supply)
and wrong counts of artificial respiration and chest compressions.
■ Voice prompt: Chinese voice prompt throughout the training and assessment can be turned on and off, and the volume can be
adjusted.
■ Barcode display air blowing volume: the correct air blowing volume is 500~600ml-1000ml:
• When the air blowing volume is too small, the bar code is yellow.
• When the air blowing volume is appropriate, the barcode is green.
• When the air blowing volume is too large, the barcode is red.
• The tidal volume blown in is too fast or too large, resulting in the indication of gas entering the stomach; Digital counting
display; Error language prompt;
■ The bar code displays the pressing depth, and the correct pressing depth is 5-6cm:
• When the pressing depth is too small, the barcode is yellow.
• When the pressing depth is appropriate, the barcode is green.
• When the pressing depth is too large, the barcode is red.
■ The correct rate of operation can be set automatically.
■ You can set the operation time by yourself, in seconds.
■ Operating frequency: the 2020 standard is 100-120 times/minute, and the value can also be set by yourself.
■ Power supply status: 220V power supply is adopted, and 12V power supply is output after voltage stabilization by voltage
regulator. (Lithium battery can be added for direct use without external power supply)
Printer Function:
■ Print the operation process after the operation.
■ The transcript covers the operation mode, consciousness judgment, first aid breathing, pulse check, breath check, foreign matter
removal, operation frequency, the ratio of pressing and blowing, the number of cycles, the number of pressing and blowing in each
cycle, the number of correct/wrong pressing, the cause and number of pressing errors, the cause and number of correct/wrong
blowing, the cause of wrong blowing, the setting time, the operation time, and the assessment.
■ The transcript covers the operation mode, consciousness judgment, first aid breathing, pulse check, breath check, foreign matter
removal, operation frequency, the ratio of pressing and blowing, the number of cycles, the number of pressing and blowing in each
cycle, the number of correct/wrong pressing, the cause and number of pressing errors, the cause and number of correct/wrong
blowing, the cause of wrong blowing, the setting time, the operation time, and the assessment.
RF Remote Control Function (Optional):
■ RF remote controller, the teacher can set the operation process through the remote controller. Control CPR start, stop, mute,pupil change, pulse, printer and other functions. You can also make conscious judgment, call for first aid, check your pulse,check your breath, and remove foreign matters for recording.
Material Characteristics:
■ The face skin, neck skin, chest skin and hair are made of imported thermoplastic elastomer mixed glue material, which is made of stainless steel mold and injected by injection molding machine at high temperature. It has the characteristics of accurate anatomical marks, real feel, uniform skin color, lifelike shape, beautiful appearance, durability, no deformation after disinfection and cleaning, and convenient disassembly and replacement. Its materials have reached the same level abroad.
Specification
|
item
|
value
|
|
Subject
|
Medical Science
|
|
Type
|
Manikin
|
|
Model Number
|
BOU/CPR490
|
|
Place of Origin
|
China
|
|
|
Shanghai
|
|
Brand Name
|
DARHMMY
|
|
Material
|
Advanced PVC
|
|
Product name
|
Multi CPR training manikin
|
|
Certificate
|
ISO
|
|
Usage
|
CPR Training
|
|
OEM
|
LOGO
|
|
Application
|
Medical School Teaching
|
|
Packing
|
Carton Box
|
|
Function
|
Educational Models
|
|
Color
|
|
|
Categories
|
Medical Training Manikin
|
