Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
3.2/5.5/6/9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AccTek
-
Voltage:
-
3phase 380V
-
Weight (KG):
-
1350
-
Core Components:
-
3.5kw HQD air / water 3.0KW cooling spindle, Mach3 controller, 450B stepper motor, Fuling inverter, Leadshine M860 driver
-
Driver:
-
Leadshine M860 driver
-
Inverter:
-
Fuling inverter
-
Stepper motor:
-
stepper motor NEMA34 / servo motor
-
Auto oil lubrication:
-
Auto oil lubrication
-
Transmission:
-
XY gear rack transmission, Z axis TBI ball screw transmission
-
Working Area:
-
1300*2500*200mm
-
Table Surface:
-
Vacuum table & T-slot extrusions
-
Controller:
-
Mach3 controller
-
Lubrication System:
-
Oil lubrication system
-
Spindle:
-
3.5kw HQD air / water 3.0KW cooling spindle
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
3.2/5.5/6/9
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AccTek
-
Voltage:
-
3phase 380V
-
Weight (KG):
-
1350
-
Core Components:
-
3.5kw HQD air / water 3.0KW cooling spindle, Mach3 controller, 450B stepper motor, Fuling inverter, Leadshine M860 driver
-
Driver:
-
Leadshine M860 driver
-
Inverter:
-
Fuling inverter
-
Stepper motor:
-
stepper motor NEMA34 / servo motor
-
Auto oil lubrication:
-
Auto oil lubrication
-
Transmission:
-
XY gear rack transmission, Z axis TBI ball screw transmission
-
Working Area:
-
1300*2500*200mm
-
Table Surface:
-
Vacuum table & T-slot extrusions
-
Controller:
-
Mach3 controller
-
Lubrication System:
-
Oil lubrication system
-
Spindle:
-
3.5kw HQD air / water 3.0KW cooling spindle
Seller:jack ma
Features of wood carving cnc router machine :
1.High temperature tempering treatment, welded steel tube T type machine bed and gantry, high rigidity, bearing strength better.
2.Y axis with double Leadshine stepper motor and driver, moving stably.
3.Linear square guide rail with automatic oil lubrication device, ensuring long life time working ,reduce the time of machine maintenance.
4. China air or water cooling spindle, more powerful, low noise, not easy to break cutters,suitable for engraving and cutting work .
5. Square guide rail transmission for X Y-axis, ball screw transmission for Z-axis, ensuring the machine fast speed and higher precision.
Parameters of cnc router milling machine
|

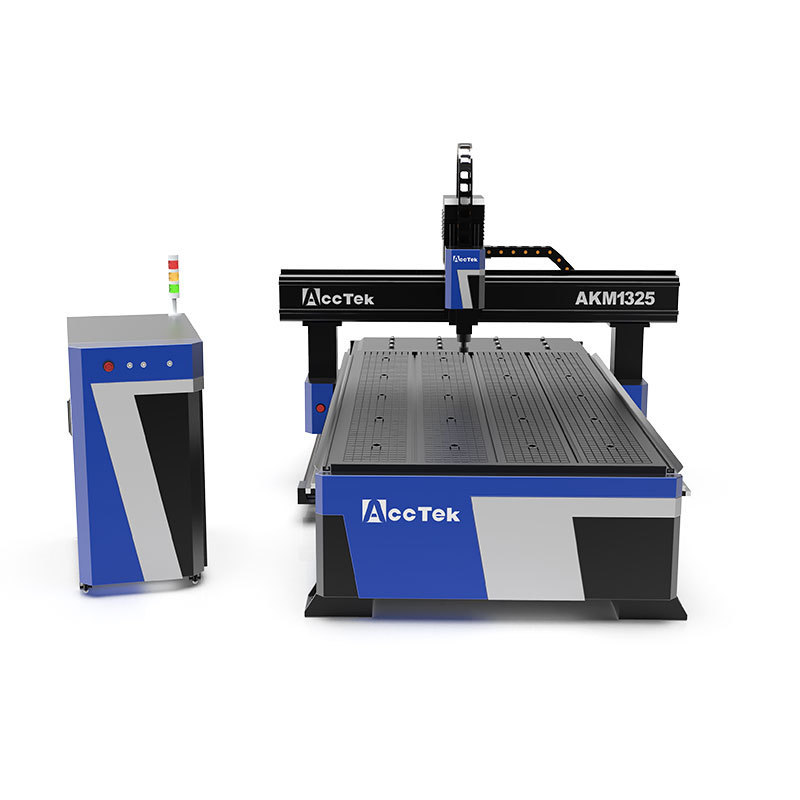

Model |
AKM1325 CNC wood craving machine |
|
|
Working Area |
1300×2500×200mm |
|
|
Spindle |
4.5kw Air-colling spindle/ 3.2 water cooling spindle |
|
|
Working Mode |
Leadshine Stepper Motor (Servo motors is optional) |
|
|
Control System |
MACH3 controller /DSP control system |
|
|
Drive Mechanism |
Gear-wheel on X Y axis |
|
|
Table Surface |
Vacuum table & T-slot extrusions |
|
|
Frame |
heavy duty Structure |
|
|
Z-axis setting |
Auto Z origin tool high sensor |
|
|
Dictate Formate |
G code, *.u00, *.mmg, *.plt |
|
|
Operating Voltage |
3phase 380V |
|
|
Software |
Type3 original with Dongle or Wentai (ArtCUT), ArtCAM software |
|
|
Lubrication System |
Oil lubrication system |
|
AccTek has user manual and videos for clients, can help you start the machine in single day.When you get the package, how to start?
Applications of cnc router milling machine
1. Wood Furniture Industry : Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates,cup board doors, interior doors, sofa legs,
headboards , game cabinets, computer tables, sewing machines table, instruments etc.
2 .Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making,blaster molding,and other advertising materials derivatives making
3. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto
4.
Moulding
: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
5.
Architectural models
: engraving fine window, fencing and wall patterns, etc.
pre-sale service
After sale sevice:
1. 3 years guarantee for machine,1.5 years for core parts.
2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
3. Lifetime maintenance free of charge.
4. We will provide the consumable parts at a factory price when you need replacement.
5. Machine has been adjusted before delivery.
6. Our staff can be sent to your company to install or adjust if necessary.
