Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Chemical Composition:
-
steel
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BS
-
Product name:
-
Helical Piles
-
Helix Plate material:
-
ASTM A36 hot rolled plate
-
Surface treatment:
-
Galvanized
-
Helical Lead Length:
-
3ft/5ft/7ft/10ft
-
Helices thickness:
-
3/8" 1/2"
-
Extension Length:
-
3ft/5ft/7ft/10ft
-
Payment terms:
-
T/T
-
MOQ:
-
10 Tons
-
Keyword:
-
Helical piles
-
Packing:
-
Standard Seaworthy Packing
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Other
-
Project Solution Capability:
-
NONE, Others
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Chemical Composition:
-
steel
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BS
-
Product name:
-
Helical Piles
-
Helix Plate material:
-
ASTM A36 hot rolled plate
-
Surface treatment:
-
Galvanized
-
Helical Lead Length:
-
3ft/5ft/7ft/10ft
-
Helices thickness:
-
3/8" 1/2"
-
Extension Length:
-
3ft/5ft/7ft/10ft
-
Payment terms:
-
T/T
-
MOQ:
-
10 Tons
-
Keyword:
-
Helical piles
-
Packing:
-
Standard Seaworthy Packing
Product Description

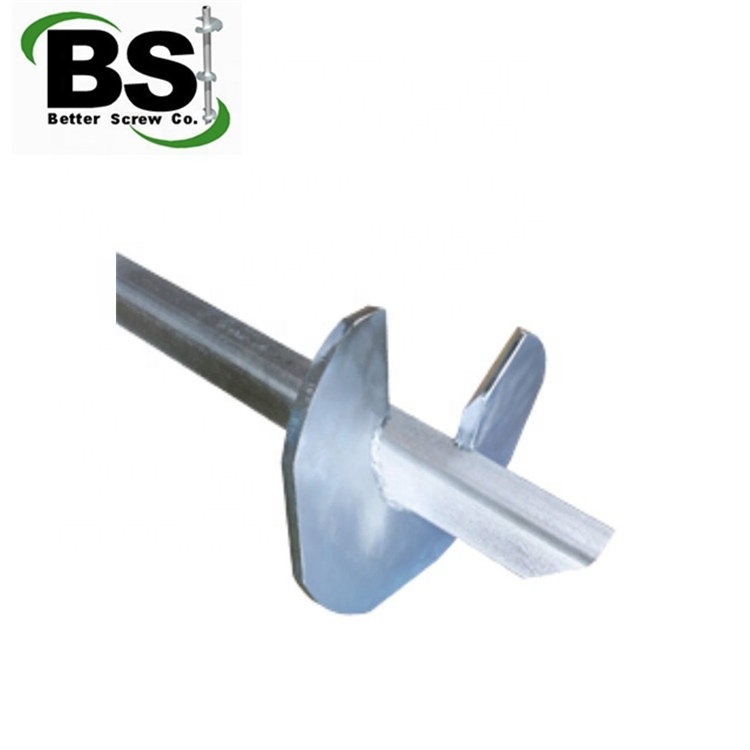

Helical piles
, also known as helical anchors, piers or screw piles. Due to their design and ease to install, they are widely used to new construction, tieback systems and soil nail earth retention applications. Instead of requiring large excavation work, they thread into the ground. This minimizes installation time, requires little soil disturbance, and transfers the weight of the structure to load bearing soil.
Specification
| Product name | Helical piers /Helical piles/Screw piles |
| Bar material | 40Cr or 45# steel,round corner 5mm radius |
| Helices material | ASTM A36 hot rolled plate |
| Round Shank Anchors | Hot Dip Galvanized to meet ASTM Specification A153 |
| Length | 3ft/5ft/7ft/10ft etc |
| Helix Blade | 8", 10", 12" and 14" in diameter |
| Helices Thickness | 3/8’’ OR 1/2’’ |
| Welding Standard | AWS D1.1 |
| Finish | Hot dipped zinc coating, Painted, Powder coating, corrosion protection conform to ASTM A153 standard. |
| Round Shank Anchors | Hot Dip Galvanized to meet ASTM Specification A153 |
| Sample | Available |
| OEM service | Available |
| Markets | Europe, North America, South America |
Product Show
