miTEC Standalone Wired Assistance Alarm Kit Handycap Toilet Emergency Pull Cord System

miTEC Standalone Wired Assistance Alarm Kit Handycap Toilet Emergency Pull Cord System

FOB Reference Price: Get Latest Price

≥2 Pieces

US $50

≥200 Pieces

US $38.37

≥1000 Pieces

US $32.68

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Network:: Other

Product name:: miTEC Accessible Toilet Emergency Call System

Function:: Emergency Alert

Application:: Handicap Toilet, Hospital, Shopping Mall, Ederly Center

Material:: ABS

Waterproof:: IP65

Power supply:: 12V DC

Certification:: CE ROHS

Warranty:: 2 years warranty with lifetime technical support

Set:: 1*Emergency Button, 1*Pull Cord, 1*Flash Siren, 1*Main Control

Quick Details

Place of Origin:: China

Brand Name:: miTEC

Model Number:: MECK-PC; MECK-MC/RE

Network:: Other

Product name:: miTEC Accessible Toilet Emergency Call System

Function:: Emergency Alert

Application:: Handicap Toilet, Hospital, Shopping Mall, Ederly Center

Material:: ABS

Waterproof:: IP65

Power supply:: 12V DC

Certification:: CE ROHS

Warranty:: 2 years warranty with lifetime technical support

Set:: 1*Emergency Button, 1*Pull Cord, 1*Flash Siren, 1*Main Control

Features Highlight

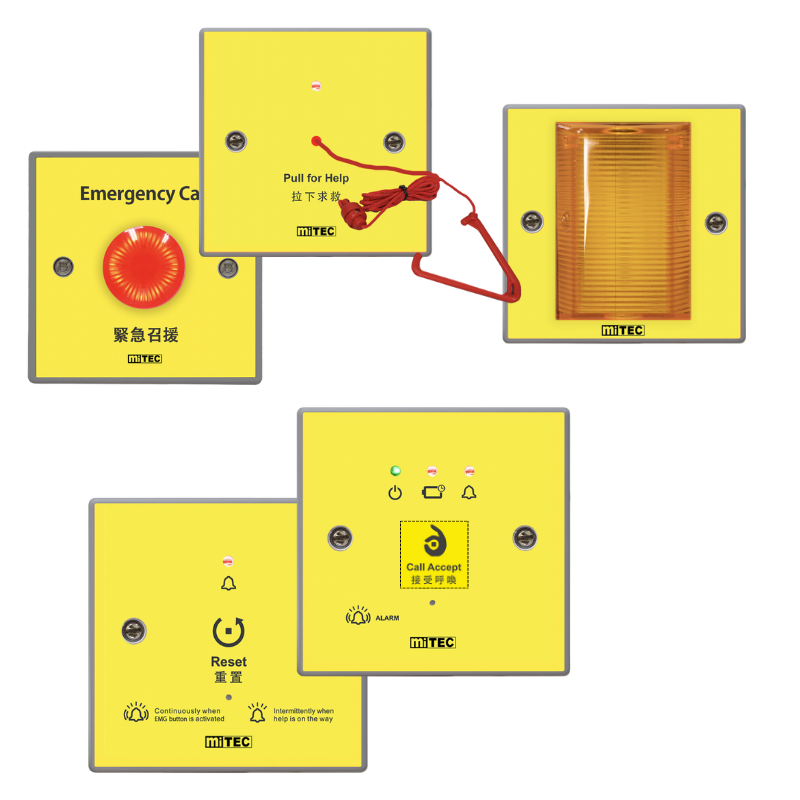

miTEC Accessible Toilet Emergency Call System

miTEC Emergency Call Kit provides the perfect solution for emergency call for assist situation, including disabled toilet, elderly washroom, and any other situation where someone might encounter emergency and need instant help.

The main control of the kit work as the power supply unit and backup battery for the system, connect and supply power to all components through simple wiring, and ensure system well function even when power outages.

This system is meant to provide the greatest safeguard to anyone who encounter emergency situation, perfect for commercial building such as shopping mall, elderly center, government building, office building, hotels, restaurant, etc.

Emergency Operation Workflow

1. Users trigger alarm by pulling pull cord or pressing emergency button (Audible & Visible Indication Constant On)

2. Monitoring center receive audible notice and press call accept button (Audible & Visible Indication Turn Slow Flash & Beep)

3. Officials arrive and offer help to users, problem eliminated and official press the reset button (Audible & Visible Indication
Off)

Product Specifications

Model	MECK-MC
Function	Reset/Call Accept & Siren + Power Supply Unit + Backup Battery
Power Input	AC 230V 50/60Hz
Power Output	DC 12V 0.35A
Audible Indication	85dB 30cm; 66dB 100cm
External Output	Relay Output NO/COM/NC for External Alarm System
Protection Standard	IP 54
Dimensions	87 (L) x 87 (W) x 41 (H) mm

Model	MEC-140
Function	Push Button Alarm Trigger
Power Input	DC 12V 15mA
Visible Indication	Red Button LED Active when Trigger
Protection Standard	IP 65
Dimensions	87 (L) x 87 (W) x 56 (H) mm

Model	MECK-BL
Function	Over Door Visible & Audible Indication
Power Input	DC 12V 60mA
Visible Indication	Constant On when Alarm Trigger, Slow Flash when Call Accept
Audible Indication	85dB 30cm; 66dB 100cm Constant Beep when Alarm Trigger, Short Beep when Call Accept
Protection Standard	IP 30
Dimensions	87 (L) x 87 (W) x 41 (H) mm

Model	MECK-PC
Function	Pull Cord Alarm Trigger
Power Input	DC 12V 10mA
Visible Indication	Red LED Active During Alarm
Pull Length & Force	3M Length / 11N
Protection Standard	IP 30
Dimensions	87 (L) x 87 (W) x 41 (H) mm

Model	MECK-RE
Function	Reset Button & Siren
Power Input	DC 12V 20mA
Visible Indication	Red LED Active During Alarm
Audible Indication	85dB 30cm; 66dB 100cm
Protection Standard	IP 54
Dimensions	87 (L) x 87 (W) x 41 (H) mm

1. What are the major products you offer?
We are design & manufacturer focus in switching power supply, access control system, security system and public address system. We also engage in ODM and OEM of electronic products, devote to bring you the Best One-Stop ELV B2B Experience.
2. I am not sure which product suit me, what should I do?
Is very common for customer unsure about their decision on product. Just send us an inquiry anytime, describe the product you looking for or the problem you facing, and our customer service team will be happy to help.
3. What type of product customization you can offer?
We are manufacturer with self-owned factory, thus we offer ODM/OEM base on your need. We also provide basic customization services like packaging, labeling, color, laser printing, etc.

4. What are leading times of orders?
Products in stocks will be shipped within 3 days upon payment. Products out of stocks & OEM will be deliver within 15 to 28 days depends on the products & quantity. High customization & ODM lead time will be provided by our sales team depends on your needs.
5. Ratings & compliance?
We have 3C CE ROHS. If you need other certification with large order, We can apply for it.
6. Do we offer sample for testing?
Yes, we welcome and suggest our customers placing sample order before bulk purchase. For new partners, we will first charge you on the sample and shipping cost, and the sample cost will be deducted on your bulk purchase order.
