Quick Details
-
Core Components:
-
Laser Cleaning Head
-
Place of Origin:
-
Guangdong, China
-
Weight (KG):
-
45 KG
-
Product name:
-

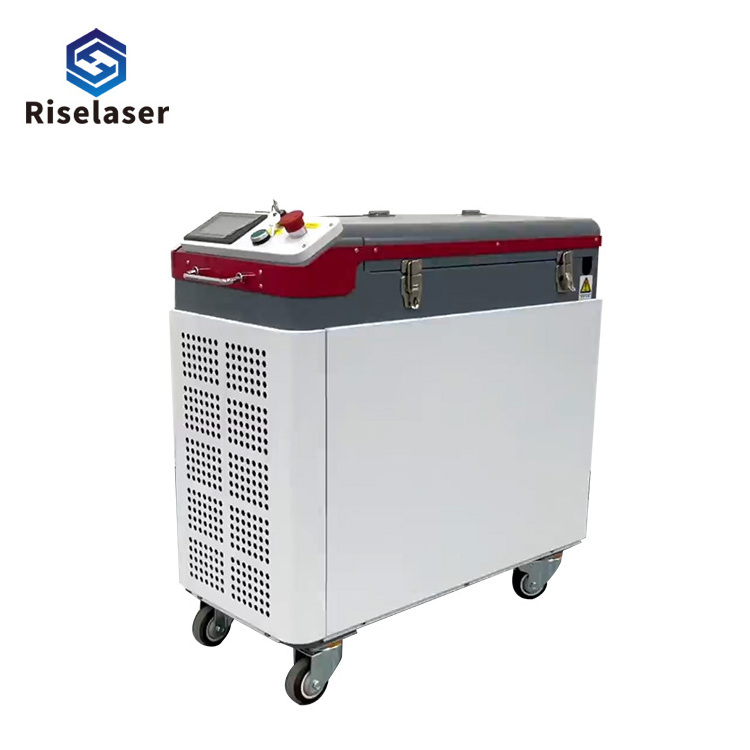

Pulse Fiber Laser Cleaning Machine
-
Application:
-
Surface Paint Rust Cleaning
-
Function:
-
Metal Rust Surface Laser Cleaning
-
Laser Power:
-
100w 200w 300w
-
Cleaning Process:
-
Non-contact Laser Cleaning
-
Keywords:
-
Laser Cleaning Metal Machine
-
Laser source:
-
JPT Fiber Laser
-
Clean way:
-
Non-touch Fiber Laser Cleaning
-
Material:
-
Metal Rust Oxide Painting Coating
-
Cleaning Type:
-
Handheld Laser Gun
Quick Details
-
Power:
-
200W, 100W, 300W
-
Laser Type:
-
Fiber Laser
-
Laser Source Brand:
-
JPT
-
Core Components:
-
Laser Cleaning Head
-
Place of Origin:
-
Guangdong, China
-
Weight (KG):
-
45 KG
-
Product name:
-
Pulse Fiber Laser Cleaning Machine
-
Application:
-
Surface Paint Rust Cleaning
-
Function:
-
Metal Rust Surface Laser Cleaning
-
Laser Power:
-
100w 200w 300w
-
Cleaning Process:
-
Non-contact Laser Cleaning
-
Keywords:
-
Laser Cleaning Metal Machine
-
Laser source:
-
JPT Fiber Laser
-
Clean way:
-
Non-touch Fiber Laser Cleaning
-
Material:
-
Metal Rust Oxide Painting Coating
-
Cleaning Type:
-
Handheld Laser Gun
Product Discription
1.No-touch cleaning.
2.Precision cleaning.
3.No consumables, safe and environmentally friendly.
4.Easy to use.
5.Ergonomic design.
6.High cleaning efficiency.
7.The laser cleaning system is stable.
8.Optional mobile battery module.
Parameters
|
Operating environment
|
|
|
|
Supply voltage
|
Single-phase 220V±10%, 50/60Hz AC
|
|
|
Overall power consumption
|
≤800W
|
|
|
Operating ambient temperature
|
5℃～40℃
|
|
|
Ambient humidity
|
≤80%
|
|
|
Optical parameters
|
|
|
|
Laser average power
|
≥100W
|
|
|
Power instability
|
＜5%
|
|
|
Laser working mode
|
Pulse
|
|
|
Pulse width
|
2-500ns adjustable
|
|
|
Maximum single pulse energy
|
1.5mJ
|
|
|
Power adjustment range (%)
|
0-100 (gradually adjustable)
|
|
|
Frequency adjustment range (kHz)
|
1-4000 (gradually adjustable)
|
|
|
Fiber length
|
3m
|
|
|
Cooling method
|
Air cooling
|
|
|
Cleaning head parameters
|
|
|
|
Scanning range (length*width)
|
0-100mm, continuously adjustable;
Dual axis supports 8 scanning modes;
|
|
|
Scanning frequency
|
The highest is not lower than 300Hz
|
|
|
Field lens focal length (mm)
|
160mm (210mm/254mm/330mm/420mm optional)
|
|
|
Depth of focus
|
About 5mm
|
|
|
Mechanical parameters
|
|
|
|
Machine size (length, width and height)
|
About 770mm*375mm*800mm
|
|
|
Dimensions after packaging (length, width and height)
|
About 870mm*480mm*960mm
|
|
|
Machine weight
|
About 45KG
|
|
|
Packaged weight
|
About 85KG
|
|
|
Cleaning head weight
|
＜1.8Kg
|
|
|
Operation method
|
Handheld/Automated
|
|
1.How long is the warranty period?
Whole machine warranty period is 1 year, laser source 2 years. If there is any problem during the period, we will solve it as soon as possible.
2.How long is the cable?
Different laser source have different option. For example, the normal cable length of raycus and max is about 9 meters.
3.How thick can 1500w-3000W be welded
1-8mm thick metal materials.
4.Is there a wire feeder?
We have a wire feeder to choose from. If you are interested, you can contact us and provide your email address.We will send more detailed pictures to your email.
5.Can aluminum and galvanized steel be welded?
Yes, it can.
6.Packaging
All our machines are packed in wooden boxes.
7.Language interface
Supports language customization, etc. You can also translate and insert to software.
