As the classification wheel is in revolution, both the air force and centrifugal force act on the powder.
- Product Details
- {{item.text}}
Quick Details
-
Power (kW):
-
19.3
-
Range of Spindle Speed(r.p.m):
-
2300 - 5800 r.p.m
-
Place of Origin:
-
Jiangsu China
-
Brand Name:
-
Yinda
-
Voltage:
-
380V 50HZ 3PHASE
-
Dimension(L*W*H):
-
4500*1600*2600
-
Weight (KG):
-
1000 KG
-
Product name:
-
YDWF-15 Air Classifier Mill
-
Capacity:
-
30-100kg/h
-
Input size:
-
≤ 10mm
-
output size:
-
80-320 mesh
-
RPM:
-
5800
-
Motor power:
-
7.5 KW
-
Jacket:
-
Avaible
-
Discharge:
-
cyclone separator
-
machine material:
-
SUS304, SUS316L
-
Application scope:
-
Chemical Cosmetic Food industry
Quick Details
-
Output (kg/h):
-
30 - 320 kg/h
-
Feeding Size (mm):
-
10 - 15 mm
-
Output Size (mesh):
-
80 - 320 mesh
-
Power (kW):
-
19.3
-
Range of Spindle Speed(r.p.m):
-
2300 - 5800 r.p.m
-
Place of Origin:
-
Jiangsu China
-
Brand Name:
-
Yinda
-
Voltage:
-
380V 50HZ 3PHASE
-
Dimension(L*W*H):
-
4500*1600*2600
-
Weight (KG):
-
1000 KG
-
Product name:
-
YDWF-15 Air Classifier Mill
-
Capacity:
-
30-100kg/h
-
Input size:
-
≤ 10mm
-
output size:
-
80-320 mesh
-
RPM:
-
5800
-
Motor power:
-
7.5 KW
-
Jacket:
-
Avaible
-
Discharge:
-
cyclone separator
-
machine material:
-
SUS304, SUS316L
-
Application scope:
-
Chemical Cosmetic Food industry
Product Description
Leaf moringa flower air classifier mill acm grinder herb fine powder making machine
Yinda YDWF series air classifier mill (ACM) has such performances as winnowing, screen or mesh free, uniform size and continuous operation, and has reached the international advanced level. Required grinding size can be realized by adjusting step transmission to change the distance between the stepped gear and stepped pan. Equipped with a cyclone separator and a collector, so there is no powder during production. The dust collection bag can effectively collect the fine powder in the air current so as to meet the requirement for cleanness and environmental protection in waste gas discharge. The final powder collected by the dust collecting bag can be effectively recycled. Thus the material loss is reduced.
|
Model
|
YDWF-15
|
YDWF-20
|
YDWF-30
|
YDWF-60
|
|
Production capacity (kg/h)
|
15-20
|
25-35
|
50-80
|
100-130
|
|
Speed of principle axis (r/min)
|
5800
|
3600
|
3600
|
2300
|
|
Feeding size (mm)
|
≤10
|
≤10
|
≤10
|
≤10
|
|
Crushing fineness (mesh)
|
80-320
|
80-320
|
80-320
|
80-400
|
|
Motor power (kw)
|
Crushing motor:7.5kw
Blower:7.5kw Grading motor:1.5kw Feeding motor:0.37kw discharge motor:0.75kw Total motor:17.62kw |
Crushing motor:11kw
Blower:11kw Grading motor: 3kw Feeding motor:0.75kw discharge motor:0.75kw Total motor:26.5kw |
Crushing motor:22kw
Blower:22kw Grading motor:5.5kw Feeding motor:0.75kw Discharge motor:1.1kw Total motor:51.35kw |
Crushing motor:37kw
Blower:30kw Grading motor:7.5kw Feeding motor:1.1kw discharge motor:1.5kw Total motor:77.1kw |
|
Overall dimension(mm)
|
3000×1600×2600
|
3500×1900×3300
|
3800×1900×3300
|
5000×2600×4300
|
Details Images

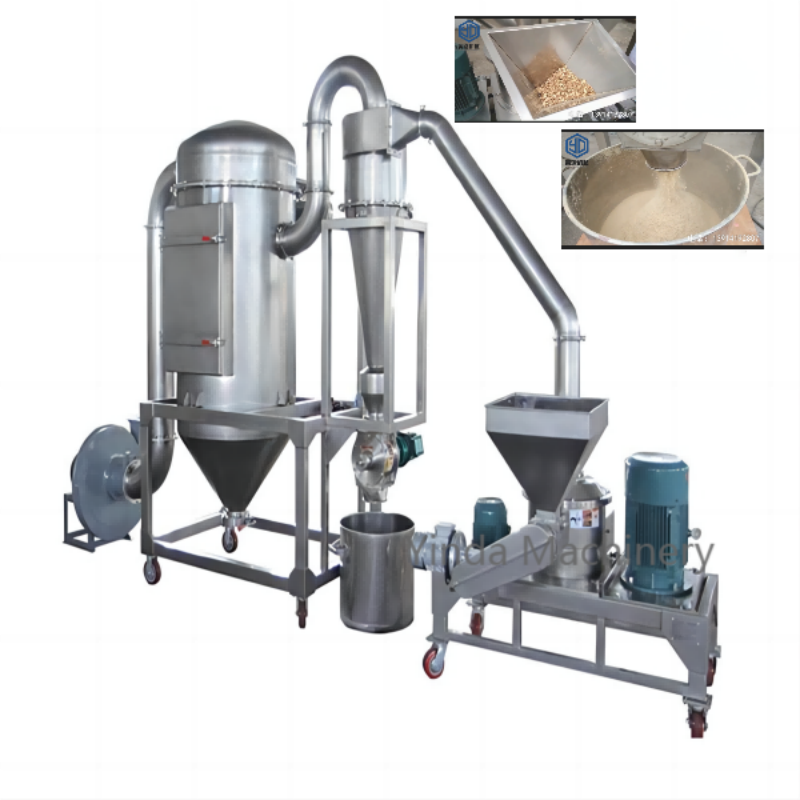

Leaf moringa flower air classifier mill acm grinder herb fine powder making machine
Air Classifier Mill
The material enters the grinding chamber via the funnel and spiral conveyor where it is sheared and broken by the fast rotating blades. The power passes the guide ring and enters the classification chamber. As the classification wheel is in revolution, both the air force and centrifugal force act on the powder.
As the particles whose diameters are greater than the critical diameter (diameter of the classification particles) have a great mass, they are thrown back into the grinding chamber to be ground again, while the particles whose diameters are smaller than the critical diameter enter the cyclone separator and bag-type collector via the material exit pipe be means of negative pressure wind conveyance.The discharge material meets the requirement for the product.
As the particles whose diameters are greater than the critical diameter (diameter of the classification particles) have a great mass, they are thrown back into the grinding chamber to be ground again, while the particles whose diameters are smaller than the critical diameter enter the cyclone separator and bag-type collector via the material exit pipe be means of negative pressure wind
conveyance.
|
Main features:
1. The fineness size is more than 350mesh easily to get the ultra-fine powder. 2.Grinding and Classifying in one machine 3. Multiple pass milling for Finer grinding capabilities 4. ACM variant with Independent Drive classifier available for sticky materials. 5. Easy to disassemble and clean the equipment, the inner wall is smooth without a dead angle. |
Industrial Application
Food additives Industry
Seasoning Industry
Cosmetic Industry
Mineral Industry
Chemicals Industry
Grains Industry
