Quick Details
-
Air Consumption:
-
10 m3/min
-
Place of Origin:
-
China
-
Brand Name:
-
Keming
-
Voltage:
-
Customized
-
Power:
-
22hp
-
Dimension(L*W*H):
-
2650*850*1350mm
-
Weight:
-
950 kg
-
Product name:
-
Shotcrete Machine
-
Application:
-
Concrete spraying machine
-
Drive mode:
-
Diesel engine
-
Applicable materials:
-
dry concrete
-
Capacity:
-
7 m3/h
-
Spraying hose id.:
-
57/64 mm
-
Water cement ratio:
-
≤0.35
-
Max aggregate size:
-
20 mm
-
Theory:
-
Rotory shotcrete machine
-
Keywords:
-
Diesel Shotcrete Machine
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Saudi Arabia, Indonesia, Pakistan, India, Mexico, UAE
-
Certification:
-
CE,ISO
Quick Details
-
Max. Conveying Distance:
-
100m
-
Max Aggregate Size:
-
20mm
-
Hose Inner Diameter:
-
57 mm
-
Air Consumption:
-
10 m3/min
-
Place of Origin:
-
China
-
Brand Name:
-
Keming
-
Voltage:
-
Customized
-
Power:
-
22hp
-
Dimension(L*W*H):
-
2650*850*1350mm
-
Weight:
-
950 kg
-
Product name:
-
Shotcrete Machine
-
Application:
-
Concrete spraying machine
-
Drive mode:
-
Diesel engine
-
Applicable materials:
-
dry concrete
-
Capacity:
-
7 m3/h
-
Spraying hose id.:
-
57/64 mm
-
Water cement ratio:
-
≤0.35
-
Max aggregate size:
-
20 mm
-
Theory:
-
Rotory shotcrete machine
-
Keywords:
-
Diesel Shotcrete Machine
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
Saudi Arabia, Indonesia, Pakistan, India, Mexico, UAE
-
Certification:
-
CE,ISO

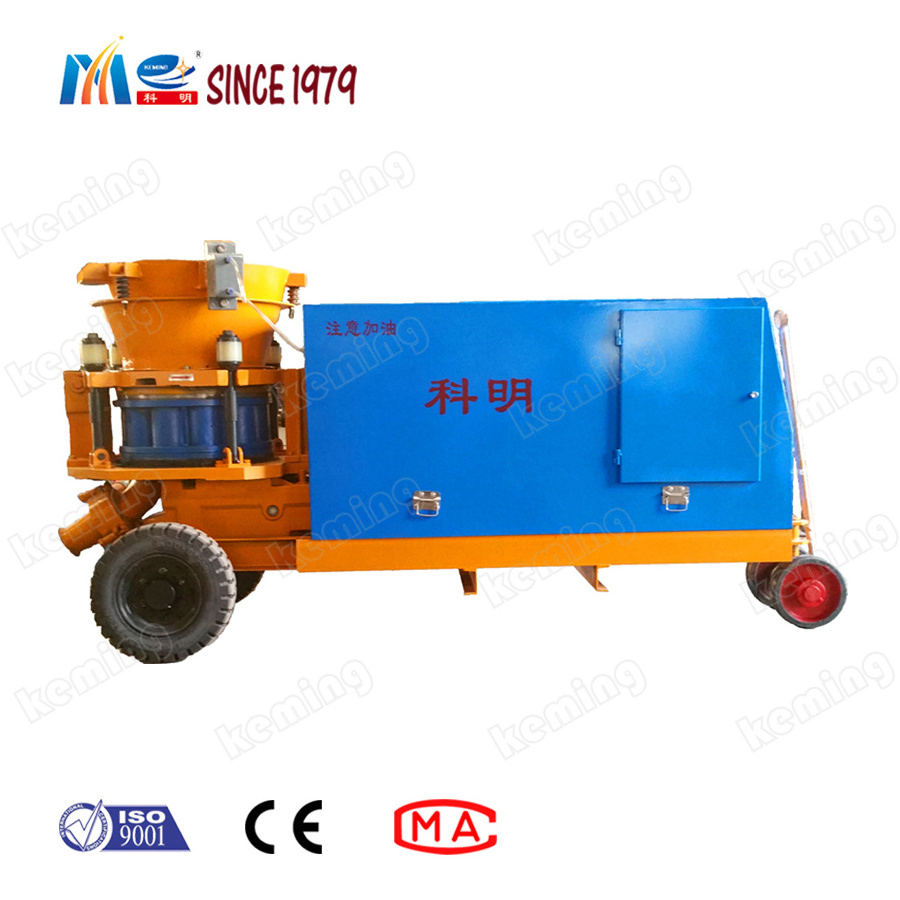

KPZ-7D Diesel Shotcrete Machine
New Shotcrete Diesel Portable Shotcrete Machine for Sale
Shotcrete Machine Features:
1.KPZ Series Dry Shotcrete Machine include Electric Shotcrete Machine (KPZ-3, KPZ-4, KPZ-5, KPZ-7, KPZ-9, KCPZ), Pneumatic Shotcrete Machine (KPZ-3A, KPZ-4A, KPZ-5A, KPZ-7A, KPZ-9A), Diesel Engine Shotcrete Machine (KPZ-3D, KPZ-4D, KPZ-5D, KPZ-7D, KPZ-9D), and Mining Shotcrete Machine (PC5I, PS6I-J).
2. KPZ-7D Diesel Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, diesel engine etc.
3. KPZ-7D Diesel Shotcrete Machine have advanced technology, rational structure, convenient operation, stable performance and long service life.
Shotcrete Machine Application:
1.KPZ-7D Diesel Shotcrete Machine can be used for dry or half wet concrete spray construction.
2.KPZ-7D Diesel Shotcrete Machine are widely used in the tunnel, culvert, subway, slope reinforcement, hydroelectric works, underground works and high-methane laneway of coal mine etc.
Shotcrete Machine Technical Parameters:
|
Model |
KPZ-7D Diesel Engine Shotcrete Machine |
|
Capacity |
7 m3/h |
|
Max. conveying dist. |
100m |
|
Suitable mixture ratio |
cement/sand and gravel=1:4~5 |
|
Suitable water-cement ratio |
<0.35 |
|
Max aggregate size |
φ20mm |
|
Spraying hose ID. |
φ 57 /64 mm |
|
Operating pressure |
0.2~0.6Mpa |
|
Air consumption |
9~10 m3/min |
|
Power type |
Diesel engine |
|
Diesel power |
16.2 KW (22hp) |
|
Dimensions(Length×width×height) |
2650×850×1350mm |
|
Total weight |
1300kg |
Shotcrete Machine Detailed Images:
|
|
|
KCPZ series Dedusting Shotcrete Machine * Dust Removal * Electric Motor * KCPZ-5; KCPZ-6; KCPZ-7
|
KPZ series Dry Shotcrete Machine * Electric Motor * KPZ-3; KPZ-4; KPZ-5; KPZ-7; KPZ-9 |
|
|
|
|
KPZ-A series Dry Shotcrete Machine * Air Motor * KPZ-3A; KPZ-4A; KPZ-5A; KPZ-7A; KPZ-9A |
KPZ-D series Dry Shotcrete Machine * Diesel Engine * KPZ-3D; KPZ-4D; KPZ-5D; KPZ-7D; KPZ-9D |
|
|
|
|
KSP series Wet Shotcrete Machine * Electric Motor * KSP-5; KSP-7; KSP-9 |
KSP-D series Wet Shotcrete Machine * Diesel Engine * KSP-5D; KSP-7D; KSP-9D |
|
|
|
|
Dry Shotcrete Machine Truck * Four-wheel drive or crawler drive * Electric Motor * KZL-6; KZL-7*2 |
Shotcrete Machine Robot * Four-wheel drive or crawler drive * Electric Motor * KPC-8
|
