Assembly Membrane Switch with Dustproof Metal dome switch array,Custom metal dome for PCB membrane switch

Assembly Membrane Switch with Dustproof Metal dome switch array,Custom metal dome for PCB membrane switch

FOB Reference Price: Get Latest Price

≥1000 Pieces

US $0.5

≥10000 Pieces

US $0.2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: PET+301

Thickness:: 0.2-0.3mm

Weight:: 1.5g/each

Process:: Punching

Surface treatment:: Nickel

Used for:: ON PCB

Certificate:: ROHS

Delivery time:: normally in stock

Package:: PE bags

Type:: As the picture/OEM is welcome

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: HUIHUI

Model Number:: HW

Material:: PET+301

Thickness:: 0.2-0.3mm

Weight:: 1.5g/each

Process:: Punching

Surface treatment:: Nickel

Used for:: ON PCB

Certificate:: ROHS

Delivery time:: normally in stock

Package:: PE bags

Type:: As the picture/OEM is welcome

Related Products

Product Description

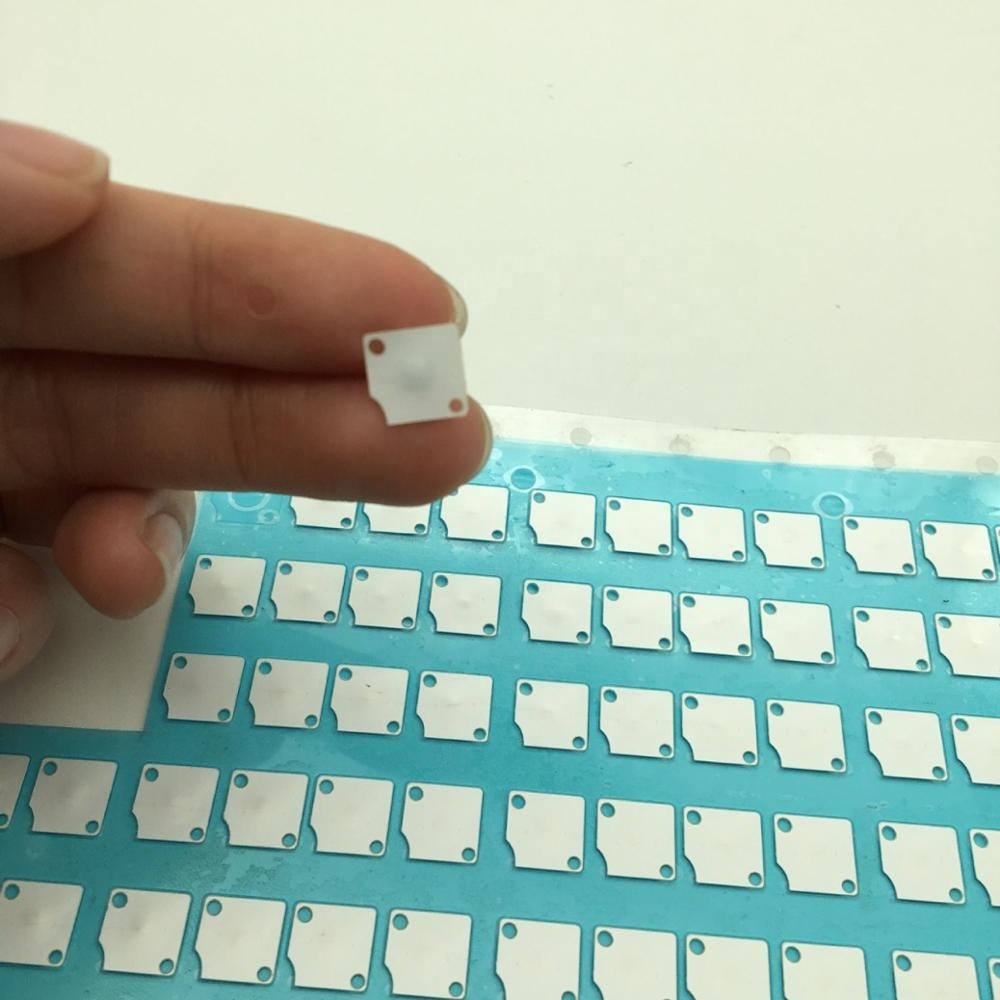

Product Name	metal dome arrays,polyester dome carriers backed with pressure sensitive adhesive
Material	Stainless Steel+PET 3M adhesive
Size	Different sizes, shapes, and forces of metal domes can be placed on the same array.
Contact life	5 million cycles typical
Switching Voltage	0.1 to 50 VDC
Switching Capacity	1 Watt
Switching Current	0.005 to 100 ma DC
Contact Bounce	<.3ms make <.6ms break
Plating	Nickel/Silver/Gold optional
Operating Temp Rating	-45 degrees C to +100 degrees C
Storage Temp Rating	-55 degrees C to +100 degrees C

Product performance description
产品性能介绍说明

HUIHUI Arrays are assembled with the dome style and quantity of your choice, cut to the size and shape you specify. Different sizes,
shapes, and forces of metal domes can be placed on the same array.

We can accept a number of different file types, but we can also provide budgetary pricing from a hand-sketch of the part.
Following is a list of file types we support:

*AutoCAD (all versions)

* DXF (all versions)

* Acrobat (.pdf)

Product Usage

- Packaging Dome Arrays

The standard carrier for Custom HUIHUI Dome Array Sheets is polyester, but this can be altered to fit your needs. Our array
sheet design lends itself well to low and medium volume applications, where cost savings is critical during the board assembly
process.

Placement of the HUIHUI DOME Arrays is quick and easy. Simply peel off the release liner, align the array and apply it to your
circuit board, flex circuit, or membrane.

Packing&Shipping

Packaging Details:	Plastic bag and carton. otherwise specified by customer.
Delivery Detail:	8-12 days

Company Introduction

HUIHUI was founded in 2006 specifically to serve the membrane switch and related switch industries, filling a void previously unsatisfied by other tactile metal dome switch suppliers. Since our inception, we have expanded to serve many different industries throughout the world.

Our Services & Strength

Our team has a combined experience of over 15 years in this industry. We manufacture all of our domes in the world to your precise specifications. You’ll receive the highest quality product with consistent characteristics every time you order.

FAQ

Q. Can the domes be soldered to a circuit board?

A. Not recommended. When the domes are pushed, the feet actually move outward slightly. When soldered to a circuit board, the feet of the domes are restricted from their natural movement. This restriction can negatively affect the tactile response of the domes,and in some cases, cause irreparable damage to the domes or break the solder joint.

Q. What is the purpose of a dimple in the center of a dome?

A. Various Snaptron domes have a dimple located in the center of the dome. Typical depth of the dimple is .001” to .002” but may vary depending on the dome style. A dimple is used to reinforce or improve the dome contact with the PCB.
