Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
970mm*565mm*234.5mm
-
Weight (KG):
-
45.6 KG
-
Key words:
-
Wood Laser Printer Machine
-
Laser tube type:
-
CO2 Sealed Glass Laser Tube
-
Focus:
-
Autofocus
-
Cutting thickness:
-
0-20mm
-
Noise Rating:
-
≤70dB
-
Rotary:
-
10-180mm
-
laser lifetime:
-
10000 hours
-
Certification:
-
CE ROHS FDA ISO9001
-
After-sales Service Provided:
-
24-hour online customer service and technical support
-
Cutting material:
-
Acrylic Wood Mdf Plywood Plactical
Quick Details
-
Engraving Area:
-
510mm*300mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-600mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
China
-
Dimension(L*W*H):
-
970mm*565mm*234.5mm
-
Weight (KG):
-
45.6 KG
-
Key words:
-
Wood Laser Printer Machine
-
Laser tube type:
-
CO2 Sealed Glass Laser Tube
-
Focus:
-
Autofocus
-
Cutting thickness:
-
0-20mm
-
Noise Rating:
-
≤70dB
-
Rotary:
-
10-180mm
-
laser lifetime:
-
10000 hours
-
Certification:
-
CE ROHS FDA ISO9001
-
After-sales Service Provided:
-
24-hour online customer service and technical support
-
Cutting material:
-
Acrylic Wood Mdf Plywood Plactical
Product Description
Specification
|
Product name
|

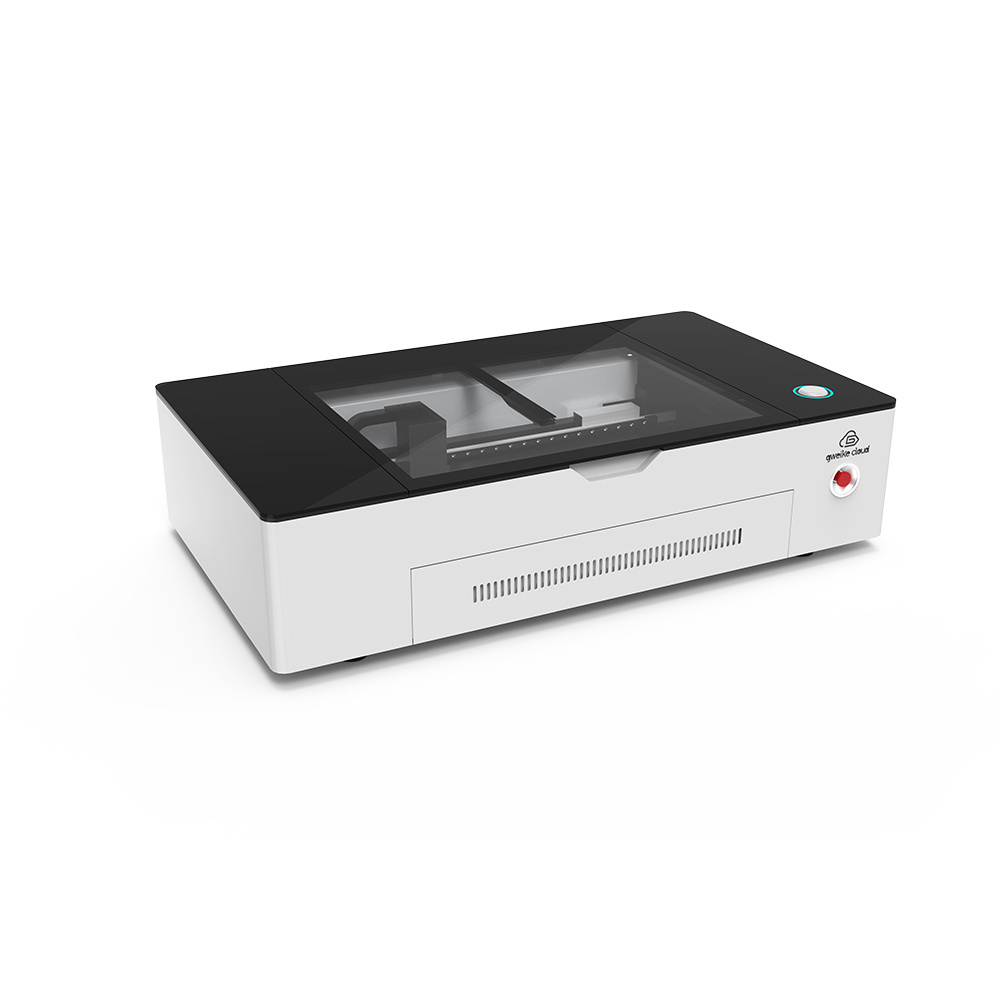

Gweike Coud Pro Ⅱ
|
|
Laser type
|
CO2 glass laser tube
|
|
Power supply system
|
AC110-220V±10%50-60Hz
|
|
Focus mode
|
Autofocus
|
|
Working Area
|
20.08(510mm)*11.8(300mm)
|
|
Max.Workpiece Height
(without honeycomb tray) |
2"(51mm)
|
|
Max. Cutting Depth
|
0.59"(15mm) Basswood
|
|
Max. Engraving Speed
|
600mm/s
|
|
Engraving Precision
|
0.001”(0.025mm)
|
|
Machine working noise
|
≤70dB
|
|
Operating Systems
|
Windows/macOS
|
|
Support software
|
Gweikecloud Web Based,Gweikecloud Offline, Lightburn
|
|
Connection
|
Wi-Fi, USB, Ethernet
|
|
Supported File
|
Type SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc.
|
|
Design Software
|
AutoCAD, Solidworks, Inkscape, CorelDRAW, PowerPoint, Illustrator, Photoshop, Google AutoDraw, etc.
|
|
Camera
|
5 MP ultra-wide-angle camera wide angle & macro
|
|
Cooling method
|
Built-in water colling system
|
|
Lifespan
|
10000h
|
|
Machine Dimensions
|
38.2“*22.2“*9.2"(970mm*565mm*234.5mm)
|
