Quick Details
-
Brand Name:
-
BNTET
-
Fuels:
-
Light Oil
-
Usage:
-
Boiler Auxiliary Equipment
-
Color:
-
Customers' Requirement
-
Motor power:
-
0.55 KW
-
Size:
-
1050x900x700
-
Power Supply:
-
380V 50Hz
-
Power:
-
237-534 Kw
-
Weight:
-
50Kg
-
Keywords:
-
Portable Light Oil Waste Oil Burner 30-240 KW Waste Oil Burner
-
Material:
-
Fast Heating Heater
Quick Details
-
Type:
-
Oil Burner
-
Weight (KG):
-
15
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
BNTET
-
Fuels:
-
Light Oil
-
Usage:
-
Boiler Auxiliary Equipment
-
Color:
-
Customers' Requirement
-
Motor power:
-
0.55 KW
-
Size:
-
1050x900x700
-
Power Supply:
-
380V 50Hz
-
Power:
-
237-534 Kw
-
Weight:
-
50Kg
-
Keywords:
-
Portable Light Oil Waste Oil Burner 30-240 KW Waste Oil Burner
-
Material:
-
Fast Heating Heater

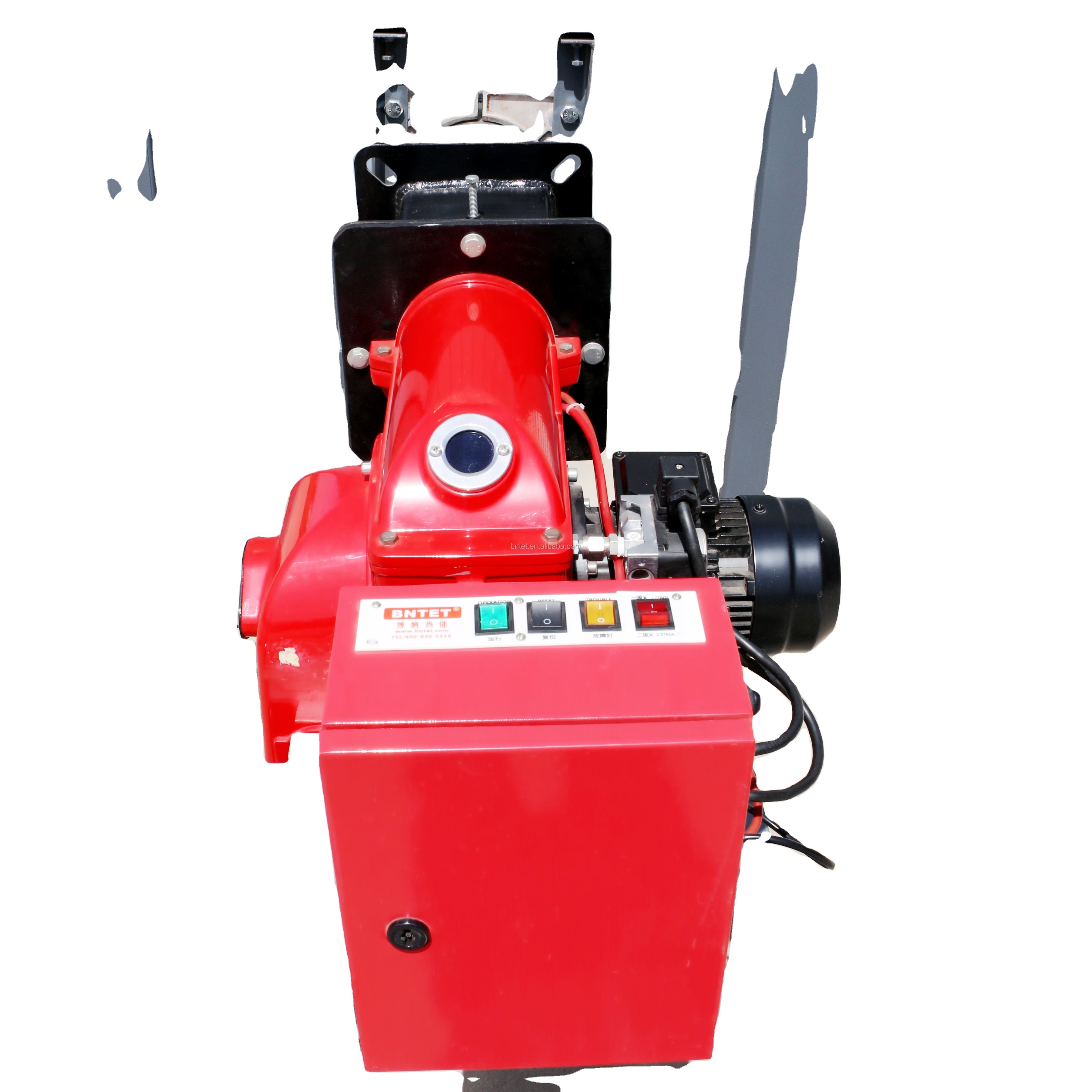

BNL 40 Technical performance
•Light oil and Heavy oil burner.
•Single/Two stage operation (on/off)-
•High pressure mechanical atomisation of fuel using nozzle.
•Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
•Maintenance facilitated by the fact that the atomisation unit can be removed without having to remove the burner from the boiler.
•Single stage manual flow adjustment.
•Two stage airflow regulation for first and second stage by means of hydraulic regulator.
•One flange and one insulating seal for boiler fastening.
•Combustion air intake with airflow adjustment device.
•10.Sliding boiler coupling flange to adapt to head
•protrusion of the various types of boilers.
•Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers.
•Monophase electric motor to run fan and pump.
•Flame presence check by photoresistance.
•Electrical plant protection rating Ip40.
Some Parts Brand of Our Industrial LPG Natural Gas Steam Boiler Burner:
|
Brand |
Part of the accessories |
|
SIEMENS |
program controller , servo motor , valve combination |
|
DUNGS |
valve combination , air pressure switch |
|
FIDA |
ignition transformer |
|
|
|||||||||
|
Model |
Power(kW) |
Power supply |
Motor power (kW) |
packing Size (L*P*H)(mm) |
Net weight(kg) |
||||
|
BNL 40 P |
240-540 |
3N 380V 50Hz |
0.55 |
1050x900x700 |
50 |
||||
|
A |
B |
C |
D |
E |
F |
N |
L |
I |
M |
|
mm |
mm |
mm |
mm |
φmm |
φmm |
φmm |
φmm |
mm |
M |
|
528 |
408 |
1046 |
120-305 |
170 |
133 |
175 |
200-245 |
215 |
M12 |
