Quick Details
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LARISSA
-
Model Number:
-
FZY200-2
-
Voltage:
-
220v/380v
-
Product name:
-
FZY Industrial Ventilation Extractor Metal Axial Exhaust Fans
-
Color:
-
Black
-
Bearing Type:
-
Ball
-
Frequency:
-
50 Hz
-
Size:
-
200mm
-
Material:
-
Steel
Quick Details
-
Applicable Industries:
-
Construction works
-
Electric Current Type:
-
AC
-
Mounting:
-
Duct Fan
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LARISSA
-
Model Number:
-
FZY200-2
-
Voltage:
-
220v/380v
-
Product name:
-
FZY Industrial Ventilation Extractor Metal Axial Exhaust Fans
-
Color:
-
Black
-
Bearing Type:
-
Ball
-
Frequency:
-
50 Hz
-
Size:
-
200mm
-
Material:
-
Steel

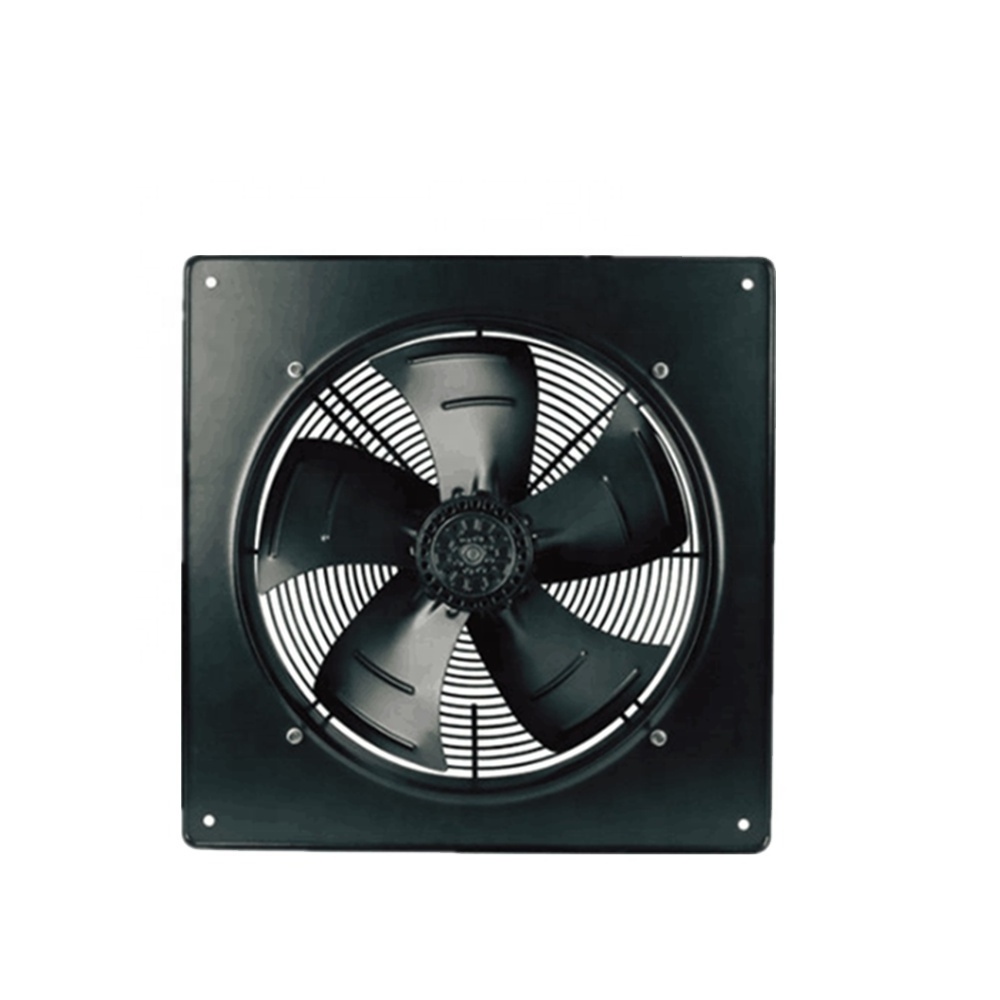

FZY Large Air Powerful Silent Industrial Ventilation Extractor Metal Axial Exhaust Commercial Air Cooling Fan
FZY series axial fan for the external rotor motor, external rotor motors of the series with a compact, easy to install, reliable operation, low noise, energy efficient features.
FZY series axial fan into operation two single-phase and three-phase asynchronous induction capacitor run. Widely used in the ground need air volume control devices, large-scale electronic equipment, medical equipment. Computers, office supplies automation, welding and other industries ventilation, can be used for building ventilation plant, ventilation, purification.
FZY series axial fan insulation class B, class F.
Voltage: single- phase capacitor run fan to 220V/50Hz, three phase fan is 380V/50Hz. We can follow customer demand for the production of different voltages, fan frequency.
Fan for ambient temperatures between -30ºC -60ºC , relative humidity less than 90%, Altitude less than 1000m.
The average fan is applicable to life more than 30,000 hours.
Must be a ground wire motor with external grounding device before connecting the fan to use effectively.
Fan characteristic curves are circles under wind conditions and does not cover screening tests.
|
MODEL |
Frequency |
Voltage |
Max . Current |
Max. Powerinput |
Speed |
Capacitance |
Noise |
Air Flow |
|
Hz |
V |
A |
W |
r/min |
µ F |
dBA |
m³ /h |
|
|
FZY2D-200 |
50 |
380 |
0.22 |
87 |
2800 |
- |
55 |
760 |
|
FZY2E-200 |
50 |
220 |
0.31 |
72 |
2800 |
2 |
54 |
755 |
|
FZY4D-200 |
50 |
380 |
0.12 |
50 |
1450 |
- |
45 |
500 |
|
FZY4E-200 |
50 |
220 |
0.1 |
30 |
1450 |
1 |
45 |
500 |
