Quick Details
-
Model Number:
-
NDC-A
-
Name:
-
Clothes/Underwear/T-shirt/Trousers Processing Needle Metal Detector
-
Detection range:
-
Clothing,textile
-
Detection method:
-
Magnetic induction
-
Detection sensitivity:
-
0.8mm steel to samll scissors
-
Detection adjustment:
-
MAX.100 steps/channel
-
Detection width:
-
650mm
-
Alarm method:
-
Buzzer,LED indicator
-
Belt speed:
-
32m/min(50HZ),40m/min(60HZ)
-
Power source:
-
AC100-240V 50-60HZ
-
Rated output:
-
Appr140W
Quick Details
-
Type:
-
Needle Detector
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Rehoo
-
Model Number:
-
NDC-A
-
Name:
-
Clothes/Underwear/T-shirt/Trousers Processing Needle Metal Detector
-
Detection range:
-
Clothing,textile
-
Detection method:
-
Magnetic induction
-
Detection sensitivity:
-
0.8mm steel to samll scissors
-
Detection adjustment:
-
MAX.100 steps/channel
-
Detection width:
-
650mm
-
Alarm method:
-
Buzzer,LED indicator
-
Belt speed:
-
32m/min(50HZ),40m/min(60HZ)
-
Power source:
-
AC100-240V 50-60HZ
-
Rated output:
-
Appr140W

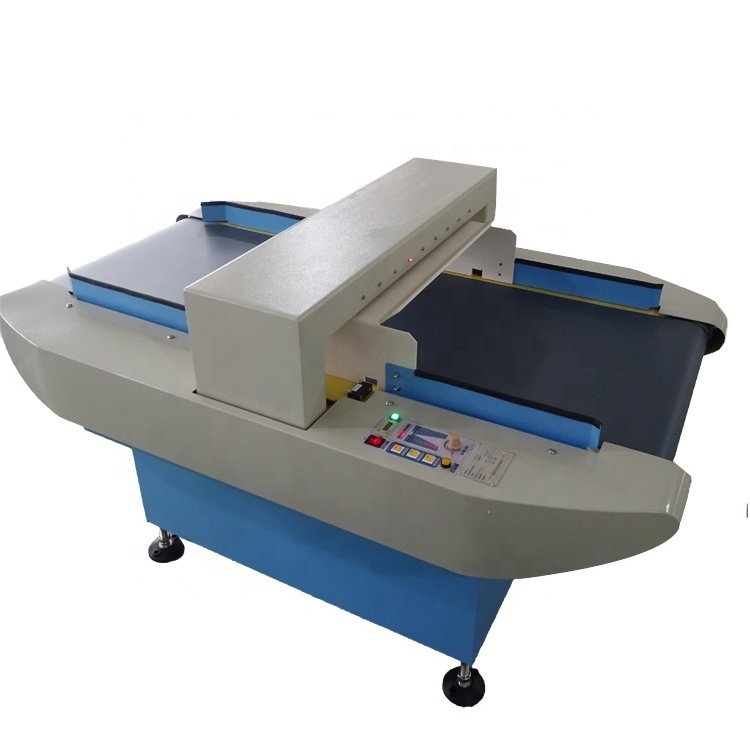

Source Factory NDC-A Clothing industry Processing Broken Needle Detector
|
Brief introduction
Detecting the ferrous metal that load or drop in raw materials and products in the field of toy costume, shoe making, chemical industry, leather, knitting, clothes, textile, bra, baby products, shoes, socks, gloves, etc. Detection lost pin and scrap iron kind of impurities in the products, provide reliable product quality assurance.
|
| Specification: |
| Model | NDC-A |
| Detection Method | Magnetic Induction |
| Detection Sensitivity | 0.8mm steel to small scissors |
| Detection Adjustment | 10 steps |
| Detection Width | 650mm |
| Alarm Method |
Buzzer, Lamp |
| Belt Speed | 32m/min(50Hz), 40m/min(60Hz) |
| Power Source | AC200V-240V 50-60Hz |
| Rated Output | Appr. 140W |
| Dimension (L*W*H) | 1650mm*1050mm*900mm |
| Weight | Appr.220kg |
| Deliver time | 15-20 workdays |
| Package | Plywooden case for package suitable for export shipment |
| Payment term | 50%T/T deposit,50% before shipping |
| Features: |
1. Cycled,9 pairs of sensor,excellent anti-disturbance performance.
2. Based on LED bar displayed control panel.
3. High accuracy detection locating technology,LED indication.
4. level setup indication and real-time sensitivity display.
5. Optional conveying mode after alarm.
6. Optional automatical restart.
7. Reliability mechanical frame design,High stable during detection.
8. Designed for universal AC power supply,switch power supply.
