Quick Details
-
Brand Name:
-
Santa
-
Dimension(L*W*H):
-
5850x 900 x 1500 mm
-
Weight:
-
1500 kgs
-
Power:
-
5.5 kgs
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Spindles:
-
12-144 spindles
-
Speed Spindles:
-
1700-2050 r/min
-
Suitable Yarn Scrope:
-
5 strands-170 strands yarn.
-
Certification:
-
ISO and CE
Quick Details
-
Application:
-
Used in making rope,mop yarn and so on
-
Production Capacity:
-
Own to yarn
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Santa
-
Dimension(L*W*H):
-
5850x 900 x 1500 mm
-
Weight:
-
1500 kgs
-
Power:
-
5.5 kgs
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Spindles:
-
12-144 spindles
-
Speed Spindles:
-
1700-2050 r/min
-
Suitable Yarn Scrope:
-
5 strands-170 strands yarn.
-
Certification:
-
ISO and CE

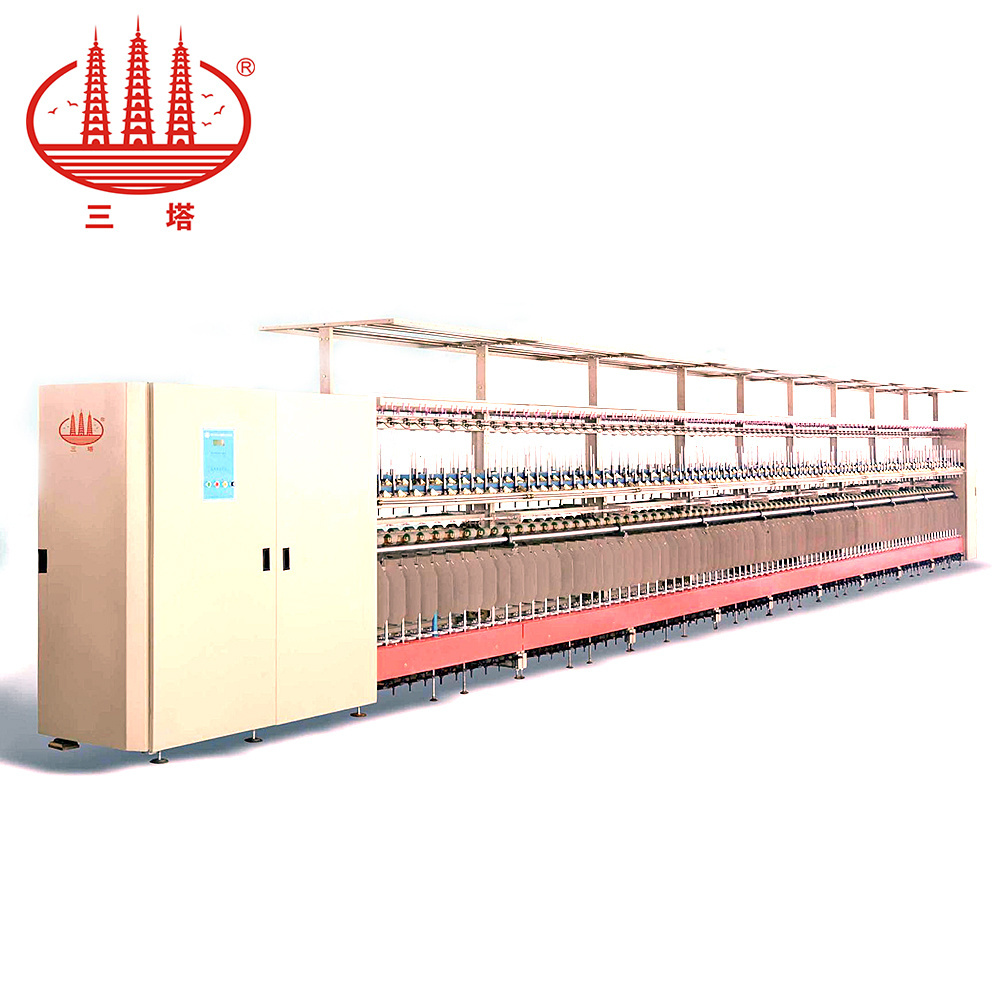

SGD-152 Economic mop yarn twisting machine mainly used for twisted mop yarn making ,like cotton yarn,polyester yarn,nylon yarn.
The machine which we had impoved is a new type twine machine.The designs is great originality.It adopt double roller and single side operation,it’s easy to maintain and it’s a big traveler( Volumes) machine in China
Main technical specifications :
|
Quantity of spindle |
12 spindles, 24 spindles |
|
Distance of spindle |
340mm |
|
Specification of traveler ring |
Φ254*38.1mm |
|
Speed of spindle |
1700-2050r/min |
|
Twisting direction |
S/Z direction |
|
Listing movement of traveler ring |
300mm,305mm |
|
Scope of twist |
35-270turns/m |
|
Operation form |
single faces operation |
|
power of motor |
5.5kw |
|
Overall dimensions |
5495mm*1100mm*2080mm |
Main suitable scope :
21counts 5 strands-170 strands yarn. 150D-15000D fiber,36tex3-25strands twisting or twine.
.
