Quick Details
-
Place of Origin:
-
Tianjin, China
-
Extended height:
-
15m
-
Closed height:
-
3m
-
Material:
-
Aluminum Alloy
-
Working temperature:
-
-45 deg C to +65 deg C
-
Max payload:
-
30kg
-
Motor Voltage:
-
DC12V or AC220V or AC110V
-
Max windload:
-
120km/h
-
Color:
-
Army green or customized color
-
No. of section:
-
7
-
used for:
-
antenna, camera or lights etc....
Quick Details
-
Brand Name:
-
Talents
-
Model Number:
-
TAL-E15
-
Type:
-
Camera pole and antenna mast
-
Place of Origin:
-
Tianjin, China
-
Extended height:
-
15m
-
Closed height:
-
3m
-
Material:
-
Aluminum Alloy
-
Working temperature:
-
-45 deg C to +65 deg C
-
Max payload:
-
30kg
-
Motor Voltage:
-
DC12V or AC220V or AC110V
-
Max windload:
-
120km/h
-
Color:
-
Army green or customized color
-
No. of section:
-
7
-
used for:
-
antenna, camera or lights etc....
About us
Product Description
1. we develop and manufacture telescopic masts,
material is aluminum allo or steel,for nearly unlimited applications,
material is aluminum allo or steel,for nearly unlimited applications,
it's used in
radio facilities,for monitoring and illumination systems in public works and
military installations, for radio amateurs, in metrology, emergency lighting, antenna
and mobile communication fields.
In addition, we are able to offer special solutions for non-standard applications.
2.especially our motorized mast has same advantages as
manual telescopic mast, it can be operated electrically
or manually, and it can be self-locking at any position.
2.especially our motorized mast has same advantages as
manual telescopic mast, it can be operated electrically
or manually, and it can be self-locking at any position.
|
technical data
|
|
|
|
|||
|
main spec.
|
Closed length:3m (Bottom base included)
Extended length: 15m (Bottom base included)
Max. payload: 30kg
Temperature: working temp:-45--+65 deg C Storage Temp:-60--+70 deg C
|
|
|
|||
|
main pole in sections
|
42-55-69-83-98-114-132mm
|
|
|
|||
|
Bottom base
|
length*width:620*220mm Thickness: 12mm
|
|
|
|||
|
Accessories
|
Motor: (AC220v 300w)---1 piece
Handle lifting bar--------------1 piece Electrical equipment control box-------------1 unit Remote-controller--------------2 pieces |
|
|
|||
|
Material
|
Main Pole: aluminum alloy
Bottom base and accessories(except the stakes): iron steel Pulling cord: stainless steel wire(OD:2mm) |
|
|
|||
|
Color
|
the whole unit will be in army green when closed, but when extended, the main pole will be in origin color of aluminum alloy only with top 4cm of each pole section in army green color.Technology: powder coating
|
|
|
|||

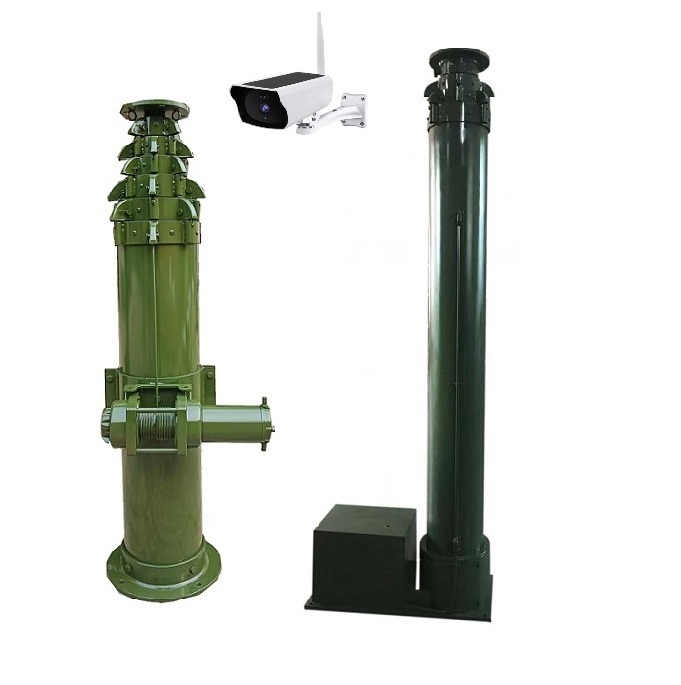

Product picture
Packing & Delivery
|
package
|
|
|
|
|||
|
plywood packed
|
one set mast with accessories wrapped by polyester tapes, then packed into a
plywood case
|
|
|
|||
After-sale service
Mast with guy wires fixed for ground use Mast with guy wires fixed for vehicle use
A. 1 year warranty
B. Installation Instructions:
1.if mount on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel stakes,
2.Determine the mounting position of telescopic mast if motorized mast hitting one ground anchor per 120 degrees.
3.Mount lifting handle bar or remote-controller to raise up motorized mast
1.if mount on vehicle,just need car clamps to fix. If mount on ground,fix the base and tripod with stainless steel stakes,
2.Determine the mounting position of telescopic mast if motorized mast hitting one ground anchor per 120 degrees.
3.Mount lifting handle bar or remote-controller to raise up motorized mast
C. Maintenance
1.Waterproof and dust proof cover should be put into outdoor storage
2.If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating
oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.
1.Waterproof and dust proof cover should be put into outdoor storage
2.If there is a situation that is not smooth or obvious noise during lifting mast,add lubricating
oil to make sure inner Mechanical parts work well. Suggest to add oil to the mast every 2-3 month.
it's better mobil 0W-20 oil
3.Regularly check the connection parts in normal condition.
3.Regularly check the connection parts in normal condition.
Catalog
we supply telescopic mast up to 35m,usually used as antenna mast,communication tower,light support,camera mast and so on,custom-made payload to 400kg,customized length,retracted,payload etc. accepted.
catalog of some common grade motorized mast as follows
|
extended height
(m)
|
No. of section
|
retracted height
(m)
|
outer tube range
(mm)
|
self weight
(kg)
|
|
4
|
3
|
1.6
|
60-80
|
34
|
|
5
|
4
|
1.65
|
50-80
|
38
|
|
6
|
5
|
1.7
|
50-90
|
42
|
|
8
|
6
|
1.8
|
40-90
|
54
|
|
10
|
7
|
1.95
|
30-90
|
58
|
|
12
|
7
|
2.2
|
30-90
|
65
|
|
15
|
8
|
2.45
|
30-105
|
78
|
|
18
|
9
|
2.7
|
30-130
|
102
|
|
20
|
9
|
2.95
|
30-130
|
110
|
|
22
|
9
|
3.15
|
30-130
|
130
|
|
25
|
10
|
3.4
|
30-150
|
154
|
|
30
|
10
|
3.85
|
30-150
|
170
|
FAQ
Q1: How long is warranty?
A1: 1 year
Q2: What's the payment term?
A2: T/T, Paypal, Western Union or Alibaba trade assurance
Q3: How to order?
A3: By email or Alibaba
Q4: How long is production?
A4: 7-10 days , if more than 10 sets, will be negotiated
Q5: Avaible for indoor or outdoor?
A5: indoor/ outdoor both are avaible,
Q6: Do we accept OEM/ ODM?
A6: Yes
Q2: What's the payment term?
A2: T/T, Paypal, Western Union or Alibaba trade assurance
Q3: How to order?
A3: By email or Alibaba
Q4: How long is production?
A4: 7-10 days , if more than 10 sets, will be negotiated
Q5: Avaible for indoor or outdoor?
A5: indoor/ outdoor both are avaible,
Q6: Do we accept OEM/ ODM?
A6: Yes
Contact info
About"Talents"
Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube
Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube
and carbon fiber tube.
Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we have built up
Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer.
We think outside the box and are continually developing new products to meet customer requirements,
Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we have built up
Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer.
We think outside the box and are continually developing new products to meet customer requirements,
what you are asking for is our motive power of task, we wish one of our products will well-meet what you demand.
