● Cyclone Collector
● Pulse bag dust collector
● Integrated design facilitates operation and movement
- Product Details
- {{item.text}}
Quick Details
-
Power (kW):
-
17.2
-
Range of Spindle Speed(r.p.m):
-
0 - 2800 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
BRAVO
-
Voltage:
-
custom
-
Weight (KG):
-
680 KG
-
Marketing Type:
-
New Product
-
Product name:
-
Fine Powder Pulverizer
-
Function:
-
Make Dry Powder
-
Name:
-
Flour Grinding Machine
-
Machine Type:
-
Grinder Mill
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Keyword:
-
Universal Herb Crusher
-
Usage:
-
Make Super Fine Powder
-
Suitable for:
-
Chemical Powder Grinder Mill
-
Key words:
-
Powder Filling Machine
Quick Details
-
Output (kg/h):
-
500 - 1500 kg/h
-
Feeding Size (mm):
-
0 - 15 mm
-
Output Size (mesh):
-
2 - 120 mesh
-
Power (kW):
-
17.2
-
Range of Spindle Speed(r.p.m):
-
0 - 2800 r.p.m
-
Place of Origin:
-
China
-
Brand Name:
-
BRAVO
-
Voltage:
-
custom
-
Weight (KG):
-
680 KG
-
Marketing Type:
-
New Product
-
Product name:
-
Fine Powder Pulverizer
-
Function:
-
Make Dry Powder
-
Name:
-
Flour Grinding Machine
-
Machine Type:
-
Grinder Mill
-
After-sales Service Provided:
-
Service Machinery Overseas
-
Keyword:
-
Universal Herb Crusher
-
Usage:
-
Make Super Fine Powder
-
Suitable for:
-
Chemical Powder Grinder Mill
-
Key words:
-
Powder Filling Machine
Products Description
BRAVO

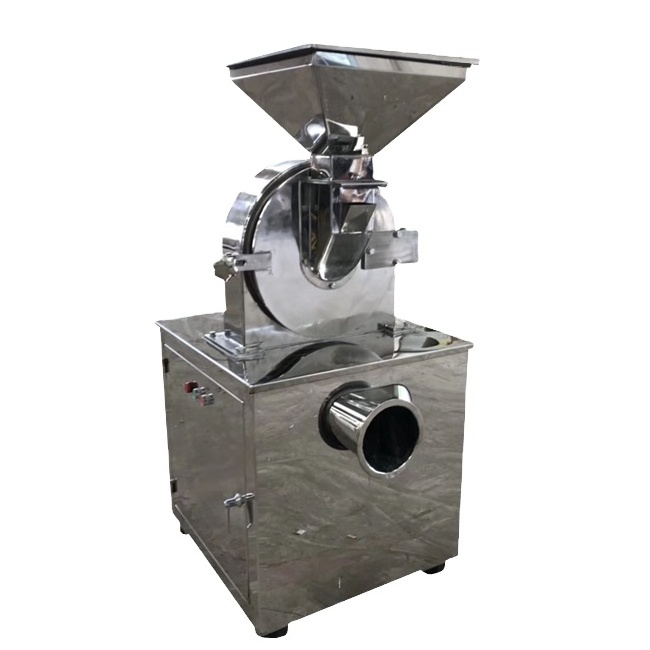

WF series multifunction grinder is used for fine grinding of soft to medium hard, high fiber content and low-oily materials, espeially dired herbs.
WF series multifunction grinder consists of feed hopper, grinding chamber, drive motor. Some model equipped cyclone with discharge valve, bag house and exhaust fan.
Material is fed into the grinding chamber by gravity or screw conveyor. Grinding is done by strong impact and shearing between the high speed rotor with movable cutters/knifes and inner serrated liners.
The particle size of the product is controlled by a screen installed in the crushing chamber, and the fineness of the output powder is controlled by replacing the screen. The product is efficient and easy to operate, and is widely used for fine grinding of soft to medium hard, high fiber content and low-oily materials in food, chemical industries.
●GMP and food grade design
● Simple structure and easy to operate
●Customized
● Various models and specifications are available
● Cyclone Collector
● Pulse bag dust collector
● Integrated design facilitates operation and movement
●
Split design
● Large processing capacity
● Cyclone + Pulse Bag Dust Collector
● Dust-free design
●Customized
● Large processing capacity
● Cyclone + Pulse Bag Dust Collector
● Dust-free design
●Customized
According to the customer's raw material characteristics, a cold air device can be added to achieve low-temperature crushing and keep the active ingredients of the raw materials from being lost.
Technical Features
1. High efficient and easy to operate and has a wide range of applications. It is a multi-functional crusher.
2. Alloy steel hammer blades.
3. GMP and food grade design.
4. Dust-free working condition due to cyclone and bag house.
5. Output size is adjustable via centrifugal classifier.
6. Feeding rate can be accurately controlled by screw feeder.
7. Robust one-piece machine with hinged door provides very good access for fast and easy cleaning and maintenance.
8. Customized production, providing a variety of configurations to choose from.
Hammer
Pin
T hammer
Turbo
Air cooling
Blade
FAQ
Q: What information should be provided to get a quotation?
A: Each mill is specially designed for each customer according to specific material, capacity, feed material size and product size. Before we can work out a detailed proposal or quotation, we have to know the following information:
1) What are you going to grinding?
2) Feeding size of raw materials?
3) Particle size after ground ?
4) Feeding capacity in kg/h ?
Q: How the machine will be delivered ?
A: The system is usually dismantled into grinding chamber, cyclone, bag house, draft fan and control cabinet for shipping. Each part is packed in box made by plywood.
Q: What kind of after sale service you can provide?
A: We have professional after sale service team who
can reach you in short notice. They can supervise the installation, do commissioning and train your workers.
can reach you in short notice. They can supervise the installation, do commissioning and train your workers.
Q: What standard models do you have?
A: We have the following standard models
Technical Parameters
|
Model
|
WF-10B
|
WF-20B
|
WF-30B
|
WF-40B
|
WF-50B
|
WF-60B
|
|||||
|
Capacity (kg/h)
|
10-50
|
60-150
|
100-300
|
160-800
|
200-1000
|
300-1500
|
|||||
|
Input size (mm)
|
≤6
|
≤6
|
≤10
|
≤12
|
≤12
|
≤12
|
|||||
|
Output size (mesh)
|
2-120
|
|
|
|
|
|
|||||
|
Power (KW)
|
2
|
4
|
5.5
|
7.5
|
11
|
15
|
|||||
|
Rotating speed (rpm)
|
6000
|
4500
|
3800
|
3400
|
3200
|
2800
|
|||||
Product Application
BRAVO WF series multifunction grinder is used for fine grinding of soft to medium hard, high fiber content and low-oily materials,espeially dired herbs.
Spices
Herb chips
Tea powder
