Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
QUANSHENG
-
Model Number:
-
TG-1690 GP328
-
Dimensions:
-
120*53*38mm
-
Frequency Range:
-
400-480MHz/136-174MHz
-
Warranty:
-
12 months
-
Name:
-
cb radio 27mhz ssb most powerful hand two way radio
-
Radio type:
-
Professional radio
-
Rated voltage:
-
DC7.2V
-
Output powder:
-
8Watts
-
Battery:
-
3500mAh Polymer Li-ion Battery
-
Packing:
-
cb radio 27mhz ssb most powerful hand two way radio
-
Lifetime:
-
4 years
Quick Details
-
Talk Range:
-
10-20KM
-
Terminal style:
-
Handheld
-
Storage Channel:
-
16
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
QUANSHENG
-
Model Number:
-
TG-1690 GP328
-
Dimensions:
-
120*53*38mm
-
Frequency Range:
-
400-480MHz/136-174MHz
-
Warranty:
-
12 months
-
Name:
-
cb radio 27mhz ssb most powerful hand two way radio
-
Radio type:
-
Professional radio
-
Rated voltage:
-
DC7.2V
-
Output powder:
-
8Watts
-
Battery:
-
3500mAh Polymer Li-ion Battery
-
Packing:
-
cb radio 27mhz ssb most powerful hand two way radio
-
Lifetime:
-
4 years

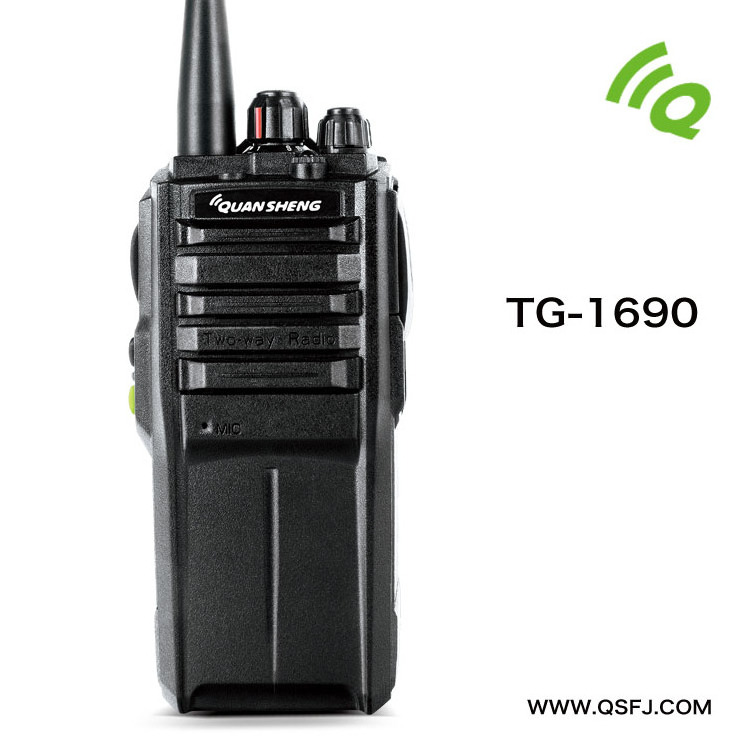

most powerful hand two way radio high power military hand two way radio - QuanSheng TG-1690 cb radio 27mhz ssb most powerful hand two way radio
This 10Watts high power QuanSheng TG-1690 is QuanSheng's new arrival item. 10-15KM long range and with 4000mAh Polymer Li-ion Battery.
The handheld radio with compact structure is perfect for professional hotel, plant, railway and secutity, etc.
01. Outpower: 10W
02. Adopting newest polymer Li-ion battery
03. Adopting imported PC material in case to make it solid abradable
04. 350 hours' super-long waiting time
05. CTCSS/DCS
06. Voice prompt ( Chinese and English )
07. High or Low power adjust
08. Squelch level adjust
09. Wide/Narrow bandwidth
10. Jacklight
11. PC programmable
12. Channel scan
13. Time-out-timer
14. Low power alarm
GENERAL
Frequency Range UHF: 400-480MHz
VHF: 136-174MHz
Channel 16
Channel Spacing 25 /12.5KHz
Operating Voltage 7.2V
Antenna Impedance 50Ω
Operating Temperature -25°C~+65°C
Frequency Stability ±2.5ppm
Battery 4000mAh (Polymer Li-ion)
Dimensions 120 X 53X 38mm
Weight 295g
Transmitter
Output Power 8W
Modulation 16KΦF3E/11KΦF3E
Maximum Deviation ≤5.0KHz (W)
Spurious Emission ≤65dB
Audio Distortion ≤5%
Receiver
Sensitivity ≤0.25/0.28μV
Adjacent Channel Selectivity 70/50dB
Intermodulation 60dB
Spurious Response Rejection 70dB
S/N 43/38dB
Rated Audio Power Output ≤0.5W
Rated Audio Distortion ≤5%
