Quick Details
-
Brand Name:
-
JYG
-
Model Number:
-
JYG-M-1.6W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
126*121*2.0mm
-
Certificate:
-
TUV CE ROHS, TUV
-
Solar cell:
-
Mono 156*156 Cell
-
Product name:
-
Sola Panel
-
Application:
-
Solar System
-
Working Voltage:
-
5V
-
Max Power:
-
1.7W
-
Front Cover:
-
PET
Quick Details
-
Type:
-
PERC, All Black
-
Panel Efficiency:
-
17%
-
Warranty:
-
1 years
-
Brand Name:
-
JYG
-
Model Number:
-
JYG-M-1.6W
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
126*121*2.0mm
-
Certificate:
-
TUV CE ROHS, TUV
-
Solar cell:
-
Mono 156*156 Cell
-
Product name:
-
Sola Panel
-
Application:
-
Solar System
-
Working Voltage:
-
5V
-
Max Power:
-
1.7W
-
Front Cover:
-
PET

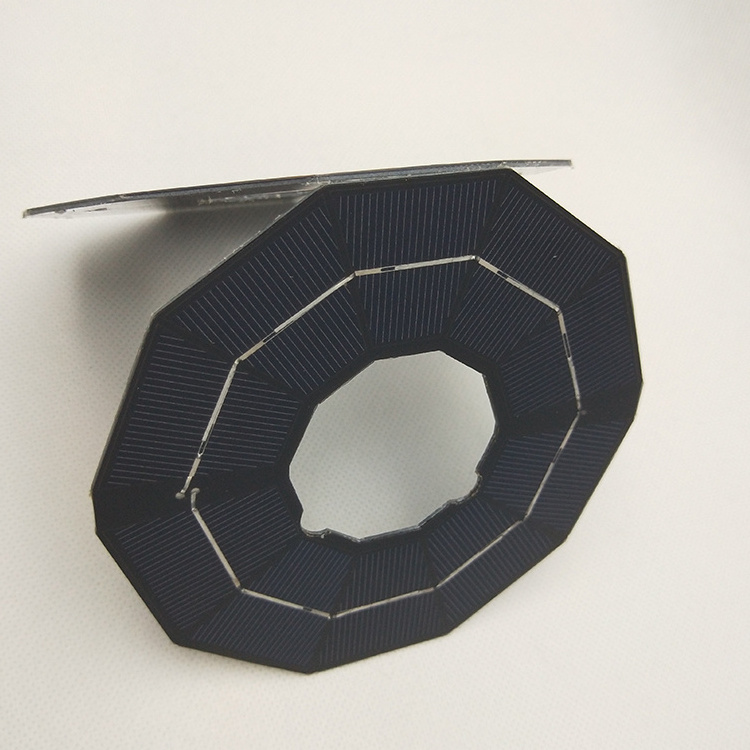

Customized 1.6w 5v Small Pet Laminated Monocrystalline Silicon Round Solar Cell Panel
Electrical Date
|
Mono |
PET laminated mono |
|
Nominal peak power(Pmax) |
1.7W ±10 % |
|
Operating Voltage(Vmp) |
5V |
|
Operating Current(Imp) |
0.34A |
|
Short-circuitcurrent(Isc) |
0.36A |
|
Open-cicuit Voltage(Voc) |
6V |
|
Optimized cell efficiency |
19.5%-20.5% |
|
Surface material |
glass |
Limits
|
Operating temperature |
- 35 ° C to +75°C |
|
Maximum system voltage |
1000VDC |
Temperature and Coefficients
|
NOCT |
48 ° C+/-2°C |
|
|
Current temperature coefficient |
%/K |
0.06+/-0.01 |
|
Voltage temperature coefficient |
mV/K |
-(78+/-10) |
|
Power temperature coefficient |
%/K |
-(0.5+/-0.05) |
Additional Data
|
Style of solar panel |
Mono PET laminated |
|
Dimensions(MM) |
L*W*H: 126*121*2.0MM ± 0.2MM |
|
Weight(KG) |
1.7W:500G |
|
Container Loading |
|
|
Warranty Period |
Replacement for manufacturing defects within 1 years |
|
Certificates |
CERoHSFCC |
|
Cells |
Monocrystalline silicon photovoltaic cell |
