Quick Details
-
Model Number:
-
SAE100 R1/ EN 853 1SN
-
Product name:
-
Hydraulic Hose High Pressure Rubber Hose
-
Material:
-
Synthetic Rubber
-
Cover:
-
Weather Resistant Synthetic Rubber
-
Certification:
-
ISO9001
-
Feature:
-
High Pressure Resistance
-
Application:
-
Petroleum Base Hydraulic Fluids
-
Color:
-
Black
-
Reinforcement:
-
High Tensile Steel Wire Braided
-
Size:
-
1/4"~2" or customized size
-
Working temperature:
-
-40~+100
Quick Details
-
Processing Service:
-
Moulding, Cutting, Logo, Crimp
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JIAYAO/OEM/ODM
-
Model Number:
-
SAE100 R1/ EN 853 1SN
-
Product name:
-
Hydraulic Hose High Pressure Rubber Hose
-
Material:
-
Synthetic Rubber
-
Cover:
-
Weather Resistant Synthetic Rubber
-
Certification:
-
ISO9001
-
Feature:
-
High Pressure Resistance
-
Application:
-
Petroleum Base Hydraulic Fluids
-
Color:
-
Black
-
Reinforcement:
-
High Tensile Steel Wire Braided
-
Size:
-
1/4"~2" or customized size
-
Working temperature:
-
-40~+100
Product Description

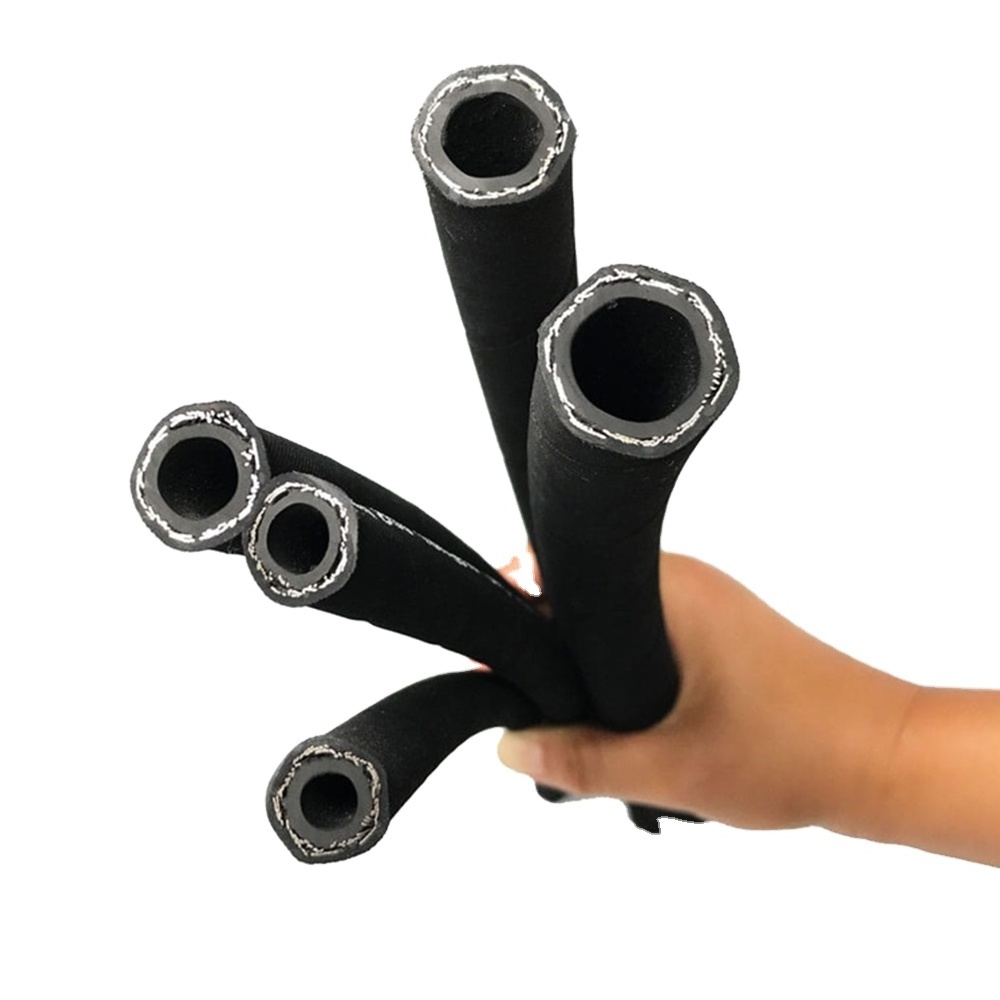

High pressure hose is made of internal rubber ,middle rubber,2,4 or 6 layers of wire-wood,and external rubber .
One Steel Wire Rubber Braided High Pressures Hydraulic Hose:This hose shall consist of an inner tube of oil resistant synthetic rubber, a single steel wire braid reinforcement, and an oil and weather resistant synthetic rubber cover.
One Steel Wire Rubber Braided High Pressures Hydraulic Hose:This hose shall consist of an inner tube of oil resistant synthetic rubber, a single steel wire braid reinforcement, and an oil and weather resistant synthetic rubber cover.
1. The inner and outer rubber layers are made of synthetic rubber with excellent oil resistance.
2. The reinforcing layer is made of high-strength chemical fiber materials.
3. The temperature of transmission medium is - 40 ~+100ºC.
Burst pressure: more than 4 times of the working pressure
2. The reinforcing layer is made of high-strength chemical fiber materials.
3. The temperature of transmission medium is - 40 ~+100ºC.
Burst pressure: more than 4 times of the working pressure
Specification
|
SAE 100 R1/EN853 1SN
|
|
|
|
|
|
|
||||||
|
Item No.
|
Size
|
I.D
|
O.D
|
W.P
|
B.P
|
Weight
|
||||||
|
|
Inch
|
mm
|
mm
|
bar
|
bar
|
g/m
|
||||||
|
04-1SN
|
1/4
|
6.4
|
13.4
|
225
|
900
|
225
|
||||||
|
05-1SN
|
5/16
|
8
|
15.2
|
215
|
860
|
260
|
||||||
|
06-1SN
|
3/8
|
9.5
|
17.3
|
180
|
720
|
340
|
||||||
|
08-1SN
|
1/2
|
12.7
|
20.3
|
160
|
640
|
415
|
||||||
|
10-1SN
|
5/8
|
16
|
23.7
|
130
|
520
|
475
|
||||||
|
12-1SN
|
3/4
|
19
|
28
|
105
|
420
|
590
|
||||||
|
16-1SN
|
1
|
25.4
|
36.2
|
87
|
348
|
875
|
||||||
|
20-1SN
|
1-1/4
|
31.8
|
43
|
62
|
248
|
1205
|
||||||
|
24-1SN
|
1-1/2
|
38.1
|
49.2
|
50
|
200
|
1405
|
||||||
|
32-1SN
|
2
|
50.8
|
62.6
|
40
|
160
|
1910
|
||||||
Application scenario
Hydraulic hoses are used in a variety of applications across industries such as construction, agriculture, mining, oil and gas, and transportation. Their features and capabilities make them indispensable in many industries.
Cooperation
JIAYAO's products are exported to more than 30 countries. We have obtained high praise from clients domestic and abroad due to the excellent quality and competitive price.
At RUNXI & JIAYAO Company, emphasis is placed on human resource development as we believe in the Group's philosophy "Organization Development through Self Development". We have competent professionally qualified and experienced staff in each of our functions.
At RUNXI & JIAYAO Company, emphasis is placed on human resource development as we believe in the Group's philosophy "Organization Development through Self Development". We have competent professionally qualified and experienced staff in each of our functions.
The Company assists & encourages its employees for their professional qualifications and also invests in developing staff through in-house, out-sourced and international training.
