Quick Details
-
Size:
-
2150X4680X5200mm
-
Material:
-
Hot dip galvanized frame
-
Warranty:
-
1 Year + Life term after sale services
-
Dimension:
-
2880x5120x5900mm
-
Assembling Range:
-
L≤24000mmxW 6800mm
-
Moving Range:
-
L 1800-2400mm x W 6800mm
-
Voltage:
-
AC three-phase four-wire system voltage AC380V50Hz
-
Water Supply:
-
DN25mm water flow rate≥120L/min
-
Ground Flatness:
-
Deviation≤10mm
-
Washing method:
-
3 Brushes
-
Applicable Vehicles:
-
Container truck, box truck, bus
-
Applicable Car Dimension:
-
L≤18000mmxW 2700mmxH≤4200mm
-
Washing Time:
-
12-15 Bus per hour
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Risense
-
Model Number:
-
CB-730
-
Size:
-
2150X4680X5200mm
-
Material:
-
Hot dip galvanized frame
-
Warranty:
-
1 Year + Life term after sale services
-
Dimension:
-
2880x5120x5900mm
-
Assembling Range:
-
L≤24000mmxW 6800mm
-
Moving Range:
-
L 1800-2400mm x W 6800mm
-
Voltage:
-
AC three-phase four-wire system voltage AC380V50Hz
-
Water Supply:
-
DN25mm water flow rate≥120L/min
-
Ground Flatness:
-
Deviation≤10mm
-
Washing method:
-
3 Brushes
-
Applicable Vehicles:
-
Container truck, box truck, bus
-
Applicable Car Dimension:
-
L≤18000mmxW 2700mmxH≤4200mm
-
Washing Time:
-
12-15 Bus per hour
Product Overview

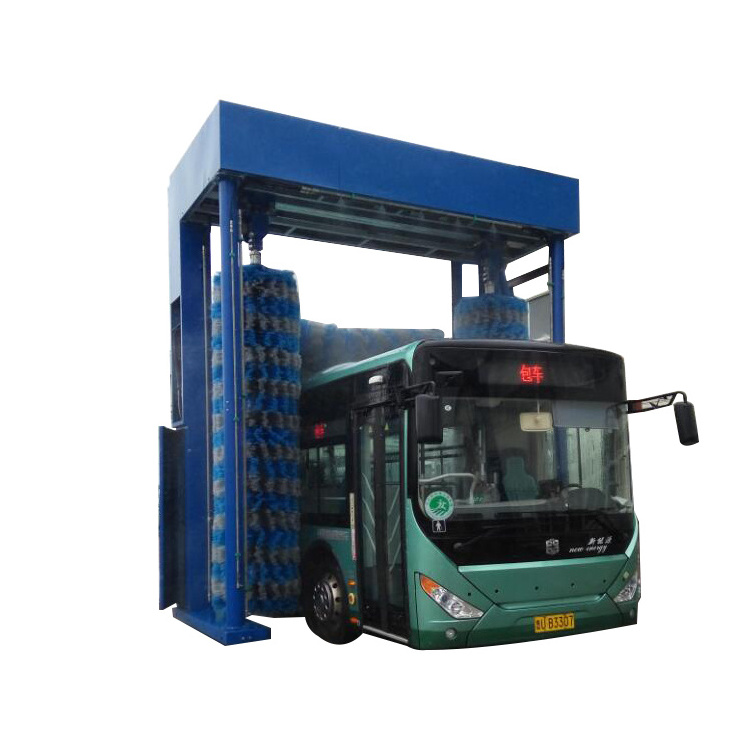

Fully Automatic bus and truck wash machine
The bus wash machine is a set of rollover bus wash equipment with 3 brushes, including 2 lateral brushes and one overhead brush.
It is usually used for washing buses and trucks whose overall dimensions don't exceed 18*4.2*2.7m. During the washing process, the machine rolls over to wash the bus while the bus remains motionless
It is usually used for washing buses and trucks whose overall dimensions don't exceed 18*4.2*2.7m. During the washing process, the machine rolls over to wash the bus while the bus remains motionless
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Assembling Range
|
24000x6580mm
|
|
2
|
Available Size For Car
|
18000x2700x4200mm
|
|
3
|
Available Car To Wash
|
Bus,truck container bus
|
|
4
|
Bus Wash Capacity
|
12-15 Bus / Hour
|
|
5
|
Main Voltage
|
AC 380v/50hz or 60Hz
|
|
6
|
Water Supply
|
DN25mm/Water flow rate≥200L/min
|
|
7
|
Air Pressure
|
0.75-0.9Mpa/Airflow rate≥0.1m³/min
|
|
8
|
Water/Electricity Consumption
|
250L/Car,0.59kw/bus
|
