Quick Details
-
Support System:
-
XP WIN7 WIN8 WIN10
-
Support Protocol:
-
ISO 9141, KWP2000, SAE J1850, CAN,J1850 VPW,J1850 PWM.
-
Certification:
-
CE FCC ROHS, CE FCC ROHS
-
Main Funtion:
-
Check Vehicle Battery System and Alternator System
-
Feature 1:
-
2.4inch LCD HD color screen
-
Feature 2:
-
Support Free Upgrade and Print Data
-
Special Features:
-
support detect battery voltage
-
IC chip:
-
STM32F103VCT6 Chip solution
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Warranty:
-
12 Months
-
Item Type:
-
OBD 2 scanner Car Battery Tester KONNWEI KW600
-
Support System:
-
XP WIN7 WIN8 WIN10
-
Support Protocol:
-
ISO 9141, KWP2000, SAE J1850, CAN,J1850 VPW,J1850 PWM.
-
Certification:
-
CE FCC ROHS, CE FCC ROHS
-
Main Funtion:
-
Check Vehicle Battery System and Alternator System
-
Feature 1:
-
2.4inch LCD HD color screen
-
Feature 2:
-
Support Free Upgrade and Print Data
-
Special Features:
-
support detect battery voltage
-
IC chip:
-
STM32F103VCT6 Chip solution

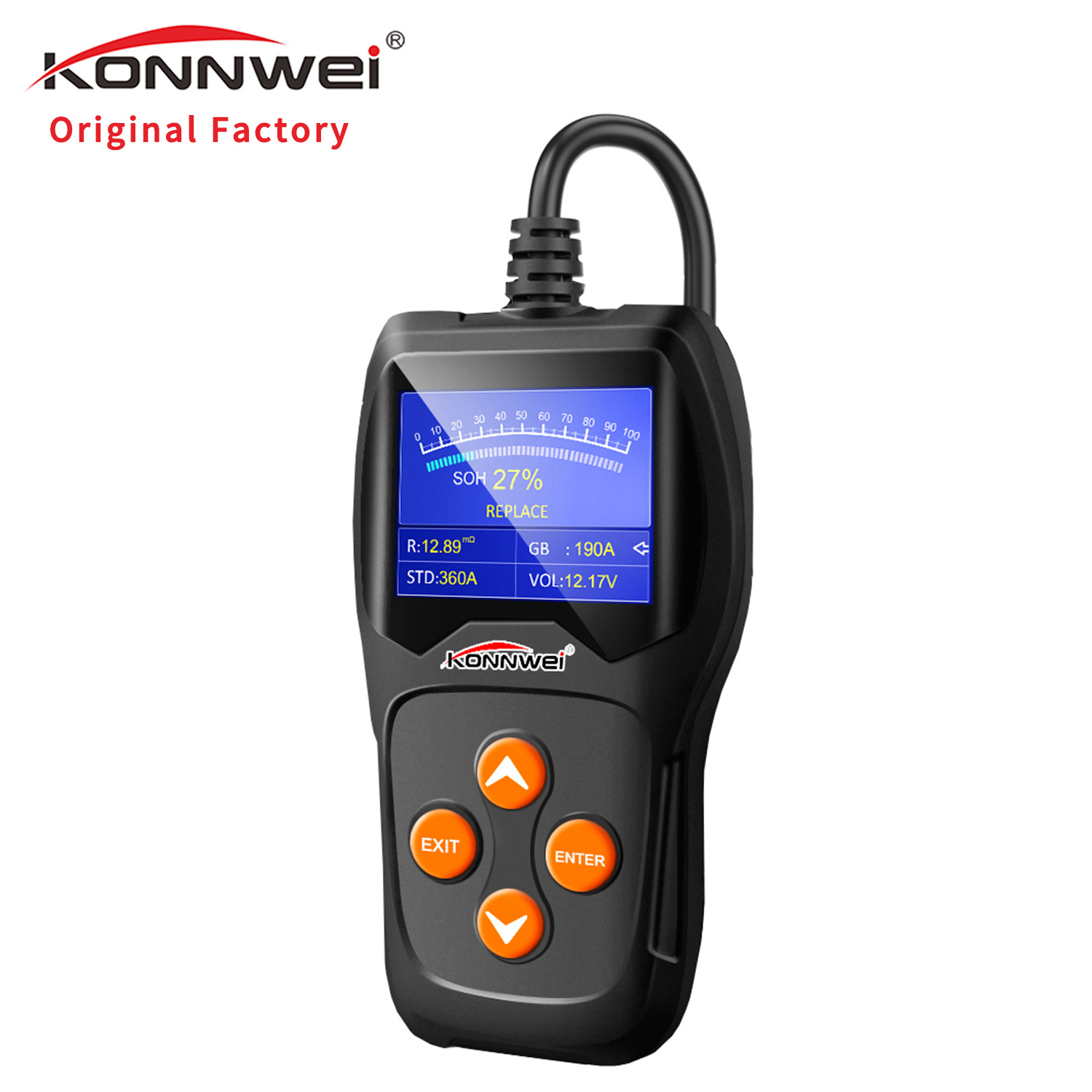

12V Automotive Battery Load Tester / Faults Detector Diagnostic Monitor Smart OBD 2 scanner Car Battery Tester KONNWEI KW600
Model: KONNWEI KW600
KONNWEI KW600 Auto Battery Analyzer For All 12V Gasoline and Diesel Cars
KONNWEI KW600 Battery Tester Key Functions
1.System voltage: 12 Volts
2.Test Result: Good, Recharge or Replace
3.Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.
4.Internal resistance value (mΩ)
5.Life in percentage (%)
6.Cranking system
7.Charging system
8.Voltage test in waveform
9.Record and re-play battery data, Life-time free update service
10.Battery test, cranking test, charging test and other additional functions.
KW600 Application:
Use a test a wide range of 12v batteries(Starting{SLI},Deep Cycled and Marine) of Wet(Flooded),VRLA or Maintenance Free (MF),Sealed Maintenance Free (SMF), Absorption Glass Mat(AGM),EFB and GEL Cell.
The major battery standards CA,CCA,BCL,MCA,JIS,SAE,EN,GB,DIN and IEC are supported.
| Mesure standard | Meaure Range |
| CCA | 100~2000 |
| BCI | 100~2000 |
| CA | 100~2000 |
| MCA | 100~2000 |
| JIS | 26A17--245H52 |
| DIN | 100~14000 |
| EN | 100~2000 |
| SAE | 100~2000 |
| GB | 100~1400 |
KONNWEI KW600 Specifications
1.Measure Standard, CCA:100-2000, BCI:100-2000, CA:100-2000
2.MCA:100-2000, JIS:26A17-24SH52, DIN:100-1400, IEC:100-1400
3.EN:100-2000, SAE:100-2000, GB:100-1400, Display: Color TFT LCD Screen
4.System Voltage:12 Volts, Input Voltage Range:8V-16V
5.Power Requirements: No internal batteries required.
6. Power on when hooked up during testing.
7.Operating Temperature:0℃-50℃, Storage Temperature:-20℃-70℃
8.Print test results and battery report on PC.
9. Life time upgrade free.
Support language: Chinese, English, French, Spanish German, Japanese, Russian, Italian, Portuguese, Polish, Dutch
