Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Henan, China
-
Rated Temperature:
-
70°C
-
Rated voltage:
-
450/750v
-
colour:
-
red, yellow, blue, white, black, brown, etc
-
Insulation:
-
PVC
-
conductor material:
-
copper
-
type:
-
stranded
-
core:
-
single
-
application:
-
building, construction
-
nature:
-
manufacturer
-
brand:
-
sanheng
Quick Details
-
Application:
-
home electric appliances,neno lights, fax machines,scanners,etc
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Henan, China
-
Rated Temperature:
-
70°C
-
Rated voltage:
-
450/750v
-
colour:
-
red, yellow, blue, white, black, brown, etc
-
Insulation:
-
PVC
-
conductor material:
-
copper
-
type:
-
stranded
-
core:
-
single
-
application:
-
building, construction
-
nature:
-
manufacturer
-
brand:
-
sanheng

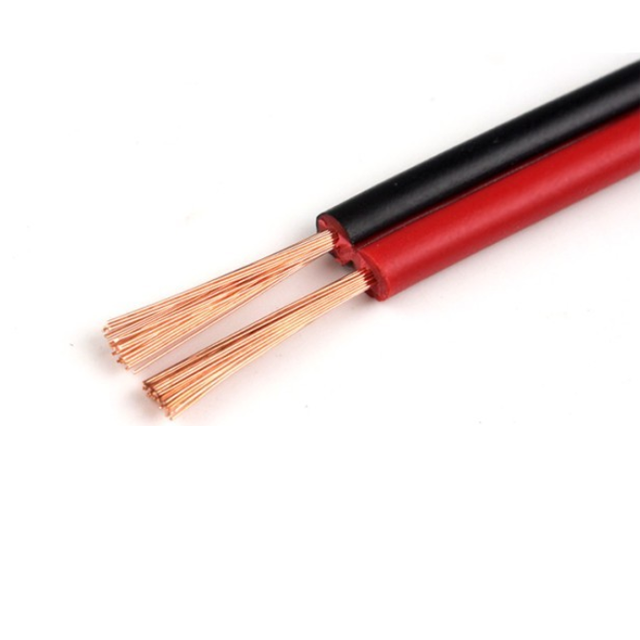

Thin diameter electrical wire 0.15mm 34awg thin flexible wire
1.
Products introduction
1.The variety and specification of the polyvinyl chloride and polyethylene insulated wire of 450/750V and below produced by the factory are complete.
2.These are used for indoor wire of civil illumination and household appliance and for installing of the equipment, instrument and power of 450/750V and below.
3.The performance completely conforms to the Standard GB5023-2-97 and JB8734-98.
4.The factory has successfully developed the fire resistant fireproof products.
2 . Specification: RV wires
|
Type |
Nominal area of conductor (mm²) |
Wire structure piece/diameter(mm) |
Rated voltage(v) |
Insulated thickness (mm) |
20°C The biggest direct current of conductor is hindered hour(Ω/km) |
70°C Insulating resistance(MΩ/km) |
|
60227 IEC 02(RV) |
1.5 |
30/0.25 |
450/750 |
0.7 |
13.3 |
0.010 |
|
2.5 |
49/0.25 |
450/750 |
0.8 |
7.98 |
0.009 |
|
|
4 |
56/0.25 |
450/750 |
0.8 |
4.95 |
0.007 |
|
|
6 |
85/0.30 |
450/750 |
0.8 |
3.30 |
0.006 |
|
|
10 |
77/0.41 |
450/750 |
1.0 |
1.91 |
0.0056 |
|
|
16 |
119/0.41 |
450/750 |
1.0 |
1.21 |
0.0046 |
|
|
25 |
189/0.41 |
450/750 |
1.2 |
0.78 |
0.0044 |
|
|
35 |
266/0.41 |
450/750 |
1.2 |
0.554 |
0.0038 |
|
|
50 |
380/0.41 |
450/750 |
1.4 |
0.386 |
0.0037 |
|
|
70 |
361/0.50 |
450/750 |
1.4 |
0.272 |
0.0032 |
|
|
95 |
481/0.50 |
450/750 |
1.6 |
0.206 |
0.0032 |
|
|
120 |
629/0.50 |
450/750 |
1.6 |
0.161 |
0.0029 |
|
|
150 |
777/0.50 |
450/750 |
1.8 |
0.129 |
0.0029 |
|
|
185 |
925/0.50 |
450/750 |
2.0 |
0.106 |
0.0029 |
|
|
240 |
1220/0.50 |
450/750 |
2.2 |
0.0801 |
0.0028 |
|
|
60227 IEC 06(RV) |
0.5 |
16/0.20 |
300/500 |
0.6 |
39.0 |
0.013 |
|
0.75 |
24/0.20 |
300/500 |
0.6 |
26.0 |
0.011 |
|
|
1.0 |
32/0.20 |
300/500 |
0.6 |
19.5 |
0.010 |
|
|
60227 IEC 08(RV-90) |
0.5 |
16/0.20 |
300/500 |
0.6 |
39.0 |
0.013 |
|
0.75 |
24/0.20 |
300/500 |
0.6 |
26.0 |
0.012 |
|
|
1.0 |
32/0.20 |
300/500 |
0.6 |
19.5 |
0.010 |
|
|
1.5 |
30/0.25 |
300/500 |
0.7 |
13.3 |
0.009 |
|
|
2.5 |
49/0.25 |
300/500 |
0.8 |
7.98 |
0.009 |
