- Product Details
- {{item.text}}
Quick Details
-
Power:
-
2X30KW
-
Dimension(L*W*H):
-
1200*1300*2300
-
Weight:
-
7800 kg
-
Theoretical productivity:
-
90CBM/h
-
Discharging height:
-
4m
-
Mixing host model:
-
JS15OO
-
Nominal capacity of mixing host:
-
1500L
-
Maximum aggregate particle size:
-
60mm
-
Aggregate bin capacity:
-
3X15cbm
-
Powder bin capacity:
-
3X100Ton
-
Conveying capacity:
-
500t/h
-
Batching station batching capacity:
-
2400L
-
Standard installed capacity:
-
153kw
Quick Details
-
Machine Type:
-
Production line
-
Place of Origin:
-
xuzhou
-
Brand Name:
-
top brand
-
Power:
-
2X30KW
-
Dimension(L*W*H):
-
1200*1300*2300
-
Weight:
-
7800 kg
-
Theoretical productivity:
-
90CBM/h
-
Discharging height:
-
4m
-
Mixing host model:
-
JS15OO
-
Nominal capacity of mixing host:
-
1500L
-
Maximum aggregate particle size:
-
60mm
-
Aggregate bin capacity:
-
3X15cbm
-
Powder bin capacity:
-
3X100Ton
-
Conveying capacity:
-
500t/h
-
Batching station batching capacity:
-
2400L
-
Standard installed capacity:
-
153kw
Contact way
Carlota ji
Whatsapp/Tel:
+86-18637752754
Wechat:
+86-18637752754
Email:
carlota@oriemac.com
Product features

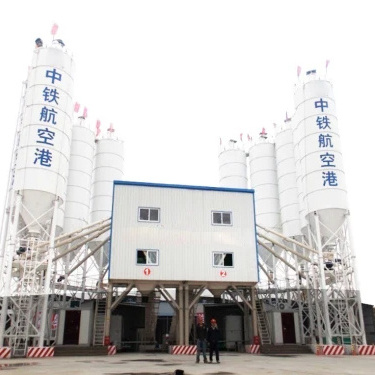

Fixed / Mobile Concrete Batching Plant HZS90VT 90m3/h Concrete Batch Plant
1. Production is more efficient.
2. Control more intelligently.
3. More accurate measurement.
4. Stir more evenly.
5. More comprehensive customization.
6. Environmental protection is more cutting-edge.
7. Deliver higher quality.
Specifications
|
Item
|
Unit
|
Parameter
|
|
Theoretical productivity
|
m³/h
|
90
|
|
Discharging height
|
m
|
4
|
|
Mixing host model
|
-
|
JS15OO
|
|
Stirring power
|
Kw
|
2X30
|
|
Nominal capacity of mixing host
|
L
|
1500
|
|
Production cycle
|
s
|
60
|
|
Maximum aggregate particle size
|
mm
|
60
|
|
Aggregate bin capacity
|
m³
|
3X15
|
|
Powder bin capacity
|
t
|
3X100
|
|
Batching station batching capacity
|
L
|
2400
|
|
Inclined belt conveyor conveying capacity
|
t/h
|
500
|
|
Aggregate measurement range and accuracy
|
kg
|
(720~2400)±2%
|
|
Cement measurement range and accuracy
|
kg
|
(360~1200)±1%
|
|
Admixture measurement range and accuracy
|
kg
|
(180~600)±1%
|
|
Water measurement range and accuracy
|
kg
|
(120~400)±1%
|
|
Admixture measurement range and accuracy
|
kg
|
(12~40)±1%
|
|
Standard installed capacity
|
kw
|
153
|
