Quick Details
-
Max. Resolution:
-
203DPI
-
Brand Name:
-
Cashino
-
Place of Origin:
-
Fujian, China
-
Accessory specification:
-
All provided
-
Keyword:
-
Kiosk thermal printer
-
Type:
-
Thermal
-
Paper width:
-
80mm
-
Print width:
-
24/48/72/80mm
-
Print command:
-
ESC/POS
-
Weight:
-
3kgs
-
Power adapter:
-
24V
-
Driver:
-
Andorid/Linux
Quick Details
-
Max Paper Size:
-
72mm
-
Black Print Speed:
-
250MM/S
-
Color Print Speed:
-
None
-
Max. Resolution:
-
203DPI
-
Brand Name:
-
Cashino
-
Place of Origin:
-
Fujian, China
-
Accessory specification:
-
All provided
-
Keyword:
-
Kiosk thermal printer
-
Type:
-
Thermal
-
Paper width:
-
80mm
-
Print width:
-
24/48/72/80mm
-
Print command:
-
ESC/POS
-
Weight:
-
3kgs
-
Power adapter:
-
24V
-
Driver:
-
Andorid/Linux

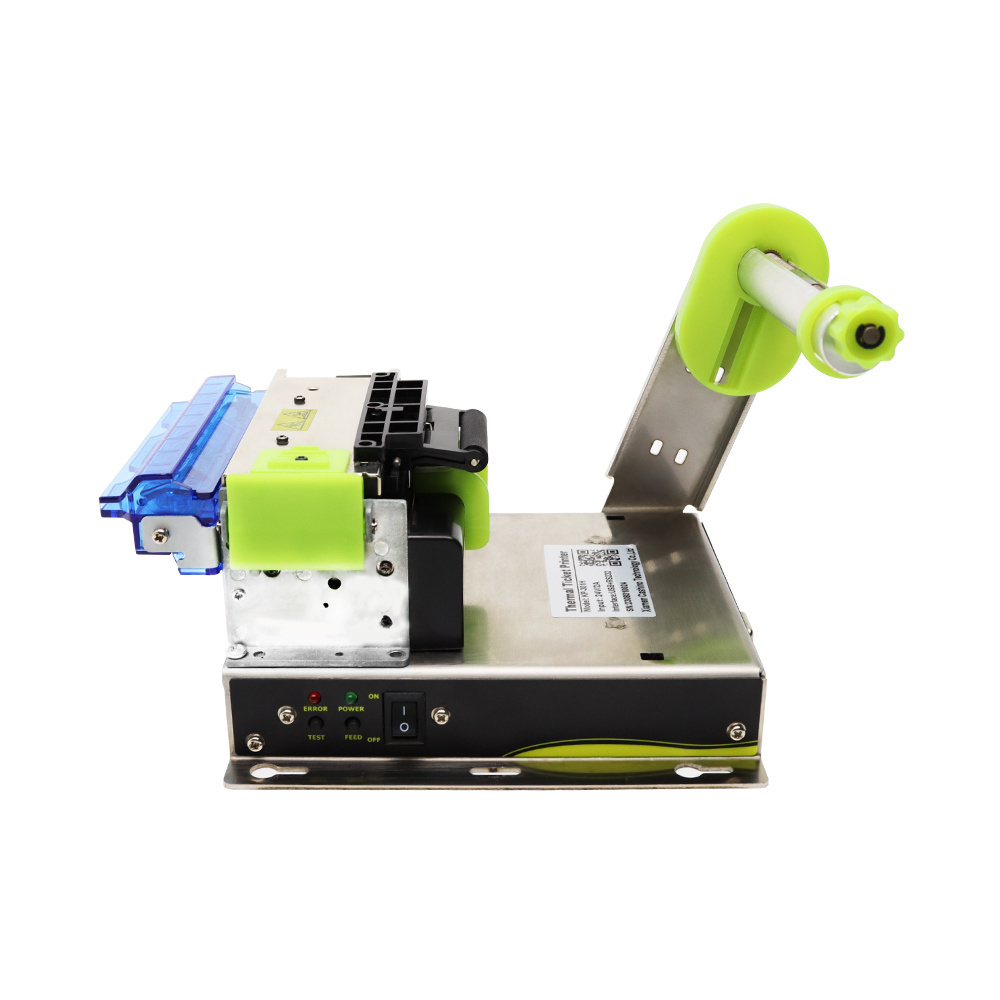

Cashino KP-301H High Quality 3-Inch USB Thermal Kiosk Printer for Queuing Machines With Ready Stock
Product Display
Product Parameters
|
Products model
|
|
KP-301H
|
|
||
|
Printing
|
Printing method
|
Direct Thermal
|
|
||
|
|
Print width(max.)
|
72mm/80mm
|
|
||
|
|
Print resolution
|
203 dpi
|
|
||
|
|
Print speed(max.)
|
250mm/s
|
|
||
|
Paper
|
Type
|
Thermal paper/Thermal label
|
|
||
|
|
Width
|
80/82.5mm
|
|
||
|
|
Roll paper diameter(O.D)
|
150mm
|
|
||
|
|
Roll core inner diameter(Min.)
|
18mm
|
|
||
|
|
Thickness
|
0.055 to 0.150mm
|
|
||
|
Character set
|
Font
|
Font A:12x24;Font B:9x17 GBK:24x24
|
|
||
|
|
Alphanumeric
|
95
|
|
||
|
|
Code page
|
48
|
|
||
|
Barcode
|
1D barcode
|
UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, CODE39, ITF, CODEBAR, CODE128, CODE93
|
|
||
|
|
2D barcodes
|
QR Code
|
|
||
|
Interface
|
Standard
|
RS232C+USB / RS232C+USB+LAN
|
|
||
|
Sensor
|
Standard
|
Paper end, paper near end ,cover open,cutter jam,paper taken
|
|
||
|
|
Optional
|
Black mark,Label gap
|
|
||
|
Auto-cutter
|
Cutting method
|
Full/Partial cut
|
|
||
|
|
Cutter life
|
1,000,000cuts
|
|
||
|
Power suppy
|
AC
|
AC100V-240V 50/60Hz
|
|
||
|
|
DC
|
24VDC/2A
|
|
||
|
Reliability
|
TPH Life
|
100km
|
|
||
|
Dimensions (WxDxH mm)
|
Horizontal
|
141.1x146.3x79.3mm
|
|
||
|
|
Vertical
|
114.8x78x170.3mm
|
|
||
|
Weight
|
|
3KG
|
|
||
|
Emulation (Compatible)
|
|
ESC/POS
|
|
||
|
Software
|
Driver
|
Windows Driver,Linux Driver,OPOS Driver
|
|
||
|
|
SDK
|
Windows SDK,Android SDK
|
|
||
|
Environment
|
Temperature
|
Operating:0°C~50°C
Storage:-20°C ~ 60°C |
|
||
|
|
Humidity
|
Operating:10%RH~80%RH
Storage:10%~90%RH |
|
||
Certifications
Exhibition
Our Customer Says
Payment & Delivery
FAQ
Q1.How could I get a sample?
A1:Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.
Q2.Sample time?
A2:Existing items: Within 1-2 days.
Q3.Whether you could make our brand on your products?
A3:Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.
Q4.Whether you could make your products by our color?
A4:Yes, The color of products can be customized if you can meet our MOQ.
Q5.How to guarantee the quality of your products?
A5: 1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
