Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Indon
-
Model Number:
-
40-450mm
-
Application:
-
Supporting System, window doors.
-
Surface treatment:
-
Galvanized Coated
-
Type:
-
Light Steel Channel
-
Material:
-
Q235 Q345
-
Thickness:
-
Depends on request
-
Color:
-
Zinc Color
-
Length:
-
1m-12m
Quick Details
-
Grade:
-
Pre-gal Steel
-

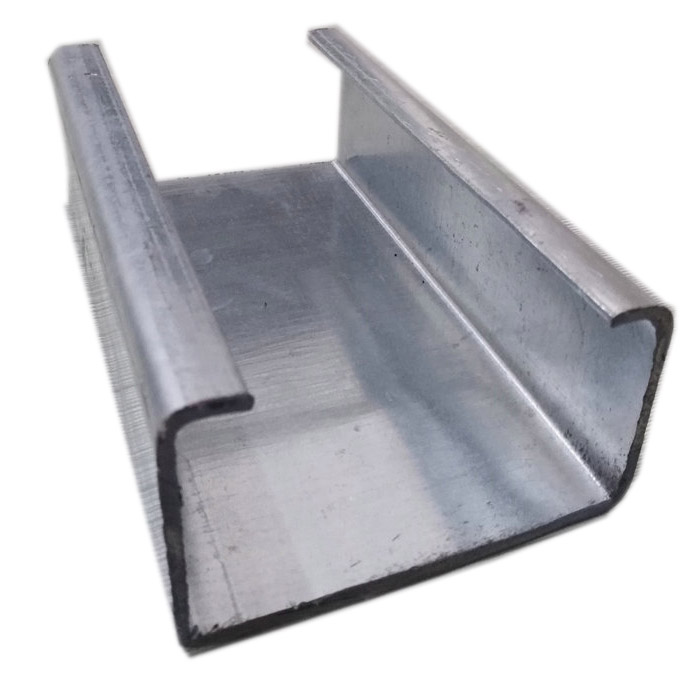

Shape:
-
C Channel
-
Tolerance:
-
within +-2mm on sizes
-
Place of Origin:
-
China
-
Brand Name:
-
Indon
-
Model Number:
-
40-450mm
-
Application:
-
Supporting System, window doors.
-
Surface treatment:
-
Galvanized Coated
-
Type:
-
Light Steel Channel
-
Material:
-
Q235 Q345
-
Thickness:
-
Depends on request
-
Color:
-
Zinc Color
-
Length:
-
1m-12m
Available Sizes as below drawings:
Specification of C Channel | |||
80*40*20*2.5 | 140*50*20*2.5 | 180*60*20*2.5 | 220*60*20*2.5 |
80*40*20*3 | 140*50*20*3 | 180*60*20*3 | 220*60*20*3 |
100*50*20*2.5 | 160*50*20*2.5 | 180*70*20*2.5 | 220*70*20*2.5 |
100*50*20*3 | 160*50*20*3 | 180*70*20*3 | 220*70*20*3 |
120*50*20*2.5 | 160*60*20*2.5 | 200*50*20*2.5 | 250*75*20*2.5 |
120*50*20*3 | 160*60*20*3 | 200*50*20*3 | 250*75*20*3 |
120*60*20*2.5 | 160*70*20*2.5 | 200*60*20*2.5 | 280*80*20*2.5 |
120*60*20*3 | 160*70*20*3 | 200*60*20*3 | 280*80*20*3 |
120*70*20*2.5 | 180*50*20*2.5 | 200*70*20*2.5 | 300*80*20*2.5 |
120*70*20*3 | 180*50*20*3 | 200*70*20*3 | 300*80*20*3 |
Surface Treatment | HDG(hot dipped galvanized ),Pre-galvanized,Electrical-galvanizing(yellow or white),powder coating(Black,Green,White,Grey,Blue)etc . |
Dimensions | 13/16"x 1-5/8" or 1-5/8" x 1-5/8",1-1/2"x1-1/2",3/4"x1-1/2" |
Lengths | Either 10FT or 20FT or cut into the length according to clients' requirements |
Size | 41mm*21mm or 41mm*41mm back to back 41*41mm, 41*62mm,41*82mm,and so on |
Thickness | 1.5mm, 1.8mm,1.9mm,2.0mm, 2.3mm,2.5mm ,2.7mm, |
Holes | 28*14mm,18*9mm,13.5*63mm,11*25mm,11*30mm etc |
Style | Plain or Slotted |
MOQ | 5 Tons |
Packaging | In Bundles and fasten with steel strips or by wooden pallets |
Our factory has 200 workers, 100000m 2 workshop, 8 years experience,
,ISO,COC were certificated, two hours reach Tianjin port, this is how we keep
superior quality and competitive price .
Can accept each country ' s import standard and inspection.
