Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TKG/OEM
-
Model Number:
-
YJV&YJLV
-
Certificate:
-
ISO 9001&ISO 14001
-
Standard:
-
ASTM BS DIN IEC
Quick Details
-
Insulation Material:
-
XLPE
-
Application:
-
elecric transmission
-
Conductor Material:
-
Cu/Alu
-
Jacket:
-
PVC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TKG/OEM
-
Model Number:
-
YJV&YJLV
-
Certificate:
-
ISO 9001&ISO 14001
-
Standard:
-
ASTM BS DIN IEC
ODM/OEM Cable Factory More than 15years

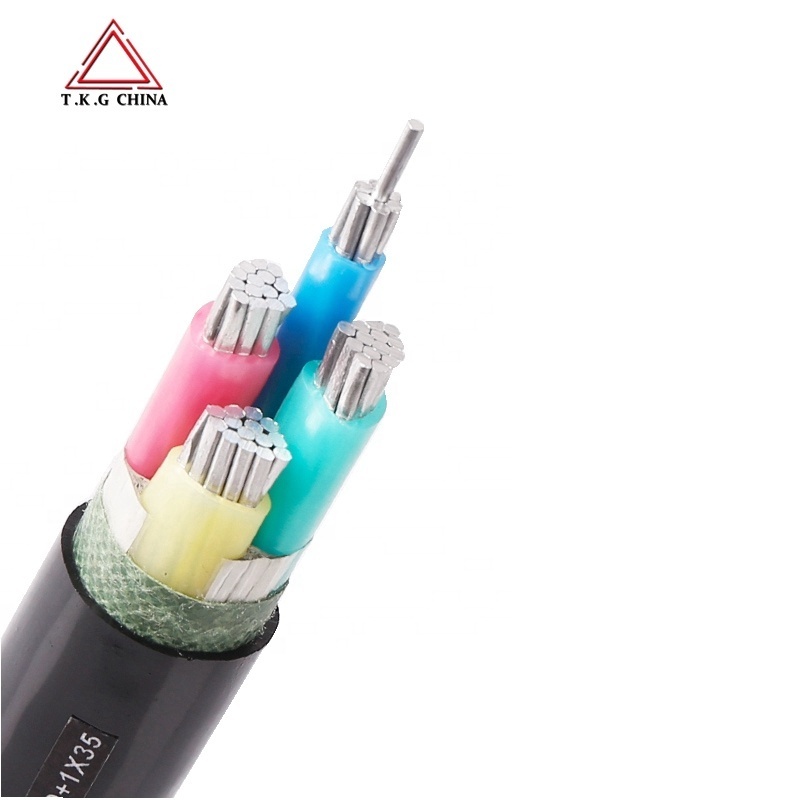

YJV&YJL XLPE insulated and sheathed power cable
•Application:
It is used for electric transmission and distribution system with rated voltage of 0/6KV/1KV.
•Construction:
1.Stranded copper or aluminum conductor
2.XLPE insulation
3.Filler and tape
4.PVC sheath
•Performance:
|
Nom.Cross
Sectional Area mm2 |
Structure No.xmm | Approx O.D mm | Approx Weight kg/km | |
| Cu | Al | |||
| 3*10 | 7*1.35 | 15 | 450 | 260 |
| 3*16 | 7*1.70 | 17 | 640 | 340 |
| 3*25 | 7*2.14 | 21 | 940 | 470 |
| 3*35 | 7*2.52 | 23 | 1260 | 600 |
| 3*50 | 10*2.52 | 27 | 1670 | 730 |
| 3*70 | 14*2.52 | 30 | 2280 | 970 |
| 3*120 | 24*2.52 | 38 | 3790 | 15040 |
| 3*150 | 30*2.52 | 42 | 4750 | 1940 |
| 3*185 | 37*2.52 | 45 | 5654 | 2248 |
| 3*10+6 | 7*1.35 | 16 | 461 | 234 |
| 3*16+10 | 7*1.70 | 18 | 679 | 322 |
| 3*25+16 | 7*2.14 | 22 | 1065 | 505 |
| 3*35+16 | 7*2.52 | 24 | 1360 | 615 |
| 3*50+25 | 10*2.52 | 28 | 1901 | 816 |
| 3*70+35 | 14*2.52 | 31 | 2585 | 1085 |
| 3*95+50 | 19*2.52 | 36 | 3518 | 1440 |
| 3*120+70 | 24*2.52 | 40 | 4443 | 1766 |
| 3*150+70 | 30*2.52 | 44 | 5326 | 2100 |
| 3*185+95 | 37*2.52 | 48 | 6682 | 2650 |
| 4*70 | 14*2.52 | 32 | 2928 | 1192 |
| 4*95 | 19*2.52 | 37 | 3954 | 1598 |
| 4*120 | 24*2.52 | 42 | 4925 | 1949 |
| 4*150 | 30*2.52 | 46 | 6238 | 2517 |
| 4*185 | 37*2.52 | 51 | 6562 | 3091 |
