Quick Details
-
Brand Name:
-
BAIJIANG
-
Fork Length:
-
1150mm
-
Fork Width:
-
170mm
-
Weight (KG):
-
560 kg
-
Product name:
-
All-electric forklift truck
-
Lift Drive / Actuation:
-
Electric
-
Walking mode:
-
Electric
-
Fork thickness:
-
55mm
Quick Details
-
Min. Lifting Height:
-
85mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
China
-
Brand Name:
-
BAIJIANG
-
Fork Length:
-
1150mm
-
Fork Width:
-
170mm
-
Weight (KG):
-
560 kg
-
Product name:
-
All-electric forklift truck
-
Lift Drive / Actuation:
-
Electric
-
Walking mode:
-
Electric
-
Fork thickness:
-
55mm

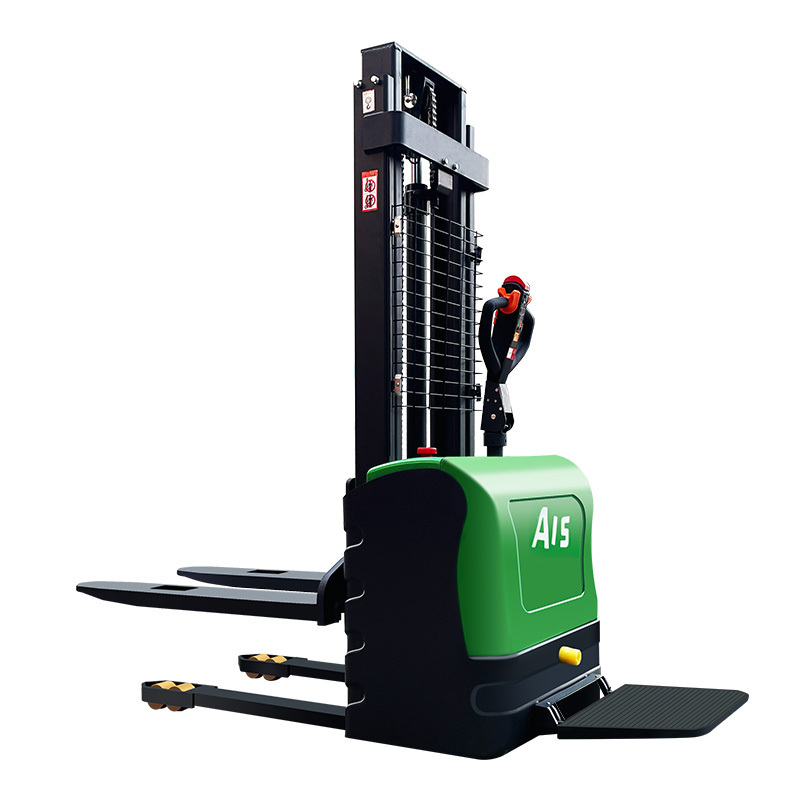

PRODUCT APPEARANCE
Product name:
Electric stacker truck
.
The
Electric stacker truck
is an industrial handling vehicle powered
by an electric motor and powered by a battery to carry out pallet cargo.
A variety of wheeled handling vehicles for handling, stacking,
stacking and short-distance transport operations.
Equipped with station pedal, can be manned operation.
PARAMETER
Please refer to the following table for the specific
parameters of the
Electric stacker truck
.
The fork
can be widened and lengthened, you are welcome
to submit your needs to our customization.
|
Product name
|
Electric stacker truck
|
|
|
|
|
|
|||||
|
Model number
|
|
L15
|
|
|
|
|
|||||
|
Rated lifting weight
|
kg
|
1500
|
|
|
|
|
|||||
|
The lifting height of the gantry
|
mm
|
1600
|
2000
|
2500
|
3000
|
3500
|
|||||
|
Number of gantry
|
|
1
|
2
|
2
|
2
|
2
|
|||||
|
Vehicle weight
|
kg
|
560
|
580
|
600
|
620
|
640
|
|||||
|
Vehicle length
|
mm
|
2180
|
|
|
|
|
|||||
|
Vehicle width
|
mm
|
825
|
|
|
|
|
|||||
|
Vehicle height
|
mm
|
1970
|
1500
|
1740
|
2000
|
2300
|
|||||
|
Load center distance
|
mm
|
500
|
|
|
|
|
|||||
|
The outside width of the fork
|
mm
|
690
|
|
|
|
|
|||||
|
Fork width
|
mm
|
170
|
|
|
|
|
|||||
|
Fork length
|
mm
|
1150
|
|
|
|
|
|||||
|
Fork thickness
|
mm
|
55
|
|
|
|
|
|||||
|
Walking mode
|
|
Electric walking
|
|
|
|
|
|||||
|
Lifting mode
|
|
Electric lifting
|
|
|
|
|
|||||
|
Wheels
|
|
PU
|
|
|
|
|
|||||
|
Brake mode
|
|
Electromagnetic braking
|
|
|
|
|
|||||
|
Rated voltage of battery
|
V/Ah
|
48V/32Ah
|
|
|
|
|
|||||
|
Motor power for boosting
|
KW
|
2.2
|
|
|
|
|
|||||
|
Frame material
|
|
8mm C-section steel
|
|
|
|
|
|||||
|
Drive motor power
|
KW
|
0.75
|
|
|
|
|
|||||
PRODUCT ADVANTAGES
ABOUT US
Shanghai Baijiang lndustrial Technology Co., Ltd.is a
”production, research and development, sales"
integration ofindustrial technology Co., LTD"
OUR HONOR
Our enterprise qualification in quality, service, integrity
won a number of AAA certificates.Our cars have the most
authoritative certificates in the world.
*The above certificates are all owned by the company, prohibited to steal.
OUR HONOR
Shanghai Baijiang lndustrial Technology Co., Ltd.is the
distributor of Baijiang Forklift trucks in China
Baijiang Forklift has a complete operation system in China,
including forklift production base, sales and service
center.And quickly become China's largest e-commerce
platform top sales merchants.
Up to now, we have been cooperating with top
e-commerce suppliers in China for many years.
China's four major e-commerce
platforms
: JD,Taobao,TEMU,Tiktok
retailers have our strategic cooperation needs.
OUR FACTORY
Quipment innovation is the key to product quality. Every
car from forging to retail has to go through stamping-
welding - painting-assembly - finished product -
inspection - commissioning testing. It takes multiple steps
to reach you.
In order to ensure that each car meets our standards, our
production workshop has a clear division of labor:
operation group, packaging group, quality control group.
Test group, engineering group.
OUR COMPANY
We have a strong sales team and professional engineering
and technical personnel.
Since its inception has always followed the "quality of
survival, credibility and development" business
philosophy, adhere to the "cost reduction, innovation,
continuous improvement" quality policy.
2 meetings a week. It is the only way for us to innovate.
CONSUMER FEEDBACK
Consumer feedback graphs from around the world
and photos from partners around the world.
*Thank the partners for our love, your support is our driving force.
PRODUCT LOADING
Logistics support :FedEx and other four international
express companies as well as SF Express, Shentong, etc.
The details page only shows part of the logistics logo.
In order to meet your shipping requirements, please
contact us for specific logistics.
FAQ
Q1: Who are we?
A:Shanghai Baijiang Industrial Technology Co., Ltd. was established in 2021, the company is located in China's economically developed Jiangsu, Zhejiang and Shanghai belt, is a collection of "production, research and development, sales" integration of industrial technology Co., LTD. The company is mainly engaged in the design and development of material handling equipment,intelligent three-dimensional warehouse, intelligent conveying and sorting system, AGV and its system, supply chain integrated system software and intelligent manufacturing system overall solution. Our company has passed ISO9000, CE, UL, SGS and other international quality certification. Since its inception has always followed the "quality of survival, credibility and development" business philosophy, adhere to the "cost reduction, innovation, continuous improvement" quality policy, is willing to work with you to create brilliant, build a dream sailing!
Q2: How long does it take to deliver?
A:The usual delivery time is 10-20 days after we receive the advance payment. For some standard products, we may have them in stock and can deliver them immediately.
Q3: What can you buy from us?
A:Manual hydraulic truck, semi-electric stacker, all-electric stacker, electric truck, manual lifting truck, electric lifting
truck, etc.
Q4: Do you provide customized services?
A:Yes, our company can provide customized products according to your requirements, welcome your special requirements.
Q5: Why buy from us instead of other suppliers?
A:Our company has a complete supply chain system, can quickly integrate products, to ensure high quality and reasonable prices,our products use plate chain, pure copper motor, thickened C-type steel door frame, lead-acid maintenance-free battery, to ensure reliable product quality, in addition to provide customers with better service, has won the recognition of a large number of consumers.
Q6: How long is the product warranty?
A:Core parts warranty 1 year, the core parts are: pressure vessel, bearing, gear, pump.
Q7: What is the payment method?
A:You can use T/T, letter of credit and other payment methods.
Q8: What certificates do you have?
A:Trademark registration certificate, special equipment production license, testing certificate, CE.
A:Shanghai Baijiang Industrial Technology Co., Ltd. was established in 2021, the company is located in China's economically developed Jiangsu, Zhejiang and Shanghai belt, is a collection of "production, research and development, sales" integration of industrial technology Co., LTD. The company is mainly engaged in the design and development of material handling equipment,intelligent three-dimensional warehouse, intelligent conveying and sorting system, AGV and its system, supply chain integrated system software and intelligent manufacturing system overall solution. Our company has passed ISO9000, CE, UL, SGS and other international quality certification. Since its inception has always followed the "quality of survival, credibility and development" business philosophy, adhere to the "cost reduction, innovation, continuous improvement" quality policy, is willing to work with you to create brilliant, build a dream sailing!
Q2: How long does it take to deliver?
A:The usual delivery time is 10-20 days after we receive the advance payment. For some standard products, we may have them in stock and can deliver them immediately.
Q3: What can you buy from us?
A:Manual hydraulic truck, semi-electric stacker, all-electric stacker, electric truck, manual lifting truck, electric lifting
truck, etc.
Q4: Do you provide customized services?
A:Yes, our company can provide customized products according to your requirements, welcome your special requirements.
Q5: Why buy from us instead of other suppliers?
A:Our company has a complete supply chain system, can quickly integrate products, to ensure high quality and reasonable prices,our products use plate chain, pure copper motor, thickened C-type steel door frame, lead-acid maintenance-free battery, to ensure reliable product quality, in addition to provide customers with better service, has won the recognition of a large number of consumers.
Q6: How long is the product warranty?
A:Core parts warranty 1 year, the core parts are: pressure vessel, bearing, gear, pump.
Q7: What is the payment method?
A:You can use T/T, letter of credit and other payment methods.
Q8: What certificates do you have?
A:Trademark registration certificate, special equipment production license, testing certificate, CE.
