- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
VOHOBOO
-
Fork Length:
-
253mm
-
Fork Width:
-
1650mm
-
Overall Dimensions:
-
Customized
-
Weight (KG):
-
382 kg
-

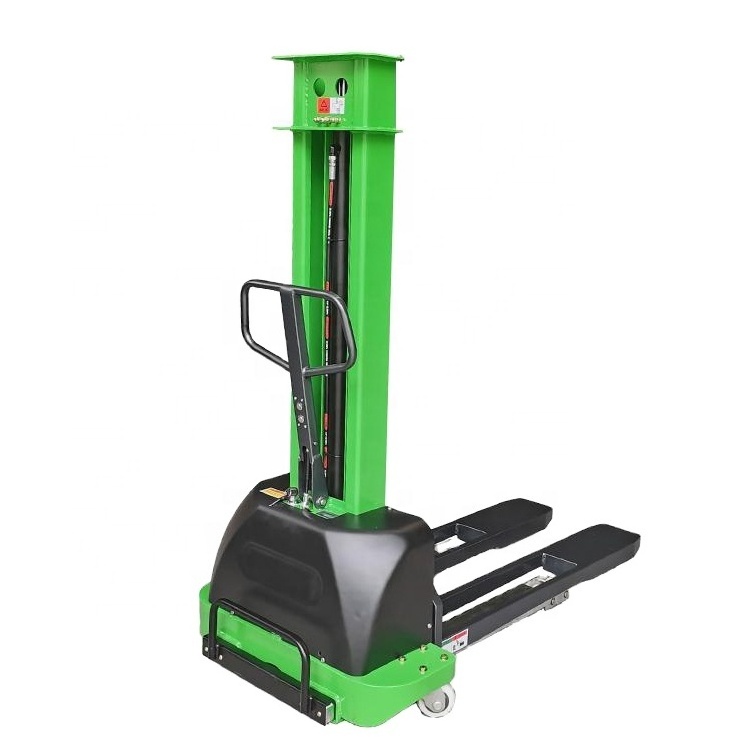

Product Name:
-
Electric stacker
-
Form of power:
-
electric
-
Rated load:
-
1000kg
-
Load centre distance:
-
500mm
-
Distance between forks:
-
685mm
-
Fork length:
-
1195mm
-
Fork lift height:
-
800/900/1000/1100/1200/1300mm
-
Low Overall Height:
-
1166/1266/1366/1466/1566/1666mm
-
High overall height:
-
1844/2044/2244/2444/2644/2844mm
-
Wheelbase:
-
974mm
Quick Details
-
Min. Lifting Height:
-
81mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
VOHOBOO
-
Fork Length:
-
253mm
-
Fork Width:
-
1650mm
-
Overall Dimensions:
-
Customized
-
Weight (KG):
-
382 kg
-
Product Name:
-
Electric stacker
-
Form of power:
-
electric
-
Rated load:
-
1000kg
-
Load centre distance:
-
500mm
-
Distance between forks:
-
685mm
-
Fork length:
-
1195mm
-
Fork lift height:
-
800/900/1000/1100/1200/1300mm
-
Low Overall Height:
-
1166/1266/1366/1466/1566/1666mm
-
High overall height:
-
1844/2044/2244/2444/2644/2844mm
-
Wheelbase:
-
974mm
Product Description
※Moved with the vehicle, one button on board, easy and convenient to operate.
※Semi-electric self-loading stacker,electric lift and hand-push movement, more economical.
※Fully electric self-loading stacker, electric lift, electric movement, saves energy and improves efficiency.
Product Details
Specification
|
Attributes
|
1.1
|
Model number
|
|
|
VOHOBOO
|
|
|
1.2
|
Form of power
|
|
|
Full electric
|
|
|
1.3
|
Rated load
|
Q
|
kg
|
1000
|
|
|
1.4
|
Load centre distance
|
C
|
mm
|
500
|
|
|
1.5
|
Distance between forks
|
W3
|
mm
|
685
|
|
|
1.6
|
Fork length
|
L2
|
mm
|
1195
|
|
|
1.7
|
Type of operation
|
|
|
pedestrian
|
|
Wheels
|
2.1
|
Wheel type (front/rear)
|
|
|
Super Polyurethane
|
|
|
2.2
|
Drive Wheel / Load Bearing Wheel / Intermediate Wheel Quantity
|
|
Set
|
2001/2/2
|
|
|
2.3
|
Drive wheel size
|
|
mm
|
Φ250×74
|
|
|
2.4
|
Load-bearing wheel size
|
|
mm
|
φ80×60
|
|
|
2.5
|
Intermediate Wheel
|
|
mm
|
Φ65×30
|
|
Size
|
3.1
|
Fork lift height
|
H
|
mm
|
800/900/1000/1100/1200/1300
|
|
|
3.2
|
Low Overall Height
|
H1
|
mm
|
1166/1266/1366/1466/1566/1666
|
|
|
3.3
|
High overall height
|
H2
|
mm
|
1844/2044/2244/2444/2644/2844
|
|
|
3.4
|
Fork height from the ground
|
H3
|
mm
|
81
|
|
|
1.5
|
Wheelbase
|
L0
|
mm
|
974
|
|
|
3.6
|
Overall length
|
L1
|
mm
|
1650
|
|
|
3.7
|
Outrigger length
|
L3
|
mm
|
771
|
|
|
3.8
|
Centre wheel position
|
L4
|
mm
|
177
|
|
|
3.9
|
Hitch safety zone
|
L5
|
mm
|
≤130
|
|
|
3.1
|
Body Thickness
|
L6
|
mm
|
409
|
|
|
3.11
|
Body width
|
W
|
mm
|
658
|
|
|
3.12
|
Front Wheelbase
|
W1
|
mm
|
518
|
|
|
3.13
|
Fork width
|
B
|
mm
|
253
|
|
|
3.14
|
Minimum turning radius
|
Wa
|
mm
|
1173
|
|
Performance
|
4.1
|
Maximum travelling speed (turtle speed/full load)
|
|
km/h
|
0.5/3.0
|
|
|
4.2
|
Climbing degree (full load/no load)
|
|
%
|
5月10日
|
|
Electrical configuration
|
5.1
|
Drive motor
|
|
kW
|
DC 0.6
|
|
|
5.2
|
Lifting motor
|
|
kW
|
DC 2.2
|
|
|
5.3
|
Battery voltage
|
|
V
|
48（lithium battery）
|
|
|
5.4
|
Battery capacity
|
|
Ah
|
15
|
|
Weight
|
6.1
|
Battery weight
|
|
kg
|
5
|
|
|
6.2
|
Self-weight (including battery)
|
|
kg
|
382
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
