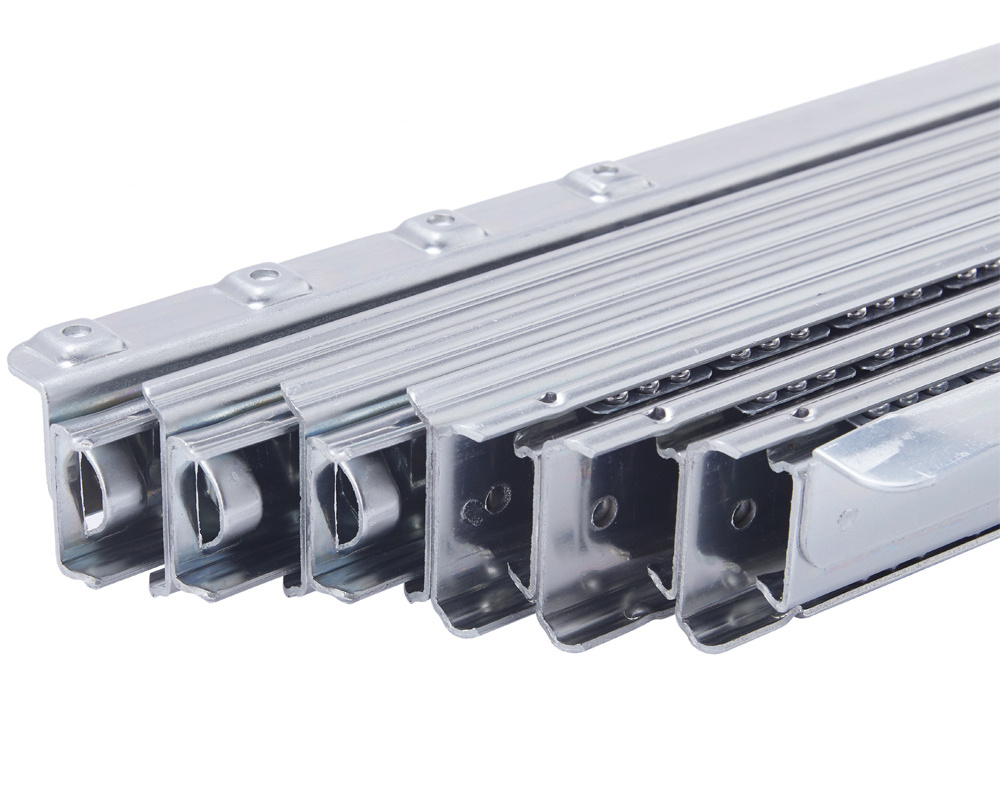

7 Sections Dining Table Mechanism Pull Out Drawer Slide Rail Ball Bearing Transformer Table Slide

7 Sections Dining Table Mechanism Pull Out Drawer Slide Rail Ball Bearing Transformer Table Slide

FOB Reference Price: Get Latest Price

≥100 Pieces

US $17.56

≥300 Pieces

US $16.23

≥1000 Pieces

US $14.49

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Material:: 2.0mm Cold-Roll Steel

Place of Origin:: Guangdong, China

Brand Name:: WALITON

Model Number:: WLT-T47011

Usage:: MULTIFUNCTIONAL Furniture Transformer Table

PRODUCT NAME:: 7-Fold Heavy Duty Transforming Table Slide

AVAILABLE SECTION LENGTH:: 300, 350, 400,450,500mm

EXTENSION TRAVEL:: Over-Travel [Custom-Made available]

DRAWER SLIDE INSTALLATION CLEARANCE:: 58mm

DRAWER SLIDE CROSS-SECTION WIDTH:: 47mm

FINISH:: Galvanized Steel

SPECIAL FEATURES:: Heavy duty ball bearing multi-sections slider

DWAWER SLIDE MATERIAL THICKNESS:: 2.0*2.0mm

LOADING RATE:: 80KG(176LBS)/1.5m

CYCLE TESTING:: 30000

Quick Details

Application:: Kitchen, Home Office, Dining, Apartment, small dining table, small kitchen table, transformer table, dining tables for small spaces, tables set, transforming table, slide out table, table slides hardware

Design Style:: Contemporary

Type:: Ball bearing heavy-duty slide

Material:: 2.0mm Cold-Roll Steel

Place of Origin:: Guangdong, China

Brand Name:: WALITON

Model Number:: WLT-T47011

Usage:: MULTIFUNCTIONAL Furniture Transformer Table

PRODUCT NAME:: 7-Fold Heavy Duty Transforming Table Slide

AVAILABLE SECTION LENGTH:: 300, 350, 400,450,500mm

EXTENSION TRAVEL:: Over-Travel [Custom-Made available]

DRAWER SLIDE INSTALLATION CLEARANCE:: 58mm

DRAWER SLIDE CROSS-SECTION WIDTH:: 47mm

FINISH:: Galvanized Steel

SPECIAL FEATURES:: Heavy duty ball bearing multi-sections slider

DWAWER SLIDE MATERIAL THICKNESS:: 2.0*2.0mm

LOADING RATE:: 80KG(176LBS)/1.5m

CYCLE TESTING:: 30000

Specification

* Configuration: Under-Mount
* Max Drawer Load: 180 lbs.
* Section Length: 250-600mm

* Section Numbers: (Custom-Made) * Extension Length: 1000-3000mm * Level of Travel: Full-Extension
* Method of Disconnect: Non-Disconnect
* Available Finish: Clear Zinc , Black Zinc, and White Electrocoat
* Available Lengths: (Custom-Made)

THE PRODUCTS SPECIFICATIONS
Product Name	7-Section Transforming Table Slide Rails
Item No.	WLT-T47011
Drawer Slide Rail Material	Cold Rolled Steel
Drawer Slide Section Steel Thickness	2.0 x 2.0 mm
Drawer Slide Rail Load Rate	80kgs / 176lbs [ meet or exceed ANSI performance standards as established by BIFMA, BHMA and KCMA.]
Table Slide Available SECTION Length	350mm, 400mm, 450mm, 500mm, 550mm, 600mm
Module	Mutiple Secitons Extension Opening
Mounting	Side mount and L- bracket bottom/top mounting
Disconnect	Non Disconnectable
Hole Pattern	45mm
Type	Heavy Duty Ball Bearing Cold Rolled Steel Drawer Slide Rail
Travel	Over Travel
Finish	Galvanized Steel
Drawer Slide Rail Height	1.85" [47mm]
Drawer Slide Rail Packaging	Bulk Pack: 1 pair per carton [available pallet bulk packaging]
Feature	• Mutiple sections extension table slide • Heavy duty with non-disconnectable for more safe • Steel ball bearing moving smoothly and quietly • Non-Disconectable slide members with bent steel stopper for safety
Applications	Extendable table slides for small dining table,small kitchen table,tables set,dining tables for small spaces,space saving dining table
