Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
T-DA
-
Model Number:
-
PG22K323-BL2230
-
Torque:
-
1-150NM
Quick Details
-
Speed(RPM):
-
5~1500rpm
-
Continuous Current(A):
-
1.2(A)
-
Efficiency:
-
IE 1
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
T-DA
-
Model Number:
-
PG22K323-BL2230
-
Torque:
-
1-150NM
Details Images

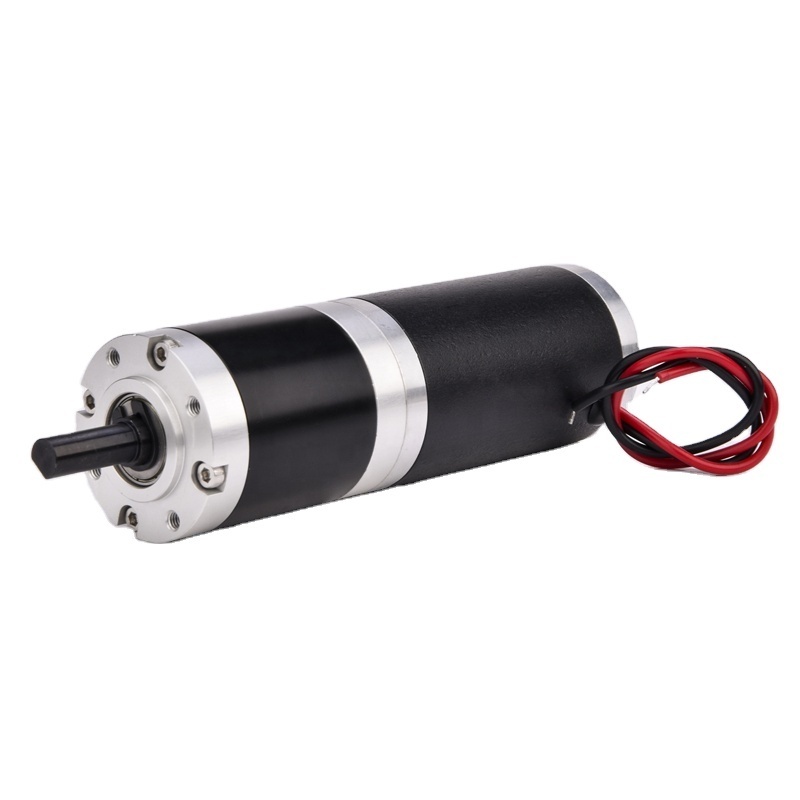

PG22K323-BL2230
Technical Specifications
|
Type
|
PG22K323-BL2230
|
|
Rated voltage (VDC)
|
12
|
|
No-load current (A)
|
0.16
|
|
No-load speed (r/min)
|
31
|
|
Rated current (A)
|
0.4
|
|
Rated speed (r/min)
|
23
|
|
Rated torque (N.m)
|
0.76
|
|
Output power (W)
|
1.8
|
Note:
The technical specifications just for reference, detailed configuration can according to customer requirements, such as reduction ratio, motor specifications(customer specified or recommend by us),shaft specifications(circular,single flat position,double flat position,slot,screw thread, etc), all can be customized.
Gearbox specifications
|
Number of
gear trains
|
Reduction ratio
|
Gearbox length
(mm)
|
Processing technology of gears
|
|
1
|
4/5
|
22.2
|
CNC
|
|
2
|
13/18/21
|
27.3
|
|
|
3
|
49/56/67/77/88
|
32.3
|
|
|
4
|
181/207/246/282/311/323/370
|
37.4
|
|
Note: The box for zinc alloy die casting molding, the gear is processing by hobbing, no powder metallurgy, high strength, high efficiency, long service life.
Dimensions
Note: The dimensions just for reference. all the specifications can be customized.
What can we do for you?
We Are Supplying FOUR Categories of Gear Motors:
1.DC spur gear motors
2.DC planetary gear motors
3.DC flat gear motors
4.DC worm gear motors
