Quick Details
-
Place of Origin:
-
Shandong, China
-
Precision Rating:
-
P0
-
Material:
-
Bearing Chrome steel GCr15,
-
Section Shape:
-
Rectangular
-
Grade:
-
10#,45#,12CrMo,15NiCuMoNb5,16Mn
-
Special Pipe:
-
Thick Wall Pipe
-
Application:
-
Structure Pipe
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction works , Energy & Mining
-
Brand Name:
-
BSSD
-
Model Number:
-
SN511
-
Place of Origin:
-
Shandong, China
-
Precision Rating:
-
P0
-
Material:
-
Bearing Chrome steel GCr15,
-
Section Shape:
-
Rectangular
-
Grade:
-
10#,45#,12CrMo,15NiCuMoNb5,16Mn
-
Special Pipe:
-
Thick Wall Pipe
-
Application:
-
Structure Pipe

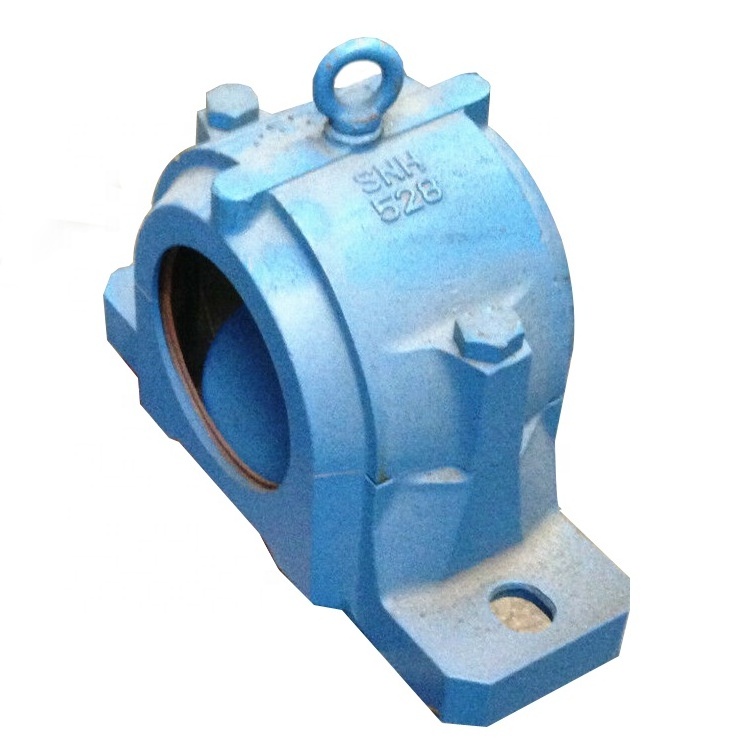

SRP220 PH 236B SNV SN517 SNL520-617 Plummer Block Bearing 100mm SN511 Bearing Housing
The housing base of SN511 is reinforced with ribs and extra material surrounding the holes for the attachment bolts in order to improve seating on the base plate. The attachment bolts can be preloaded to give better location and cannot deform the housing base or housing bore.
we can also provide you with other types of bearings, well-known brands are in stock .
1) SNL Plummer block housing
| Housing | Shaft | A | L | H | Mass |
| SNL 518-615 | 61,913 | 140 | 345 | 194 | 12,5 |
| SNL 515-612 | 63,5 | 115 | 280 | 156 | 7,00 |
| SNL 518-615 | 63,5 | 140 | 345 | 194 | 12,5 |
| SNL 515-612 | 65 | 115 | 280 | 156 | 7,00 |
| SNL 518-615 | 65 | 140 | 345 | 194 | 12,5 |
| SNL 516-613 | 68,263 | 120 | 315 | 177 | 9,50 |
| SNL 519-616 | 68,263 | 145 | 345 | 212 | 13,7 |
| SNL 516-613 | 69,85 | 120 | 315 | 177 | 9,50 |
| SNL 519-616 | 69,85 | 145 | 345 | 212 | 13,7 |
| SNL 516-613 | 70 | 120 | 315 | 177 | 9,50 |
| SNL 519-616 | 70 | 145 | 345 | 212 | 13,7 |
| SNL 517 | 74,612 | 125 | 320 | 183 | 10,0 |
| SNL 520-617 | 74,612 | 160 | 380 | 218 | 17,6 |
2) SNV block bearing:
3) SD plummer housing
| Housing No. |
Shaft dia
d1 (mm) |
Dimensions(mm) |
Housing
Wt (kg) |
Bearing
No. |
|||||||||||
|
D
H8 |
a | b | c |
g
H12 |
h
h12 |
L | W | m | n | u | v | ||||
| SD3034 | 150 | 260 | 540 | 200 | 50 | 77 | 160 | 230 | 320 | 450 | 110 | 36 | 52 | 62 | 23034K |
| SD3036 | 160 | 280 | 560 | 220 | 50 | 84 | 170 | 250 | 340 | 470 | 120 | 36 | 52 | 78 | 23036K |
| SD3038 | 170 | 290 | 560 | 220 | 50 | 85 | 170 | 250 | 345 | 470 | 120 | 36 | 52 | 82 | 23038K |
| SD3040 | 180 | 310 | 620 | 230 | 60 | 92 | 180 | 270 | 360 | 510 | 140 | 36 | 52 | 92 | 23040K |
| SD3044 | 200 | 340 | 700 | 260 | 65 | 100 | 200 | 290 | 400 | 570 | 160 | 36 | 55 | 125 | 23044K |
| SD3048 | 220 | 360 | 740 | 270 | 65 | 102 | 210 | 300 | 420 | 610 | 170 | 36 | 55 | 140 | 23048K |
