Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ASLONG
-
Model Number:
-
JGA 25-370DG
-
Torque:
-
Requests
-
Product Name:
-
25MM gear motor
-
Application:
-
Intelligent Electric Control Toy Car
-
Motor type:
-
Dc Brush Gear Motor
-
Rated Voltage:
-
6v 12v
-
Typical Applications:
-
Consumption Applications
-
Keywords:
-
electric car dc motor
-
Name:
-
DC Mini motor with toy car wheel
-
factory Processing capcity:
-
OEM
-
dc motor:
-
high speed dc motor with reducer
-
Home appliance:
-
dc motor
-
Certification:
-
ce, RoHS, FCC
Quick Details
-
Speed(RPM):
-
Variable Speed
-
Continuous Current(A):
-
0.13
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ASLONG
-
Model Number:
-
JGA 25-370DG
-
Torque:
-
Requests
-
Product Name:
-
25MM gear motor
-
Application:
-
Intelligent Electric Control Toy Car
-
Motor type:
-
Dc Brush Gear Motor
-
Rated Voltage:
-
6v 12v
-
Typical Applications:
-
Consumption Applications
-
Keywords:
-
electric car dc motor
-
Name:
-
DC Mini motor with toy car wheel
-
factory Processing capcity:
-
OEM
-
dc motor:
-
high speed dc motor with reducer
-
Home appliance:
-
dc motor
-
Certification:
-
ce, RoHS, FCC
Product Description

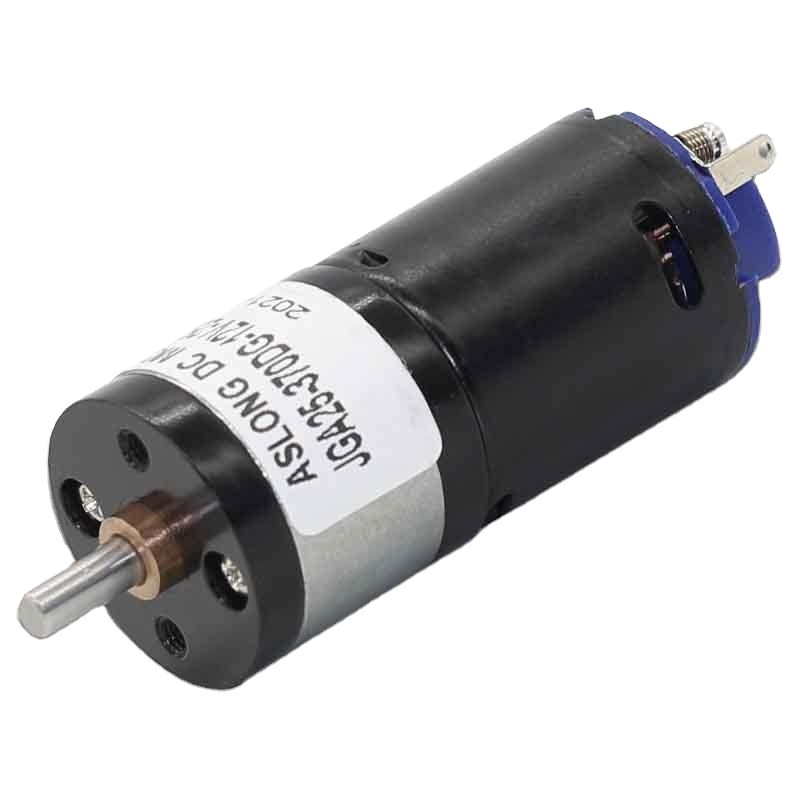

JGA25-370GB DC gear motor with encoder
1.Standard Operating Conditions:
1-9Rated Voltage: 12v 24v.
1-10Direction of Rotation:CW when viewed from output shaft side
1-11Operating Temperature and Humidity:Temperature range of -10C~+50C,Humidity range of 30%~80%.
1-12Storage Temperature:Temperature range of -20C~+60C
2.Measuring Conditions:
2-1 Motor Position:To be place t horizontally when measuring
2-2 Power Supply: Regulated DC power supply
--No load speed:2-160rpm.
--Robotics, Small Appliance, Fanner, Electric Curtain;
--Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device
--Electric motor,low noise,low current and no spark.
Ratio: 4.4 9.6 16 21.3 26 34 45 78 59 103 171 130 226 286 378 500
--- 370 Motor information : 6v 20000RPM 12v 20000rpm
Remark:
Please confirm the voltage and speed before ordering,if you don't reply within 8 hours after ordering, we will random send one for this type, hope your kindly understanding.
If you want to need other speed , please contact us , we will make it for you
Double gear-link gear box motor
long life gear box reducer
370 black motor : RuFeB magnetic title
outter brushed
shaft : DIA 4mm DIA 5mmInstall hole distance : 17mm sahft lenght can customized
Product Drawing
370 dc gear motor.
shaft length and motor speed can be customized ;
Product Paramenters
