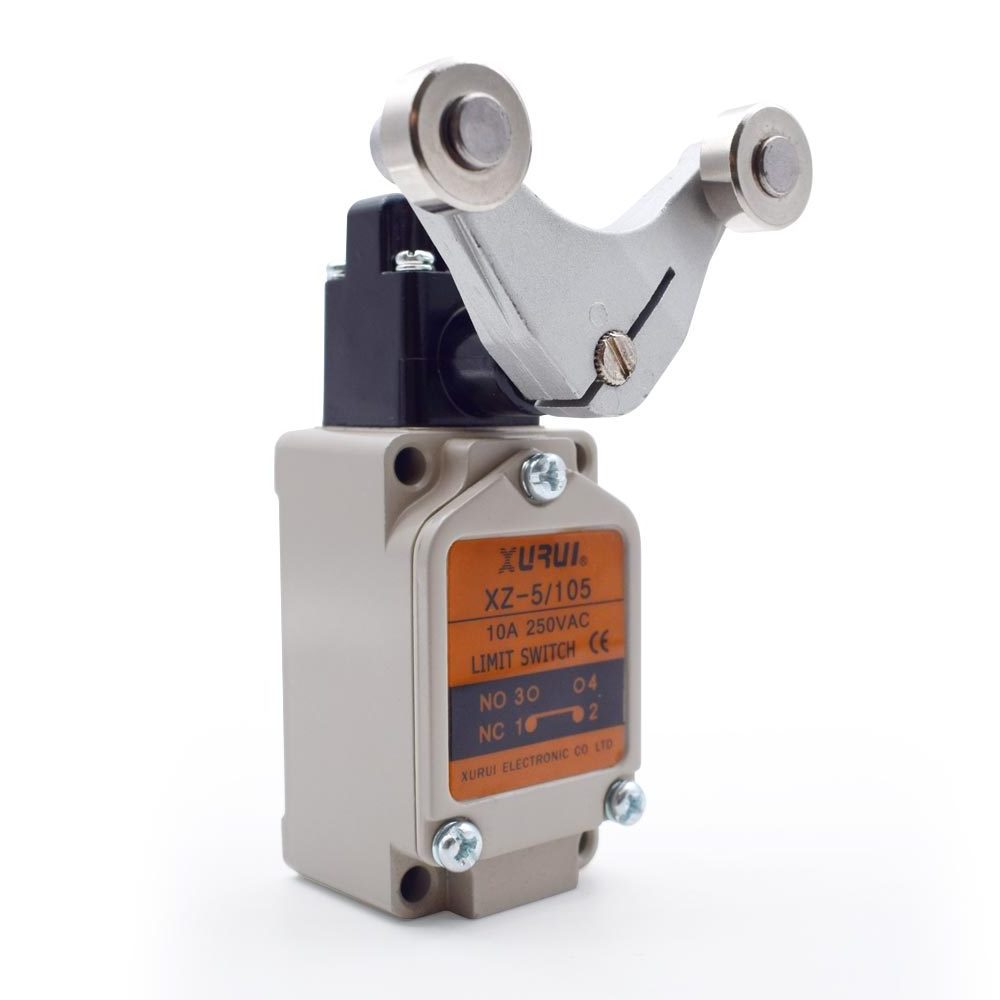

XZ-5/105 double roller lever/ two way limit switch

XZ-5/105 double roller lever/ two way limit switch

FOB Reference Price: Get Latest Price

≥10 Pieces

US $5.83

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: XZ-5/105

Protection Level:: IP66

Operating Temperature:: -10~+80 Degree

Max. Current:: 10A

Certification:: TUV CE ROHS UL CCC, ce

Type:: Double roller type

Operating speed:: 1mm-1m/s

mechanical life:: 1,000,000 times above

Electric life:: 100,000 times above

the body material:: Zinc metal

Quick Details

Max. Voltage:: 250VAC

Place of Origin:: Zhejiang, China

Brand Name:: XURUI

Model Number:: XZ-5/105

Protection Level:: IP66

Operating Temperature:: -10~+80 Degree

Max. Current:: 10A

Certification:: TUV CE ROHS UL CCC, ce

Type:: Double roller type

Operating speed:: 1mm-1m/s

mechanical life:: 1,000,000 times above

Electric life:: 100,000 times above

the body material:: Zinc metal

Item		Data
Rating load		10A/250VAC
Operating speed		1mm-50cm/s
Operating frequency	Mechanical	120times/min
	Electrical	30times/min
Insulation resistance		100MΩ(Above)DC500V
Contact resistance		25MΩ(initial value)
Withstand voltage	Non-connection wire	1000VAC
	Every terminal	1500VAC
Vibration	Misoperation	10-55Hz Amplitude 1.5mm
Impact	urable	1000m/s ²
	Misoperation	300m/s ²
Life	Electrical	100,000above
	Mechanical	1,000,000above
Protection degree		IP66
Operating temperature		-10~+80℃
Operating humidity		<85%

OF max.	1200g(11.76N)
RF min.	--
PT max.	45°
OT min.	10°
MD max.	12°
TT	55°

About Us

XURUI Electronics Co., Ltd was established in 2002, which is mainly engaged in the research, production and marketing of micro switch , limit switch , solid state relay , foot switch , toggle switch , proximity switch etc.

XURUI products have made their way to countries and regions such as the United States, Germany, South Korea, Japan, Turkey, Blegium and Egypt. The company also established sales agents as well as customer service centers in the United States, Italy, South Korea, and Egypt.

The company was approved by ISO9001, and a number of the products are also certified by other certification authorities such as CCC(China), CE(European Union), TUV(Germany),UL(US), KC(South Korea), and RoHS etc. Currently, the company boasts over fifty national patents, four patented products, and fifteen provincial-level new products etc.
