Quick Details
-
Brand Name:
-
ZHYQ
-
Model Number:
-
PT124B-502
-
Product Name:
-

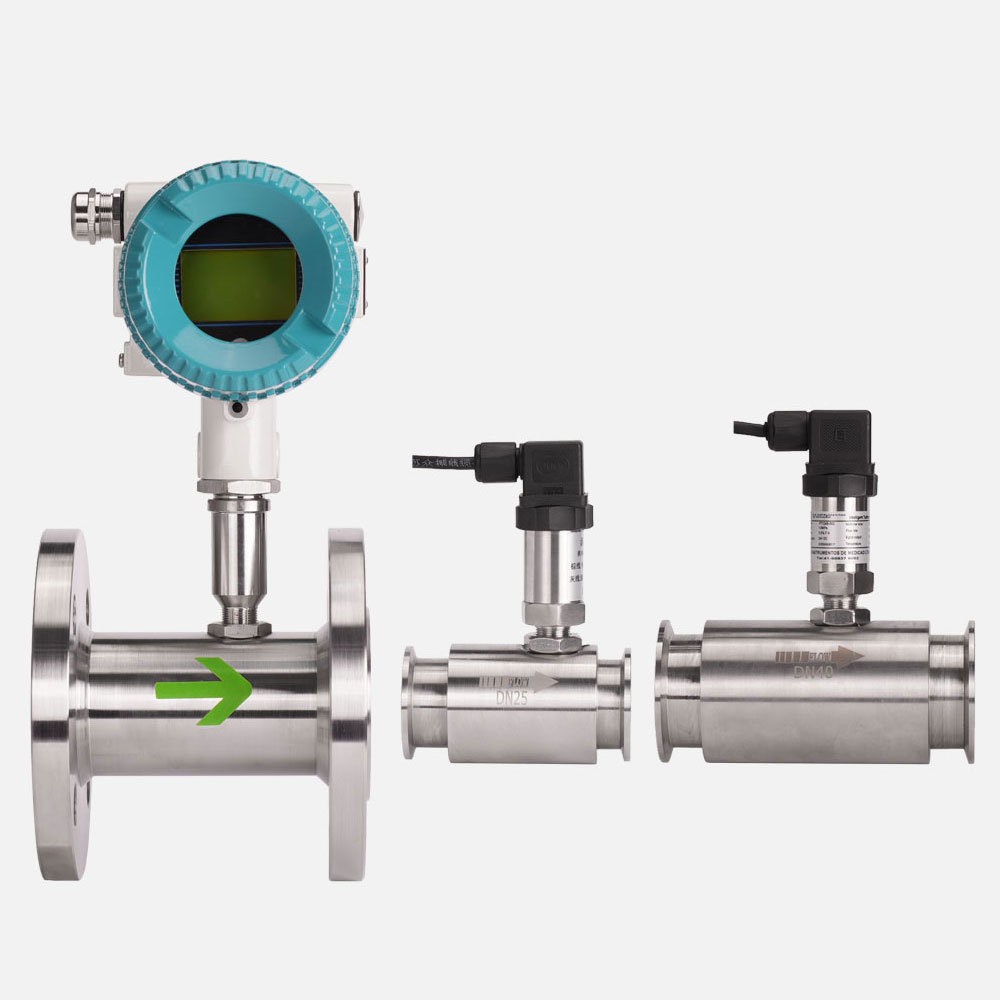

LWGY turbine flow meter
-
Precision:
-
±1%R, ±0.5%R, ±0.2%R (cumtomize)
-
Range ratio:
-
1:10 ; 1:15 ; 1:20
-
Medium temperature (℃):
-
-20~+80℃ ; -20~+120℃ ; -20~+150℃
-
Output signal:
-
Pulse frequency signal ; 4~20mADC
-
Power supply:
-
Internal&External power supply
-
Transmission distance:
-
≤1000m
-
Explosion-proof grade:
-
ExiaIICT4 or ExdIIBT6
-
Protection grade:
-
IP65
-
Delivery:
-
10-20days
Quick Details
-
Type:
-
Turbine flowmeter
-
Warranty:
-
18 months
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ZHYQ
-
Model Number:
-
PT124B-502
-
Product Name:
-
LWGY turbine flow meter
-
Precision:
-
±1%R, ±0.5%R, ±0.2%R (cumtomize)
-
Range ratio:
-
1:10 ; 1:15 ; 1:20
-
Medium temperature (℃):
-
-20~+80℃ ; -20~+120℃ ; -20~+150℃
-
Output signal:
-
Pulse frequency signal ; 4~20mADC
-
Power supply:
-
Internal&External power supply
-
Transmission distance:
-
≤1000m
-
Explosion-proof grade:
-
ExiaIICT4 or ExdIIBT6
-
Protection grade:
-
IP65
-
Delivery:
-
10-20days
Product Paramenters
|
Name
|
Turbine flowmeter
|
|
Measuring medium
|
No impurity, no strong corrosiveness, low viscosity liquid
|
|
Instrument Caliber
|
DN4-DN200
|
|
Precision
|
±1%、±0.5%
|
|
Range ratio
|
1:10;1:15;1:20
|
|
Material
|
Stainless steel 304/316L
|
|
Medium temperature (C)
|
-20~+110℃
|
|
Environmental conditions
|
Temperature (-10~+55℃), relative humidity (5%~90%),
atmospheric pressure (86~106kPa) |
|
Output
|
Pulse frequency signal
|
|
|
2-wires 4~20mADC
|
|
|
RS485
|
|
Power
|
24V DC ; 3.6V battery
|
|
Transmission distance
|
≤ 1000m
|
|
Signal interface
|
Basic type: Hessmann connector ;
Explosion-proof type: internal thread M20X1.5
|
|
Explosion-proof grade
|
Basic type: non-explosion-proof products ;
Explosion-proof type: Exd II CT6 Gb
|
|
Protection grade
|
IP65
|
Features
Installation Diagram
Real Shots
