Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Grandee
-
Dimension(L*W*H):
-
1650*2350*2350mm
-
Weight:
-
1000 KG
-
Machine name:
-
Automatic 20l bottle palletizer machine
-
Usage:
-
Beverage Packaging
-
Bottle type:
-
4 or 5 gallon
-
Material:
-
SUS304
-
Capacity:
-
900bph for 5 gallon bottle
-
Control:
-
PLC+ Touch Screen
-
Palletizing specification:
-
4*4 single row 4 barrels
-
Imported Faraco servo motor:
-
2KW
-
Stepper motor:
-
2KW
-
Switching power supply:
-
24V/3.2A
Quick Details
-
Application:
-
Food, Beverage
-
Packaging Material:
-
Plastic
-
Voltage:
-
220V 50HZ
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Grandee
-
Dimension(L*W*H):
-
1650*2350*2350mm
-
Weight:
-
1000 KG
-
Machine name:
-
Automatic 20l bottle palletizer machine
-
Usage:
-
Beverage Packaging
-
Bottle type:
-
4 or 5 gallon
-
Material:
-
SUS304
-
Capacity:
-
900bph for 5 gallon bottle
-
Control:
-
PLC+ Touch Screen
-
Palletizing specification:
-
4*4 single row 4 barrels
-
Imported Faraco servo motor:
-
2KW
-
Stepper motor:
-
2KW
-
Switching power supply:
-
24V/3.2A
GRANDEE MACHINE
is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.
Products Description

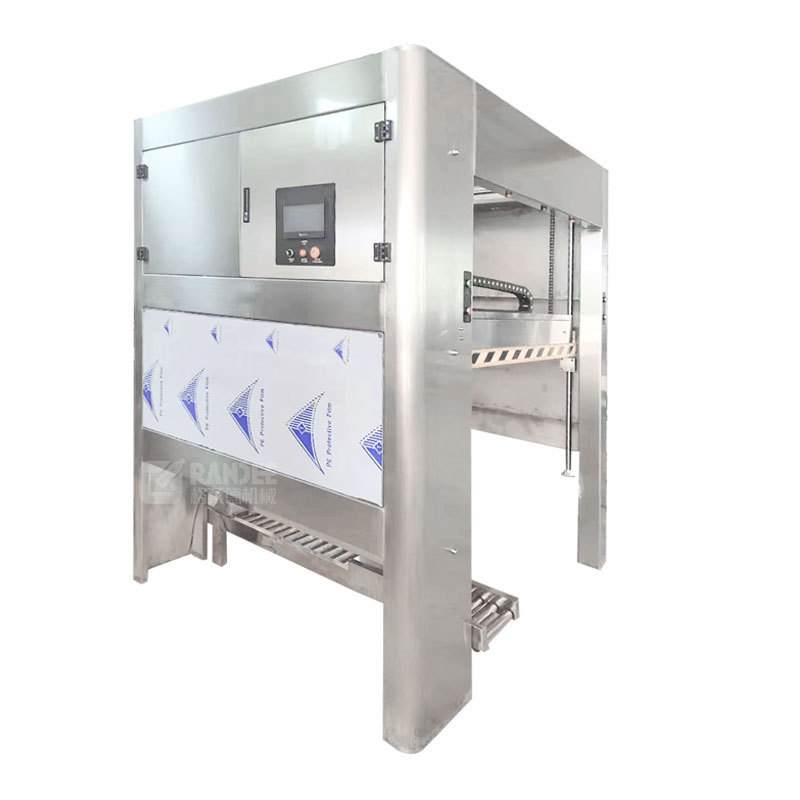

Overview of Automatic 5 Gallon Palletizer
This equipment adopts several new technologies such as servo motor drive, energy saving and high efficiency, and all actions, detection and control are controlled by microcomputer (PLC), which makes the machine more hygienic, safe and stable, and greatly reduces the occurrence of failures. The equipment is compact and occupies a lot of space. Small, simple and convenient to operate, so that the scope of application is wider. This equipment integrates automatic barrel feeding, stacking and stacking. The entire production process adopts closed operation. The whole machine is made of high-quality 304 stainless steel. The design is novel, the operation is simple, and the positioning is accurate. It is a five-gallon bottled water plant. The most ideal equipment to reduce labor and energy consumption.
Overview of Automatic 5 Gallon Palletizer
Bottle feeding , Incoming bottle induction, Automatic bucket grab, Automatic palletizing, Manual stacking
Gantry type palletizer (manual board placement) The machine is fully automatic control, manual picking and placing of trays,automatic barrel feeding, automatic barrel grabbing and stacking, manual placing of partitions, and manual stacking. During production, a tray is manually taken and placed at the designated conveying position. The large buckets of water are bagged and transported by the conveyor, and arranged in a row (4 buckets per row, which can be customized according to customers) through the pneumatic mechanism, and the bucket grabbing mechanism grabs the large buckets of water. Pick and place it on the pallet, after one layer is coded, manually pick and place a partition and put it on the st ck, and then repeat the second layer. After stacking stack, it will be automatically unloaded (forklift fork away), and then enter the pallet - stack the bucket - take the partition... and repeat the stacking operation. One-man operation, simple and easy to maintain.
Gantry type palletizer (manual board placement) The machine is fully automatic control, manual picking and placing of trays,automatic barrel feeding, automatic barrel grabbing and stacking, manual placing of partitions, and manual stacking. During production, a tray is manually taken and placed at the designated conveying position. The large buckets of water are bagged and transported by the conveyor, and arranged in a row (4 buckets per row, which can be customized according to customers) through the pneumatic mechanism, and the bucket grabbing mechanism grabs the large buckets of water. Pick and place it on the pallet, after one layer is coded, manually pick and place a partition and put it on the st ck, and then repeat the second layer. After stacking stack, it will be automatically unloaded (forklift fork away), and then enter the pallet - stack the bucket - take the partition... and repeat the stacking operation. One-man operation, simple and easy to maintain.
Main technical parameter
|
Input power supply
|
220V 50HZ
|
QGF-200
|
QGF-300
|
QGF-450
|
QGF-600
|
QGF-900
|
QGF-1200
|
||||||
|
Imported Faraco servo motor
|
2KW
|
200
|
300
|
450
|
600
|
900
|
1200
|
||||||
|
Stepper motor
|
2KW
|
|
|
|
|
|
|
||||||
|
Installed Power
|
4KW
|
|
|
|
|
|
|
||||||
|
Capacity
|
300-900bph
|
|
|
|
|
|
|
||||||
|
Switching power supply
|
24V/3.2A
|
|
|
|
|
|
|
||||||
|
Dimension
|
1650*235*2350mm
|
3200*1200*2300
|
3900*1200*2300
|
5000*1500*2300
|
6200*18*2300
|
7970*1800*2700
|
10780*2000*2700
|
||||||
|
Weight
|
1000kgs
|
1500
|
3000
|
3500
|
4500
|
5500
|
7500
|
||||||
|
Palletizing specification
|
4*4 single row 4 barrels
|
|
|
|
|
|
|
||||||
|
Material of machine frame
|
SUS304 3.0mm thickness
|
|
|
|
|
|
|
||||||
|
NAME
|
BRAND
|
AREA
|
|
PLC
|
Siemens
|
Germany
|
|
INVERTER
|
Siemens
|
Germany
|
|
CONTACTOR
|
Siemens
|
Germany
|
|
TOUCH SCREEN
|
Siemens
|
Germany
|
|
INVERTER
|
Siemens
|
Germany
|
|
MOTOR
|
ABB
|
SWISS
|
|
PNEUMATIC PARTS
|
FESTO
|
GERMANY
|
|
ELECTRICAL PARTS
|
SCHNEIDER
|
FRANCE
|
For more information, please feel free to contact us to
send an inquiry
!
Turnkey Solution
1.Decapping machine 2. bottle interior and exterior washing machine 3. 5 gallon washing filling capping machine 4. Sleeve shrink labeling machine 5. Bag packing machine 6. Palletizer
