Quick Details
-
Max. Loading Capacity:
-
600kg
-
Weight (KG):
-
1600 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GouFeng
-
Voltage:
-
220/380/450v
-
Dimension(L*W*H):
-
2700*1200*1900mm
-
Power (kW):
-
11 kW
-
Warranty of core components:
-
18 months
-
Mixer Material:
-
SS304,SS316,Carbon steel
-
Mixer color:
-
Blue,green,,gray,stainless steel original color or optional
-
Rotate spped:
-
29~35 Rpm
-
Service:
-
24 hours hot line
-
Control system:
-
manual,pneumatic control,semi-auto
-
Machine Type:
-
Mixer Kneader
-
Company history:
-
20years
-
Product name:
-
1000kg horizontal powder blender industrial ribbon blade mixer
-
Inlet size:
-
500mm
-
Outlet size:
-
300mm
Quick Details
-
Barrel Volume (L):
-
1000 L
-
Max. Loading Volume (L):
-
600 L
-
Range of Spindle Speed(r.p.m):
-
8 - 25 r.p.m
-
Max. Loading Capacity:
-
600kg
-
Weight (KG):
-
1600 KG
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GouFeng
-
Voltage:
-
220/380/450v
-
Dimension(L*W*H):
-
2700*1200*1900mm
-
Power (kW):
-
11 kW
-
Warranty of core components:
-
18 months
-
Mixer Material:
-
SS304,SS316,Carbon steel
-
Mixer color:
-
Blue,green,,gray,stainless steel original color or optional
-
Rotate spped:
-
29~35 Rpm
-
Service:
-
24 hours hot line
-
Control system:
-
manual,pneumatic control,semi-auto
-
Machine Type:
-
Mixer Kneader
-
Company history:
-
20years
-
Product name:
-
1000kg horizontal powder blender industrial ribbon blade mixer
-
Inlet size:
-
500mm
-
Outlet size:
-
300mm

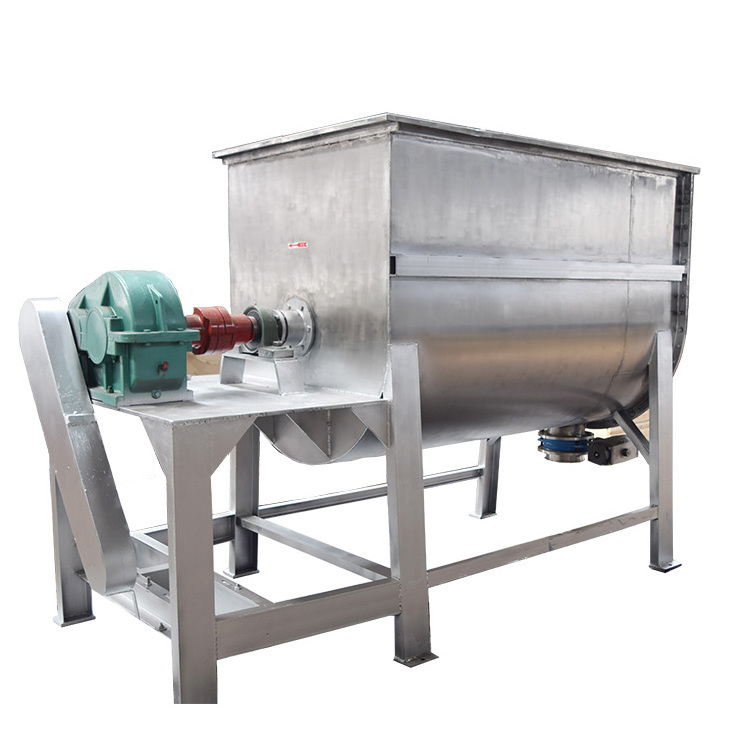

Horizontal ribbon powder mixer is a kind of machine to mixing dry materials,powders and particles.When it running,the two ribbons rotated to two oppsite directions to achieve the purpose of uniform mixing.It has high quality.
Technical parameter
|
TYPE |
CAPACITY(L/BATCH) |
POWER(KW) |
TROUGH SIZE(mm) |
|
SH-100 |
70 |
2.2 |
700*450*550MM |
|
SH-150 |
105 |
3 |
700*450*057MM |
|
SH-300 |
210 |
4 |
1000*600*750MM |
|
SH-500 |
350 |
7.5 |
1200*700*800MM |
|
SH-1000 |
700 |
11 |
1500*800*1000MM |
|
SH-1500 |
1050 |
15 |
1500*950*1300MM |
|
SH-2000 |
1400 |
18.5 |
1500*1200*1400MM |
|
SH-3000 |
2100 |
18.5 |
2200*1200*1400MM |
|
SH-4000 |
2800 |
22 |
2500*1300*1500MM |
|
SH-5000 |
3500 |
30 |
2500*1400*1600MM |
1. Strong fast mixing and large capacity;
4. Adding Liquid spray nozzle;
5. Well bearing sealing;
6. Automatic discharging valve.
It is widely used in the solid-solid (powder material) and solid-liquid (powder material & fluidity material) mixing in the field of chemical industry,foodstuff industry, etc.
