Quick Details
-
Place of Origin:
-
Henan, China
-
Production Name:
-
Magnetron Sputtering Coater
-
Application:
-
Laboratory Metal Coating
-
Chamber Size:
-
OD165xID150 x150mm
-
Power supply:
-
AC220V 10%
Quick Details
-
Warranty:
-
1 Year
-
Brand Name:
-
MTI
-
Model Number:
-
VTC-16-D
-
Place of Origin:
-
Henan, China
-
Production Name:
-
Magnetron Sputtering Coater
-
Application:
-
Laboratory Metal Coating
-
Chamber Size:
-
OD165xID150 x150mm
-
Power supply:
-
AC220V 10%
Product Description

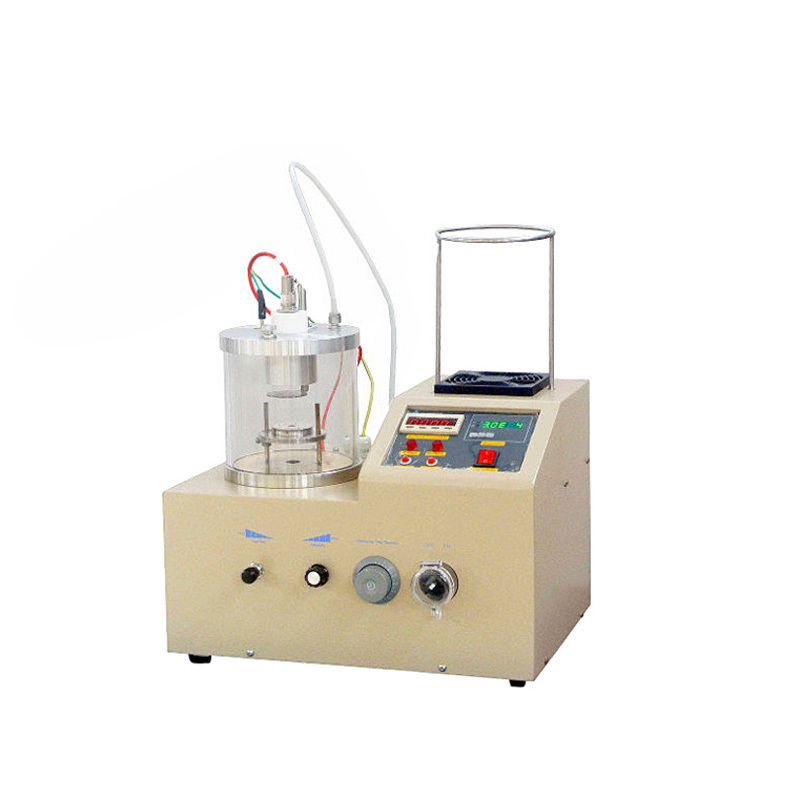

VTC-16-D is a Desktop Magnetron Plasma Sputtering Coater with a 2" target head, height adjustable sample holder. Especially suit for coating conductive gold film for SEM sample. It is a compact plasma sputtering coater designed for metallic coatings, such as gold, platinum, and silver. One 2" gold (4N) target is included.
Feature
* Specially Designed for coating conductive gold film for SEM sample
* Compact plasma sputtering coater designed for metallic coatings, such as gold, platinum, and silver
* One 2" gold (4N) target is included
* Compact plasma sputtering coater designed for metallic coatings, such as gold, platinum, and silver
* One 2" gold (4N) target is included
|
Input Voltage
|
220 VAC 50/60Hz, 200W
|
|
Output Voltage
|
500 VDC
|
|
Sputtering current
|
* 0 - 50 mA (max.) adjustable sputtering current
* Digital current meter (mA) * Over-current protection |
|
Sputtering time
|
1 -120 seconds adjustable
|
|
Specimen Chamber
|
Quartz glass tube, 165 mm OD. x 150 mm ID x 150 mm Height
|
|
Specimen Stage
|
* 2" diameter
* height adjustable, 30 - 80 mm from the sample to the target |
|
Sputtering Head
|
* 2" magnetron sputtering head
* One manually operated shutter for target protection |
|
Vacuum Pressure
|
* Digital vacuum pressure meter (Pa)
* KF25 vacuum pump connector * Ultimate vacuum pressure 1 Pa by the mechanical pump |
|
Vacuum pump
|
Rotary Vacuum Pump
|
|
Input gas
|
* One 1/4 Swagelok type tube fitting is installed for connecting the inert gas cylinder
* One metering valve is in the front panel for adjusting the input gas |
|
Target
|
* One 50mm Dia. x 0.12mm gold target is included
|
|
Product Dimension and weight
|
* 460 mm (L) × 330 mm (W) × 520 mm (H)
* 20kg |
Related Products
Packing&Shipping
Standard PLY wooden box with protective foam. Can directly delivery to any country without any certification inquiry.
