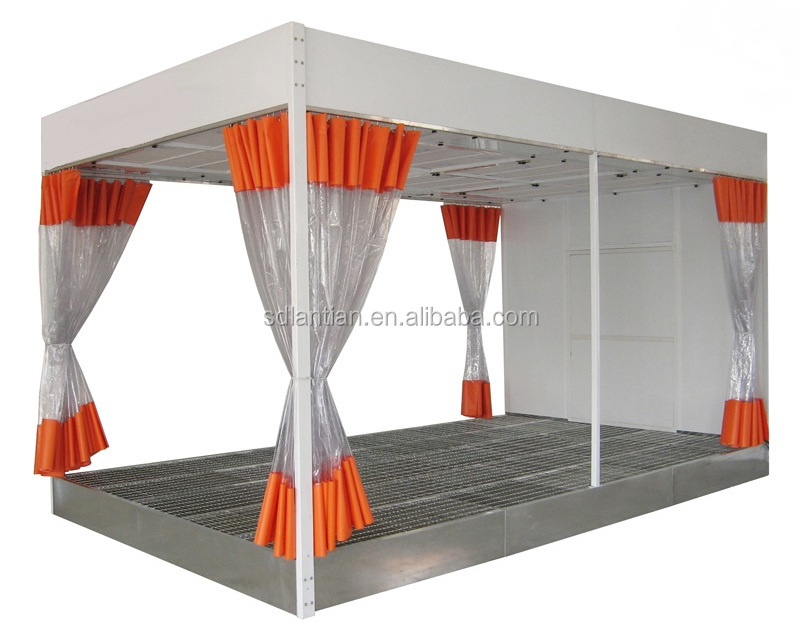

Bluesky car preparation/used car paint booth/preparation room BSH- PR8300

Product Name

Prep Station

Product Model:

BSH-PR8300

Dimensions:

Length (mm)

Width (mm)

Height (mm)

Outer Size

7,100

3,700

3,220

Inner Size

6,000

3,480

2,700

Features:

Total Power 7 KW

Electricity: 380v/ 3ph/ 50hz

1.Cabin Exhaust

Framework made of section bar,cabin body assembled by painted steel plate. It offers firm structure,nice appearance,convenient maintenance.

2. Walls

Back

EPS foam plate 50mm thick

Front

PVC curtains, 2pcs, color optional

Sides

PVC curtains, 4pcs, color optional

3. Basement

300 mm height; Floor all grid plate x 5 rows/set; Include diamond plate car ramps x 2pieces. The basement is an integrated anti-corrosive system for air exhaust, rigidity, stability and shock resistance.

4. Air Purification system

Air-Inlet Filter x 4 pieces/set; Air-Exhaust Filter(Rear Wall) x 3 pieces/set.

1. The high-quality filter screen has multiple layers, which is placed at the bottom of the plenum chamber, and supported by roof mesh.

2. The roof mesh is constructed from C-shaped steel with strong corrosion resistance, it is replaced easily, and can effectively catch the dust particle with it’s diameter of the over 5micron.

5. Air System

Fans

YDW Centrifugal Fan one unit, 5.5 KW; Air capacity 15,000m³/h; Total pressure 800Pa.

Cabinet & Air Ducts

Cabinet x 1unit for the Fan; Air Ducts x2 units.

Air Damper

Air Damper and Air Damper Actuator x 1 unit.

6. Lighting System

32pcs, 36w each, with Light Fixtures, anti-explosion design, mounted on side of ceiling, uniform an brilliant.

7. Control System

Control Panel x 1 unit.

Others

All Hardware, Fasteners, and Sealants
