Quick Details
-
Applicable Industries:
-
Wood Based Panel Industry, Rubber, Ceramic, Automotive, Papermaking
-
Place of Origin:
-
China
-
Video outgoing-inspection:
-
Not available
-
Marketing Type:
-
New product
-
Core Components:
-
Steel Belt
-
Weight (KG):
-
280 kg
-
Width:
-
200~9000mm
-
Length:
-
customize available
-
Thickness:
-
1.0/1.2/1.6/1.8/2.0/2.3/2.7/3.0/3.5 mm
-
Material:
-
Martensitic Stainless steel
-
Tensile strength, Mpa:
-
1600
-
Yield strength, Mpa:
-
1550
-
Fatigue strength, N/m㎡:
-
±630
-
Hardness, HV:
-
480
-
Elongation:
-
4
-
Welding factor:
-
0.85
Quick Details
-
Power:
-
Depends on customer's situation
-
Warranty:
-
1 Year
-
Width or Diameter:
-
200~9000mm
-
Applicable Industries:
-
Wood Based Panel Industry, Rubber, Ceramic, Automotive, Papermaking
-
Place of Origin:
-
China
-
Video outgoing-inspection:
-
Not available
-
Marketing Type:
-
New product
-
Core Components:
-
Steel Belt
-
Weight (KG):
-
280 kg
-
Width:
-
200~9000mm
-
Length:
-
customize available
-
Thickness:
-
1.0/1.2/1.6/1.8/2.0/2.3/2.7/3.0/3.5 mm
-
Material:
-
Martensitic Stainless steel
-
Tensile strength, Mpa:
-
1600
-
Yield strength, Mpa:
-
1550
-
Fatigue strength, N/m㎡:
-
±630
-
Hardness, HV:
-
480
-
Elongation:
-
4
-
Welding factor:
-
0.85

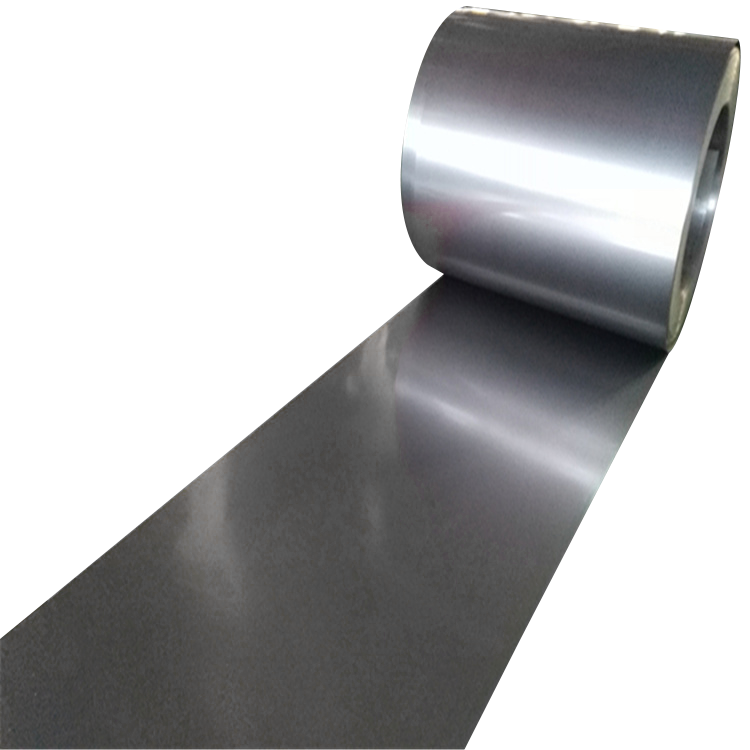

MT1650 STAINLESS STEEL BELT
MT1650 is a low carbon precipitation-hardening martensitic stainless steel belt, which can be heat treated to improve strength & hardness. It can be further processed to supper-mirror-polished belt and textured belt.
Applications:
●
Wood based panel
●
Rubber
●
Ceramic
●
Automotive
●
Papermaking
●
Etc.
Scope of supply:
●
Length - customize available
●
Width - 200 ~ 9000 mm
●
Thickness – 1.0 / 1.2 / 1.6 / 1.8 / 2.0 / 2.3 / 2.7 / 3.0 / 3.5 mm
|
MT1650
|
Tensile strength， Mpa
|
Yiled strength, Mpa
|
Fatigue strength, N/m㎡
|
Hardness, HV
|
Elongation
|
Welding Factor
|
|
Inder
|
1600
|
1550
|
±630
|
480
|
4
|
0.85
|
FAQ
Q1. Are you a trade company or a factory?
A1: We're specialized in manufacturing and supplying high strength Steel Belts for different industry applications, including wood based panel, rubber, chemical, food ... industries.
Q2. What are the advantages of your company?
A2: Mingke Steel Belt has nearly 10 years' experience.
Located in Shanghai (headquarter) and Nanjing (Factory).
The same quality level as EU. With whole production process, from start to end, all by ourselves.
10+ after-sale service offices worldwide.
Located in Shanghai (headquarter) and Nanjing (Factory).
The same quality level as EU. With whole production process, from start to end, all by ourselves.
10+ after-sale service offices worldwide.
Q3. Do you have the warranty period and installation?
A3: Warranty is six months or one year, 10+ after-sale service offices worldwide for the installation issue.
Q4. How is your packaging?
A4: Both sides wrapped with tape film, the wooden case or steel spool are available.
Q5. Can you provide the sample?
A5: Yes, the free sample can be provided for checking first.
