Quick Details
-
Application:
-
Villa
-
Place of Origin:
-
Zhejiang,China
-
Brand Name:
-
LockMaster
-
Model Number:
-
EKD365 Automatic Gate Opener
-
Motor Power::
-
50W 24VDC
-
Material:
-
Aluminum&Steel Swing gate opener
-
Certificate:
-
CE Approved
-
Actuate Speed::
-
16mm/s
-
Limit switch:
-
Magnetic
-
Max. Gate Weight:
-
350KG
-
gate opener type:
-
Swing Gate Opener motor
-
Temperature:
-
-22°C~+55°C
-
Actuate Travel:
-
385mm
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, 24 Hours technical support for Swing Gate Opener
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Videos can be provided for Swing Gate Openrer
-
Application:
-
Villa
-
Place of Origin:
-
Zhejiang,China
-
Brand Name:
-
LockMaster
-
Model Number:
-
EKD365 Automatic Gate Opener
-
Motor Power::
-
50W 24VDC
-
Material:
-
Aluminum&Steel Swing gate opener
-
Certificate:
-
CE Approved
-
Actuate Speed::
-
16mm/s
-
Limit switch:
-
Magnetic
-
Max. Gate Weight:
-
350KG
-
gate opener type:
-
Swing Gate Opener motor
-
Temperature:
-
-22°C~+55°C
-
Actuate Travel:
-
385mm
Product Description
Specification
|

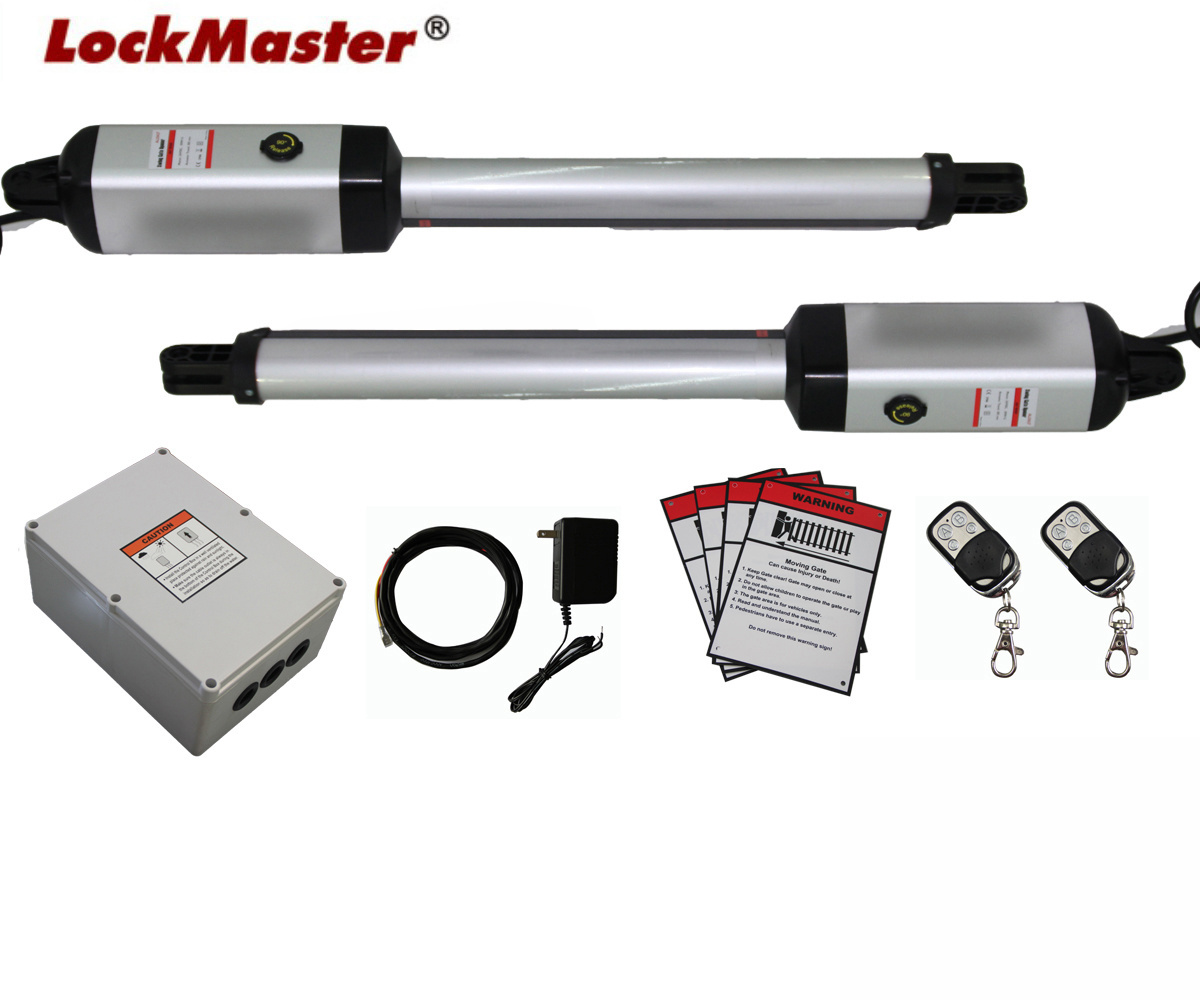

Swing Gate Opener EKD365
|
Sliding Gate Opener SFG18H
|
|
|
Motor power of each actuate
|
50W 24VDC
|
|
|
Actuate speed
|
16mm/s
|
|
|
Actuate travel
|
385mm
|
|
|
Max.gate weight
|
770lbs(350kgs)
|
|
|
Max.width of each gate
|
16FT(5M)
|
|
|
Ambient temperature
|
-22℃-55℃
|
|
|
Protection class
|
IP44
|
|
*
* Single gate mode is also available**
The EKD series dual swing gate opener is designed to make use of some agricultural place such as farm yard , ranch, pastures etc.
The EKD series automatic opener can maintain to work about one week (15-20 cycles per day) in case of AC power failure depend on sunny weather condition by the automotive or marine type battery ,solar panel as well as controller (optional ,not included).
Note: The 24V battery is not included.The automotive or marine type battery with waterproof house is recommend.
Features:
· Soft start and soft stop
·Emergency release key in case of power failure
·Reverse the gate upon first obstruction and stop upon a second sequential obstruction
· Built in adjustable auto-close (0-120 seconds)
Optional Accessories
Eletric Lock LM149
Wireless Keypad
Photocell for Gate Opener
