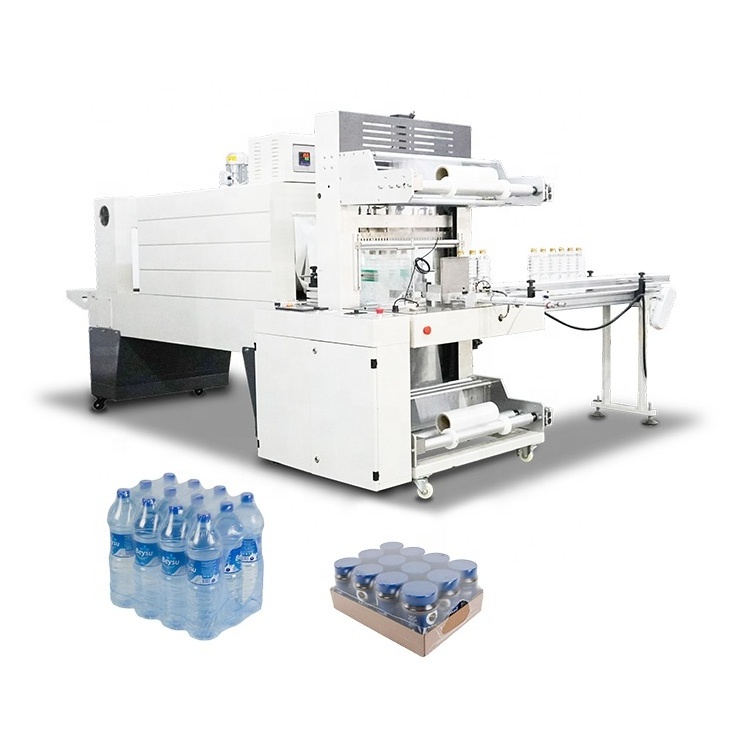

RX-880 Automatic Sleeve Shrink Wrapping Machine Web Sealer Shrink Wrapping Machines for Water
RX-880 Automatic Sleeve Shrink Wrapping Machine Web Sealer Shrink Wrapping Machines for Water
RX-880 Automatic Sleeve Shrink Wrapping Machine Web Sealer Shrink Wrapping Machines for Water
RX-880 Automatic Sleeve Shrink Wrapping Machine Web Sealer Shrink Wrapping Machines for Water
RX-880 Automatic Sleeve Shrink Wrapping Machine Web Sealer Shrink Wrapping Machines for Water
RX-880 Automatic Sleeve Shrink Wrapping Machine Web Sealer Shrink Wrapping Machines for Water
RX-880 Automatic Sleeve Shrink Wrapping Machine Web Sealer Shrink Wrapping Machines for Water
RX-880 Automatic Sleeve Shrink Wrapping Machine Web Sealer Shrink Wrapping Machines for Water

RX-880 Automatic Sleeve Shrink Wrapping Machine Web Sealer Shrink Wrapping Machines for Water

FOB Reference Price: Get Latest Price
≥1 Sets
US $8800
≥5 Sets
US $6900
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
Ruiyuan
Weight:
1100 KG
Dimension(L*W*H):
4000*1240*1760mm
Film type:
PE film
Packing speed:
20 packs per minute
Packing material:
Wooden cases packaging
Machine material:
Carbon steel or stainless steel
Guarantee days:
one year
After sales services:
Online support
Working height:
780-850MM
Installed power:
380V, 50-60Hz, 3Phase
Certification:
CE, ISO

Quick Details

Voltage:
380V, 50-60Hz, 3Phase
Power:
16KW
Place of Origin:
Zhejiang, China
Brand Name:
Ruiyuan
Weight:
1100 KG
Dimension(L*W*H):
4000*1240*1760mm
Film type:
PE film
Packing speed:
20 packs per minute
Packing material:
Wooden cases packaging
Machine material:
Carbon steel or stainless steel
Guarantee days:
one year
After sales services:
Online support
Working height:
780-850MM
Installed power:
380V, 50-60Hz, 3Phase
Certification:
CE, ISO

Cartons and big bottles with trays such as drinking bottles, pure waters bottles, beer bottles, etc. It can be connected and work with auto filling machine and labeling machine.

1. This machine can collate bottles (round or square), cans, gable cartons, and tetra cartons automatically. it can connect filling machine or labelling machine to make production line unmanned.

2. Bottles can be collated faster by a special faster and stable collating device and never fall down.

3. Adopt durable “u” shape alloyed sealing knife and saw teeth cutting knife with anti-stick Teflon coats supported by four columns, the sealing line is very strong and can use thicker pe film for heavy products.

4. Rows can be set on the touch screen. when product size changes only adjust packing size on the machine within a short time without changing any molds.

5. Adopt Siemens plc and colorful touch screen, Omron temperature controller, timer, relay, switch, and sensor.

6. Optional output roller table or conveyors are available.

7. Optional safety cover is available.

MODEL RX-880
Sealing Type Sleeve Sealer (90 Degree Infeed Conveyor)
Sealing Height 340MM
Packing Width 600MM
Packing Size Width + Height < 720MM
Max Film Roll Size 720mm (Width) X 280mm (Outer Diameter)
Power Consumption 2.4 KW
Sealing Machine Dimensions 1200 X 1240 X 1760 MM
Packing Capacity Max. 20 Packs per Minute (Depends on Product Size)
Installed Power 380V/50-60HZ/3Phase
Film Thickness 30-100 Micron (Minimum-Maximum)
Film Type PE Film
Working Height 780-850 MM
Air Pressure 0.5MPA (5 BAR)
Sealing Knife Special Durable Alloyed Sealing Knife with Anti-Stick Teflon Coats
Machine Material Carbon Steel / Stainless Steel
MODEL RYT-5030
Oven Size 1800MM (L), Entrance 600(W) X 460(H) MM
Tunnel Machine Dimensions 2800 X 1130 X 1680 MM
Rated Power Consumption Max. 16 KW
Power Supply 380V/50-60HZ/3Phase
Conveyor Chains with Rotating Silicon Coated Rods
Weight(Net/ Gross) 1010KGS/ 1100KGS  (For Reference Only, Including Sealer and Tunnel)

Ruiyuan is a technology-based enterprise, a professional manufacturer of automatic heat shrink packing machinery. In shrink wrapping industry, we have always been a pioneer in the improvements, always targeted high-quality packaging machines without compromise in quality.

We are well known for providing the highest quality in packaging appearance, machine availability and efficiency. Many machines from Ruiyuan often accompany our customers throughout their working life. Our ISO and CE certified shrink packing equipment including automatic L sealer, automatic continuous sealer, automatic horizontal flow sealer and automatic sleeve sealer, shrink tunnel, etc.

The broad scope of expertise of Ruiyuan engineers have led the company to develop an equally wide range of machinery, capable of solving virtually any shrink packaging problem. Besides the complete shrink wrapping systems, Ruiyuan also produces customized projects on infeed and discharge automation such as products package grouping, automatic feeding, paper inserting, product aligning, rotating and labeling etc. No matter where you are we have a suitable shrink packaging solution for your products!

FAQ

Q: Are you trading company or manufacturer?

A: We are a manufacturer. We have our own factory located in Ruian, Wenzhou City, Zhejiang Province, China. We have export entitlement.

Q: How fast you can delivery the machine?

A: Standard machine delivery time is 7 days, customized machine delivery time is: 20-30 days.

Q: How about machine guarantee?

A: We guarantee the machine for 1 year. It means during this period, if any defect parts (excluding heaters, sealing knife) found, we will courier new one to you for free.

Q: What type machine you produce?

A: Our ISO and CE certified shrink packing equipment including automatic L sealer, automatic continuous side sealer, automatic horizontal flow sealer and automatic sleeve sealer, shrink tunnel, conveyor belt etc. Application are widly use in beverage, food, pharmaceutical, stationary, toy, auto parts, cosmetics, printing, hardware, electrical appliances and other industry.
