Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
China
-
Brand Name:
-
Triumph
-
Model Number:
-
ULSPT-1
-
Temperature range:
-
-30℃~+105℃
-
Nominal voltage:
-
300V
-
Flammability rating:
-
VW-1
Quick Details
-
Application:
-
Heating
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Stranded
-
Insulation Material:
-
PVC
-
Place of Origin:
-
China
-
Brand Name:
-
Triumph
-
Model Number:
-
ULSPT-1
-
Temperature range:
-
-30℃~+105℃
-
Nominal voltage:
-
300V
-
Flammability rating:
-
VW-1
Product Descriptio n
|

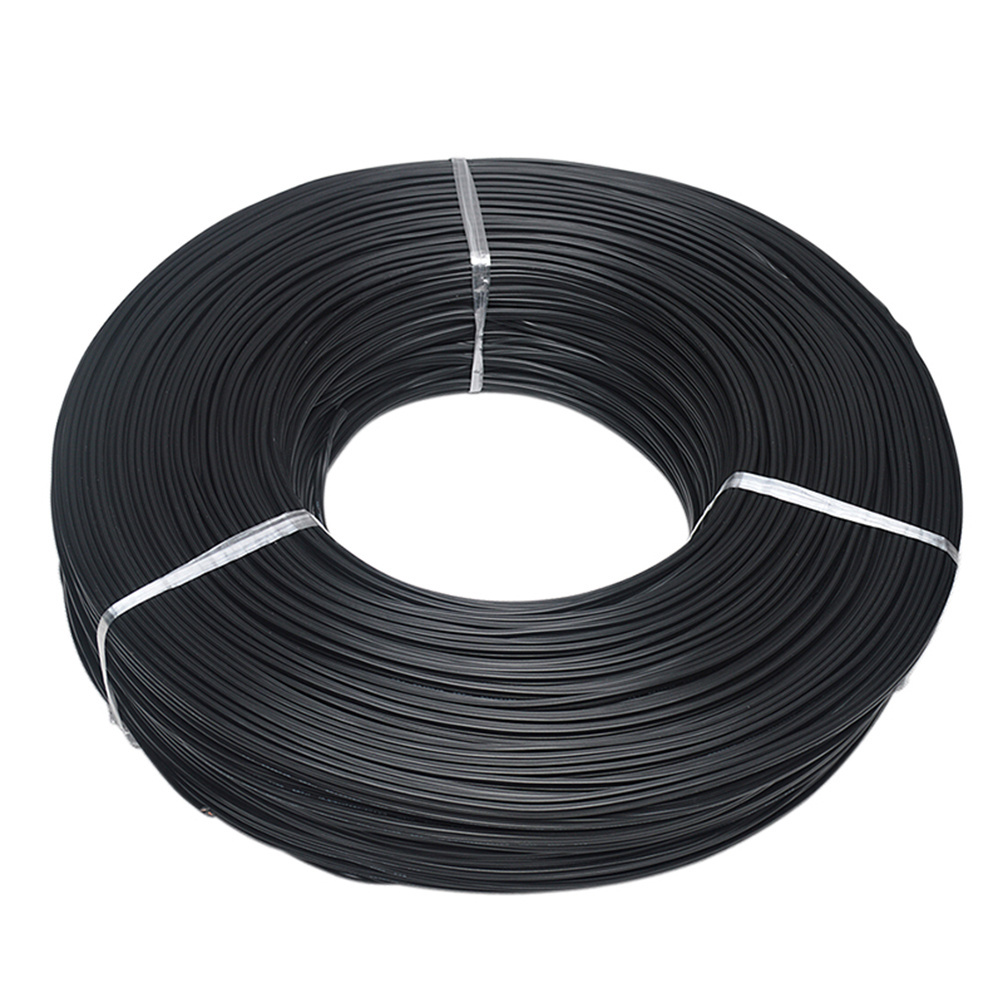

Product name |
UL SPT-1,STP-2,STP-3 |
|
Cable length per roll |
305/roll |
|
Conductor material |
bare copper |
|
Standerd |
UL Subject 62 |
|
AWG |
20 AWG- 12 AWG |
|
Temperature range |
80 ℃ 75℃ 105 ℃ |
|
Rated voltage |
3 00V |
|
OEM |
Acceptable |
|
Uses |
Lead out connecting wires for household appliances, lighting fixtures, electronic equipment, temperature sensors, etc. |
|
Advantage |
Inventory spot, one roll up purchase |
|
Sample |
Free sample, customer pays freight |
Product S pecification
|
TYPE |
AWG
|
Conductor |
With drain |
Insulation
|
Maximum Resistance at20℃ (Ω/kft) |
||
|
Cores
|
Stranding (No./mm) |
Dia.(mm) |
Thick mm |
Diameter (mm) |
|||
|
SPT-1
|
20 |
2 |
26/0.16 |
- |
0.76 |
2.60*5.10 |
34.60 |
| 3 | 1.80 | 2.60*7.50 | |||||
|
18 |
2 |
41/0.16 |
- | 2.80*5.50 |
21.80 |
||
| 3 | 2.00 | 2.80*8.10 | |||||
|
SPT-1W |
20 | 2 | 26//0.16 | - |
1.14 |
2.60*5.10 | 34.60 |
| 18 | 2 | 41/0.16 | - | 2.80*5.50 | 21.80 | ||
|
SPT-2 |
18 |
2 |
41/0.16 |
- | 3.60*7.10 |
21.80 |
|
| 3 | 2.05 | 3.60*9.30 | |||||
|
16 |
2 |
65/0.16 |
- | 3.90*7.60 |
13.70 |
||
| 3 | 2.40 | 3.90*10.20 | |||||
|
SPT-2W |
18 | 2 | 41/0.16 | - | 3.60*7.10 | 21.80 | |
| 16 | 2 | 65/0.165 | - | 3.90*7.60 | 13.70 | ||
|
SPT-3 |
18 | 2 |
41/0.16 |
- | 1.52 | 4.30*8.60 |
21.80 |
| 3 | 2.00 | 1.52 | 4.30*11.0 | ||||
| 16 | 2 |
26/0.254 |
- | 1.52 | 4.60*9.20 |
13.70 |
|
| 3 | 2.40 | 1.52 | 4.60*12.30 | ||||
| 14 | 2 | 41/0.254 | - | 2.03 | 6.00*12.00 | 8.620 | |
| 12 | 2 | 65/0.254 | - | 2.41 | 7.20*14.40 | 5.430 | |
