X Series Fusion Splicer
is high reliability, and has flexible and stable performance when aligning fibers. With the classic industrial design, user-friendly size and weight, easy operating GUI menu, it is suitable for all indoor and outdoor fiber splicing projects.
And we put the fusion splicer and some standard accessories (such as
fiber cleaver
, stripper, strap, adapter and so on) in one kit, it is very convenient for optical fiber engineering.
- Product Details
- {{item.text}}
Quick Details
-
Typical splice loss:
-
SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS: 0.04dB
-
Fibe cleaved length:
-
5-16mm (coating diameter<250um) 16mm (coating diameter:250-1000um)
-
Typical splicing time:
-
7 seconds
-
Typical heating time:
-
26 seconds
-
Display screen:
-
4.3 inch color LCD
-
Battery:
-
4400mAh pluggable Li-battery, typical 250 cycles splicing and heating
-
Power supply:
-
Input: AC100-240V(50/60HZ), output: DC 11-13.5V
-
Dimension:
-
200mm(L) * 123mm(W) * 95mm(H)
Quick Details
-
Place of Origin:
-
China
-
Diameter of cladding:
-
80-150μm
-
Diameter of coating:
-
160-900μm
-
Typical splice loss:
-
SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS: 0.04dB
-
Fibe cleaved length:
-
5-16mm (coating diameter<250um) 16mm (coating diameter:250-1000um)
-
Typical splicing time:
-
7 seconds
-
Typical heating time:
-
26 seconds
-
Display screen:
-
4.3 inch color LCD
-
Battery:
-
4400mAh pluggable Li-battery, typical 250 cycles splicing and heating
-
Power supply:
-
Input: AC100-240V(50/60HZ), output: DC 11-13.5V
-
Dimension:
-
200mm(L) * 123mm(W) * 95mm(H)
Products Description
Details Images

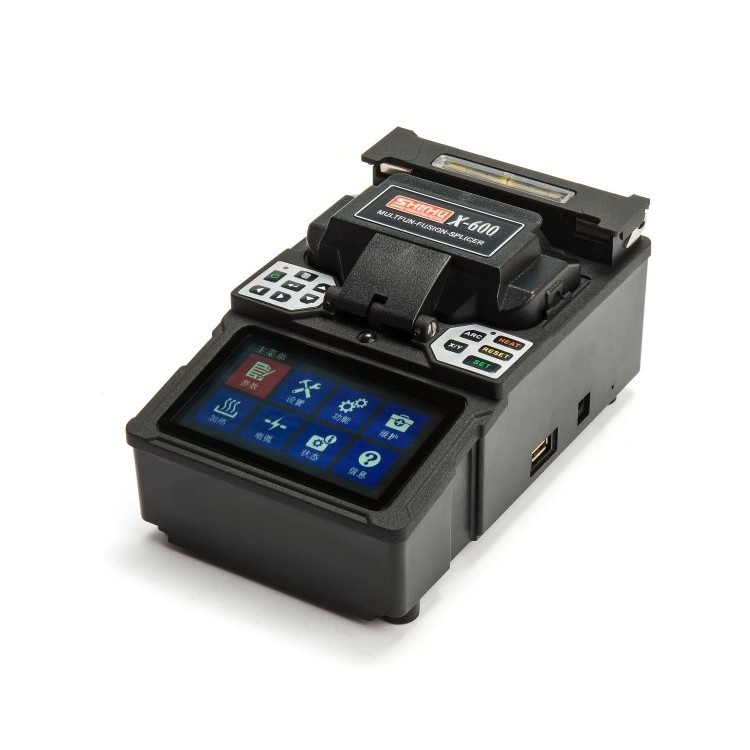

X-600 is a 4-motor fiber fusion splicer with active V-groove design, it could adjust the fiber position flexible and accurate,and it has very stable performance in harsh environment. It is specially designed for FTTX/FTTH projects.
X-800 fiber fusion splicer has flexible and stable performance when aligning fibers. It is with classic industrial design,user-friendly size and weight, easy operating GUI menu. It is suitable for both indoor and outdoor fiber splicing projects.
X-900 is a 6-motor fiber fusion splicer with the latest fiber core to core alignment technology, it has very stable performance and low fusion loss, it is suitable for different fiber optical projects, including backbone, FTTx etc.
Highlights
* High reliablility, it is designed for harsh industrial environment.X-600 is Specially designed for FTTH projects.
* Large LCD monitor and GUI menu, it is simple and easy to operate.
* Fast fusion:1s boot up, 6s fast splicing, 20s intelligent heating.
* Multi motors active V-groove design ensure high stablity of fusion process.
* Small size and light weight, easy to carry, it is suitable for outdoor and high height fiber projects.
* 4400mAh Li-battery, 220 cycles splicing and heating, operating time >5 hours, discharging time> 8 hours.
* 250 times magnification of fiber cores.
* More than 4000 times electronics discharging.
* Inductive automatic heater, not heating without fibers.
* Large LCD monitor and GUI menu, it is simple and easy to operate.
* Fast fusion:1s boot up, 6s fast splicing, 20s intelligent heating.
* Multi motors active V-groove design ensure high stablity of fusion process.
* Small size and light weight, easy to carry, it is suitable for outdoor and high height fiber projects.
* 4400mAh Li-battery, 220 cycles splicing and heating, operating time >5 hours, discharging time> 8 hours.
* 250 times magnification of fiber cores.
* More than 4000 times electronics discharging.
* Inductive automatic heater, not heating without fibers.
Application
* For carrier fiber splicing project, such as FTTH, Metro or Backbone.
* For the R&D and production of optical fiber communication and optical fiber sensor system, such as EDFA, DWDM, DVS, DTS and so on.
* Widely used for different kind fibers:SM (G.652), MM (G.651), DS (G.653), NZDS (G.655), and others.
* For the R&D and production of optical fiber communication and optical fiber sensor system, such as EDFA, DWDM, DVS, DTS and so on.
* Widely used for different kind fibers:SM (G.652), MM (G.651), DS (G.653), NZDS (G.655), and others.
Specifications
|
Model
|
X-600
|
X-800
|
X-900
|
|
Applicable fiber
|
SM (G.652), MM (G.651), DS (G.653), NZDS (G.655), EDFA, others (including G.657)
|
SM (G.652), MM (G.651), DS (G.653), NZDS (G.655), EDFA, others (including G.657)
|
SM (G.652), MM (G.651), DS (G.653), NZDS (G.655), EDFA, others (including G.657)
|
|
Diameter of cladding
|
80-150μm
|
80-150μm
|
80-150μm
|
|
Diameter of coating
|
160-900μm
|
160-900μm
|
160-900μm
|
|
Typical splice loss
|
SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS: 0.04dB
|
SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS: 0.04dB
|
SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS: 0.04dB
|
|
Return loss
|
＞ 60dB
|
＞ 60dB
|
＞ 60dB
|
|
Fibe cleaved length
|
5-16mm (coating diameter＜250um)
16mm (coating diameter:250-1000um) |
5-16mm (coating diameter＜250um)
16mm (coating diameter:250-1000um) |
5-16mm (coating diameter＜250um)
16mm (coating diameter:250-1000um) |
|
Splicing program
|
40 groups
|
40 groups
|
40 groups
|
|
Operate mode
|
Automatic/Manual
|
Automatic/Manual
|
Automatic/Manual
|
|
Auto-heating
|
Available
|
Available
|
Available
|
|
Typical splicing time
|
7 seconds
|
6 seconds
|
6 seconds
|
|
Typical heating time
|
26 seconds
|
26 seconds
|
16 seconds
|
|
Fiber magnification
|
250X (X or Y), 125X (X and Y)
|
250X (X or Y), 125X (X and Y)
|
250X (X or Y), 125X (X and Y)
|
|
Display screen
|
2 CMOS cameras,
4.3 inch color LCD monitor |
2 CMOS cameras,
4.3 inch color LCD monitor |
2 CMOS cameras,
5.0 inch color LCD monitor |
|
Records storage
|
4000 groups
|
4000 groups
|
4000 groups
|
|
Loss evaluation
|
Available
|
Available
|
Available
|
|
Tension test
|
1.8-2.2N
|
1.8-2.2N
|
1.8-2.2N
|
|
Interface
|
GUI menu interface
|
GUI menu interface
|
GUI menu interface
|
|
Battery
|
4400mAh pluggable Li-battery, typical 250 cycles splicing and heating
|
5800mAh Li-battery, typical 250 cycles splicing and heating
|
5200mAh Li-battery, typical 300 cycles splicing and heating, operating time >5 hours, discharging time> 8 hours
|
|
Power supply
|
Input: AC100-240V(50/60HZ),
output: DC 11-13.5V |
Input: AC100-240V(50/60HZ),
output: DC 11-13.5V |
Input: AC100-240V(50/60HZ),
output: DC 11-13.5V |
|
Electrodes life
|
More than 4000 ARC discharges, can be replaced conveniently
|
More than 4000 ARC discharges, can be replaced conveniently
|
More than 4000 ARC discharges, can be replaced conveniently
|
|
Ternimal
|
USB2.0 port, for uploading splicer results and upgrading software
|
USB2.0 port, for uploading splicer results and upgrading software
|
USB2.0 port, for uploading splicer results and upgrading software
|
|
Operating conditions
|
Altitude: 0-5000m,
Humidity: 0-95%, Operating Temperature: -25℃~+50℃, Storage Temperature: -40℃~+80℃, Wind speed: Max 15m/s |
Altitude: 0-5000m,
Humidity: 0-95%, Operating Temperature: -10℃~+50℃, Storage temperature -40℃~+80℃, Wind speed: Max 15m/s |
Altitude: 0-5000m,
Humidity: 0-95%, Operating Temperature: -25℃~+50℃, Storage temperature -40℃~+80℃, Wind speed: Max 15m/s |
|
Dimension
|
200mm(L) * 123mm(W) * 95mm(H)
|
160mm(L)*136mm(W)*140mm(H)
|
156mm(L) * 141mm(W) * 156mm(H)
|
|
Weight
|
1.60kg (including battery)
|
2.20kg (including battery)
|
2.45kg (including battery)
|
Accessories
Standard accessories
Carrying Box, Fiber Stripper, Cooling Tray, Spare Electrodes, Fiber Cleaver, Adapter, Strap, Drop Cable Stripper, Power Cord,Operation Mannual.
Optional accessories
Alcohol Bottle, Cleaning Brush, Pluggable Led Light, Car Charger, U Disk, Spare Blade.
Order infomation
|
PartNumber
|
Product Description
|
|
X-600
|
Handheld FTTH Fusion Splicer Kit (With Cleaver, Stripper, Adapter, Carrying Box, etc.)
|
|
X-800
|
Multi-Function Fusion Splicer Kit (With Cleaver, Stripper, Adapter, Carrying Box, etc.)
|
|
X-900
|
Multi-Function Fusion Splicer Kit (With Cleaver, Stripper, Adapter, Carrying Box, etc.)
|
Certifications
ISO9001 Quality Management System Certificate
ISO14000 Environmental Management System Certificate
ISO18000 Occupational Health And Management System Certificate
Trade Mark-JHBF
Registration for foreign trade
Certificate of Credit Rating-AAA
Network License of CWDM
Network License of DWDM
Network License of OTN
Patent- SFP optical power meter
Patent-An optical module support optical line protection
Patent-QSFP optical power meter
Software copyright- Embedded software for optical network equipment
Software Copyright-General software for Optical module
Software Copyright-SCM software for mini SFP/QSFP Optical powermeter
Software Copyright-APP for mini SFP/QSFP optical power meter
Software Copyright-NMS for optical fiber sensing equipment
Software Copyright-NMS for optical transport network fiber equipment
